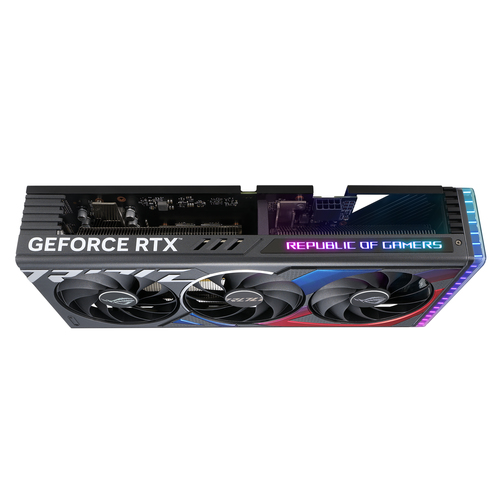

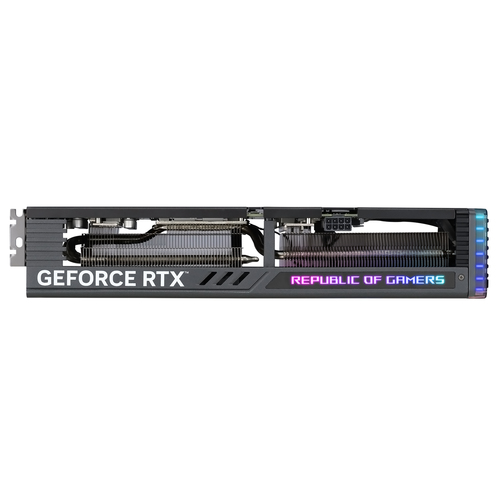

ROG -STRIX-RTX4060TI-A16G-GAMING NVIDIA GeForce RTX 4060 Ti
16 GB GDDR6
Model ROG-STRIX-RTX4060TI-A16G-GAMINGPart no. 90YV0JI2-M0NA00EAN 197105305250
45 specifications Checked today
- Weight1.19 kg
- ColourMulticolour
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 4.0
- OpenGL version4.6
Overview
- Weight
- 1.19 kg
- Colour
- Multicolour
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 4.0
- OpenGL version
- 4.6
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-STRIX-RTX4060TI-A16G-GAMING
- Part number
- 90YV0JI2-M0NA00
- EAN / UPC
- 197105305250, 4711387305249
- Also known as
- ASUS ROG -STRIX-RTX4060TI-A16G-GAMING NVIDIA GeForce RTX 4060 Ti 16 GB GDDR6
Specifications
45 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4352 |
| Processor frequency | 2550 MHz |
| Processor frequency (OC mode) | 2580 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory bandwidth (max) | 18 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Number of slots | 3.1 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Multicolour |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.19 kg |
| Length | 311.4 mm |
| Depth | 61.9 mm |
| Height | 133.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 427 mm |
| Package depth | 88 mm |
| Package height | 227 mm |
| Package weight | 1.94 kg |
| Package type | Box |
