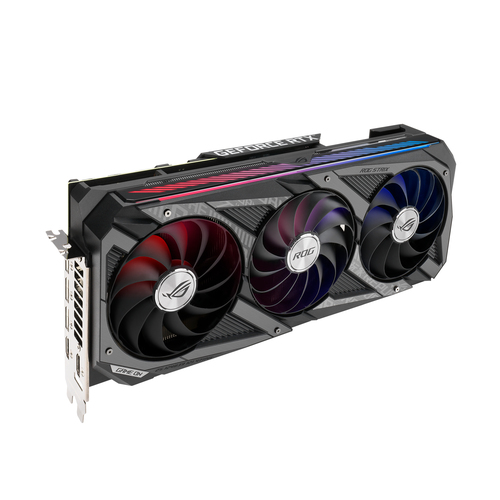

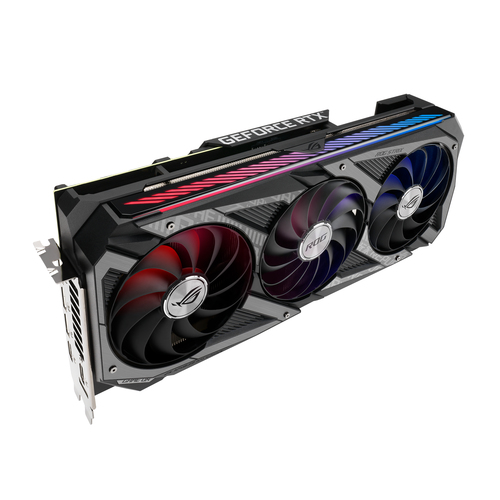

ROG -STRIX-RTX3080-O10G-GAMING NVIDIA GeForce RTX 3080
10 GB GDDR6X
Model ROG-STRIX-RTX3080-O10G-GAMINGPart no. 90YV0FA1-M0NM00EAN 4718017928786
31 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory10 GB
- Interface typePCI Express 4.0
- PhysXNo
- Power consumption (typical)850 W
- Length318.5 mm
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 10 GB
- Interface type
- PCI Express 4.0
- PhysX
- No
- Power consumption (typical)
- 850 W
- Length
- 318.5 mm
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-STRIX-RTX3080-O10G-GAMING
- Part numbers
- 90YV0FA1-M0NM00, ROG-STRIX-RTX3080-O10G-GAMING
- EAN / UPC
- 4718017928786, 192876928790, 4718017928779
- Also known as
- ASUS ROG -STRIX-RTX3080-O10G-GAMING NVIDIA GeForce RTX 3080 10 GB GDDR6X
Specifications
31 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8704 |
| Processor boost clock speed | 1905 MHz |
| Processor frequency (OC mode) | 1935 MHz |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 320 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 850 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 318.5 mm |
| Depth | 57.8 mm |
| Height | 140.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 406 mm |
| Package depth | 234 mm |
| Package height | 87 mm |
| Package weight | 2.33 kg |
