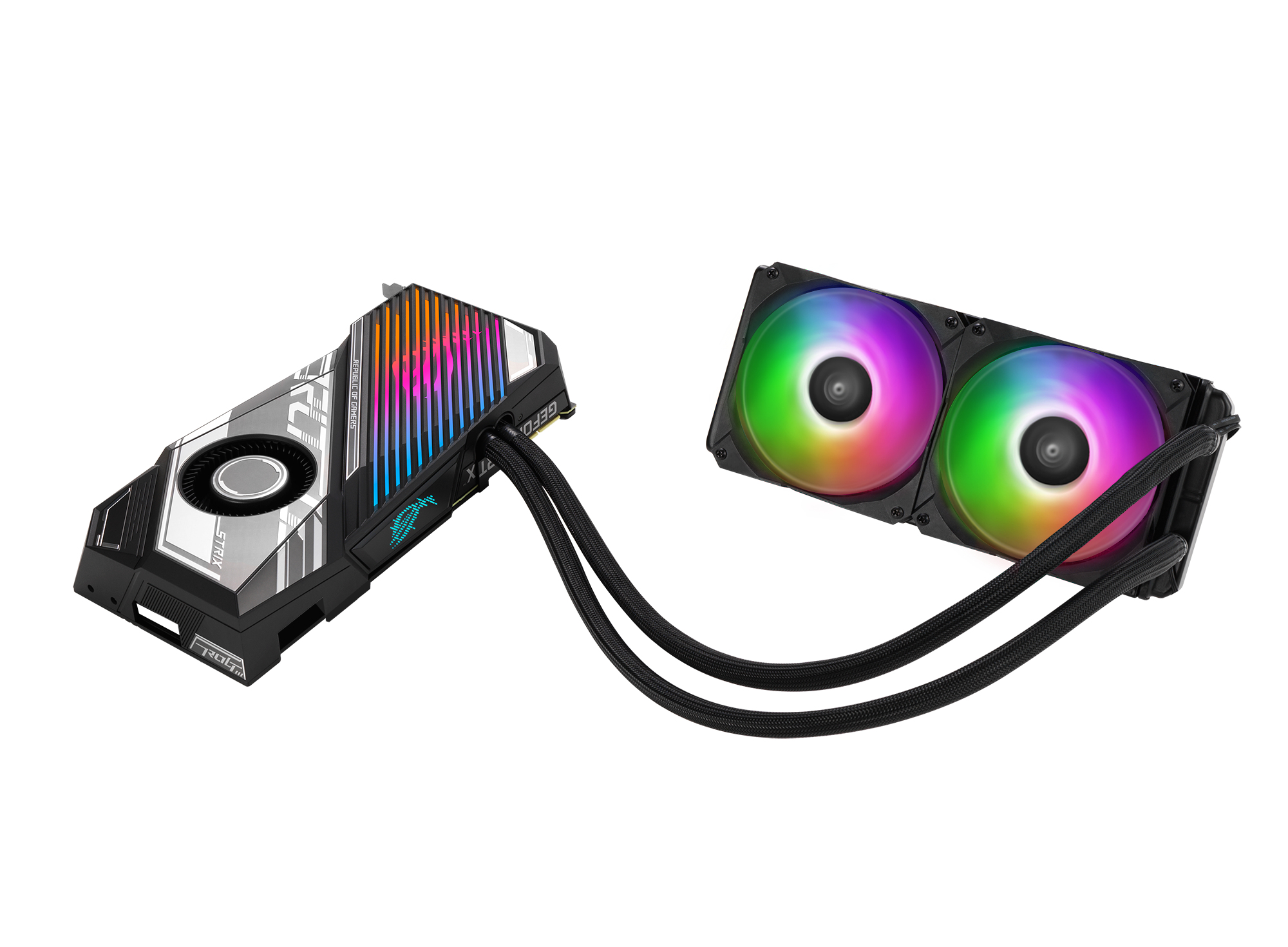

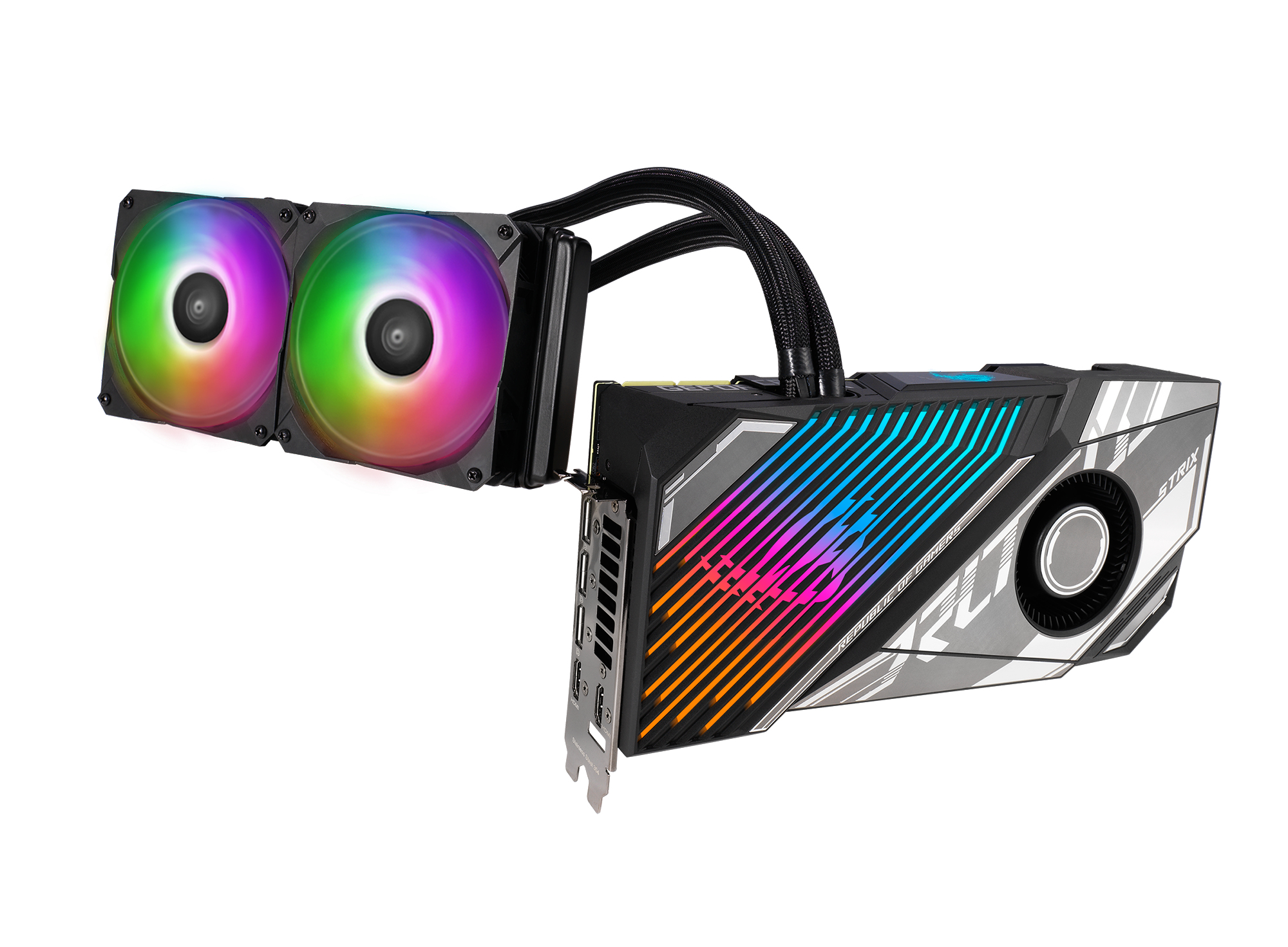

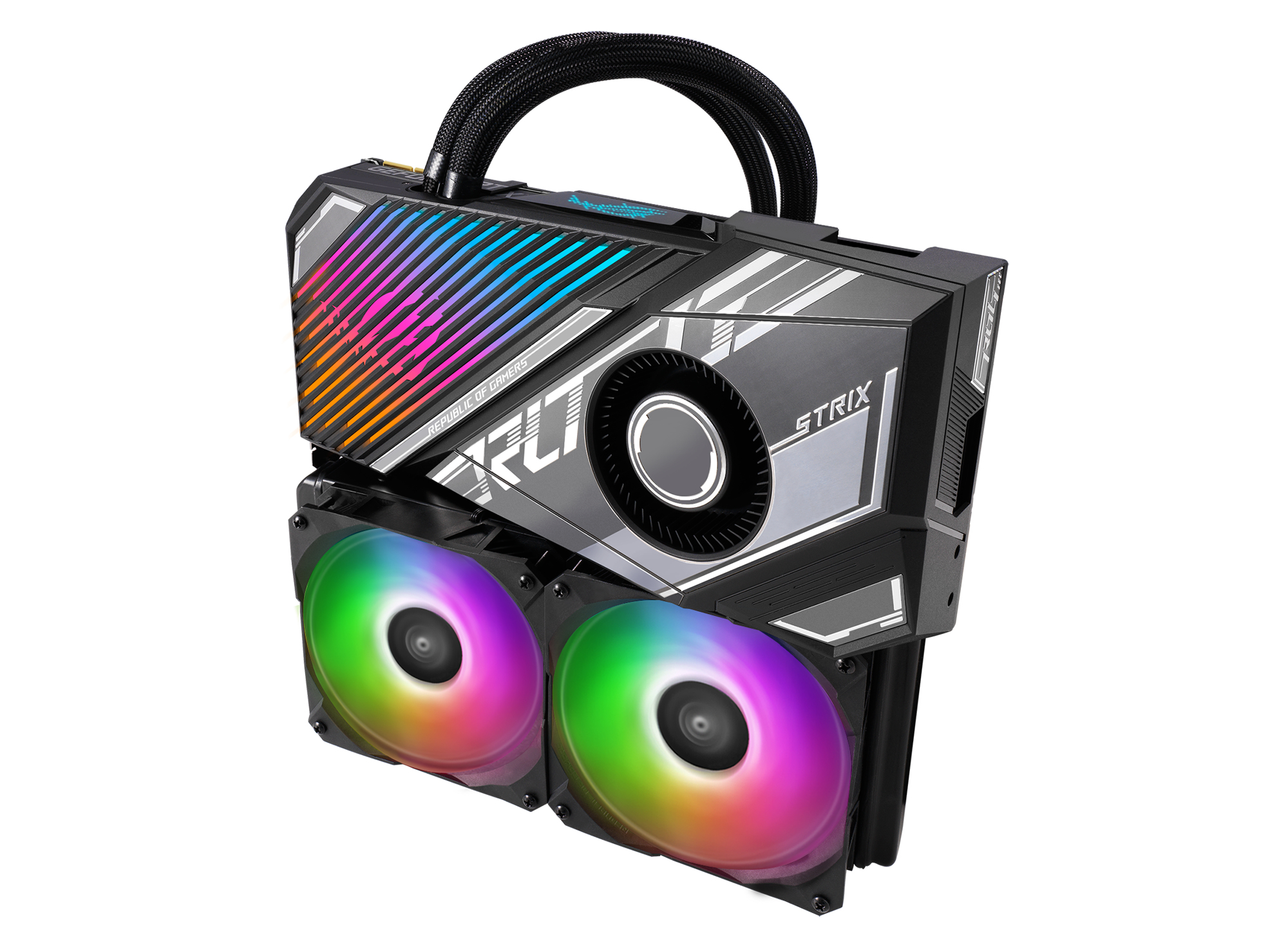

ROG -STRIX-LC-RTX3090TI-O24G-GAMING NVIDIA GeForce RTX 3090 Ti
24 GB GDDR6X
Model ROG-STRIX-LC-RTX3090TI-O24G-GAMINGPart no. 90YV0HC0-M0NA00EAN 4711081655879
47 specifications Checked today
- Weight2.47 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express 4.0
- PhysXYes
Overview
- Weight
- 2.47 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express 4.0
- PhysX
- Yes
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-STRIX-LC-RTX3090TI-O24G-GAMING
- Part number
- 90YV0HC0-M0NA00
- EAN / UPC
- 4711081655879
- Also known as
- ASUS ROG -STRIX-LC-RTX3090TI-O24G-GAMING NVIDIA GeForce RTX 3090 Ti 24 GB GDDR6X
Specifications
47 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3090 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10752 |
| Processor boost clock speed (OC mode) | 1980 MHz |
| Processor boost clock speed (Gaming mode) | 1950 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Crossfire, NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 384 bit |
| Memory bandwidth (max) | 21 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2.6 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 1000 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.47 kg |
| Length | 293 mm |
| Depth | 52 mm |
| Height | 133 mm |
| Radiator width | 27.2 cm |
| Radiator depth | 12.1 cm |
| Radiator height | 5.4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 405 mm |
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 4.14 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
