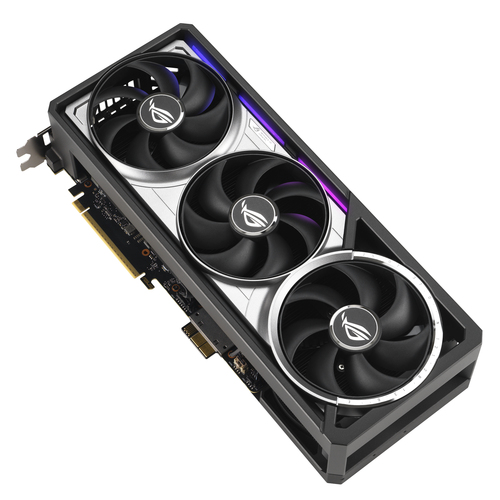

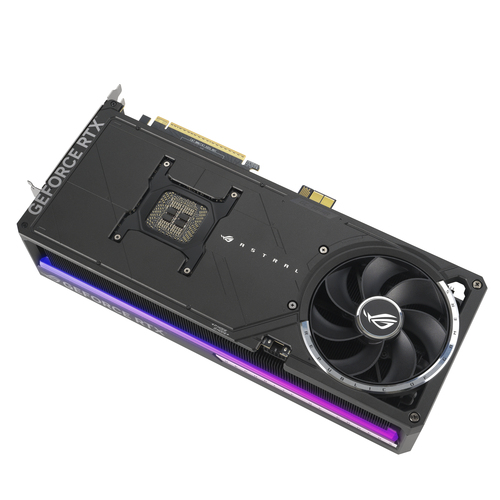

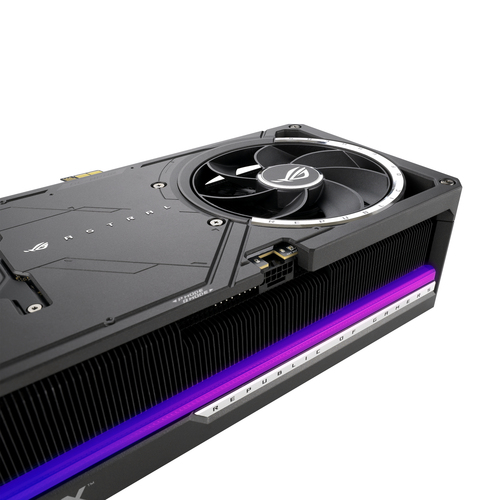

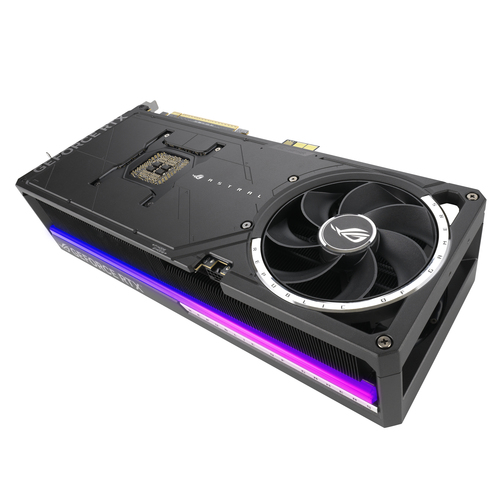

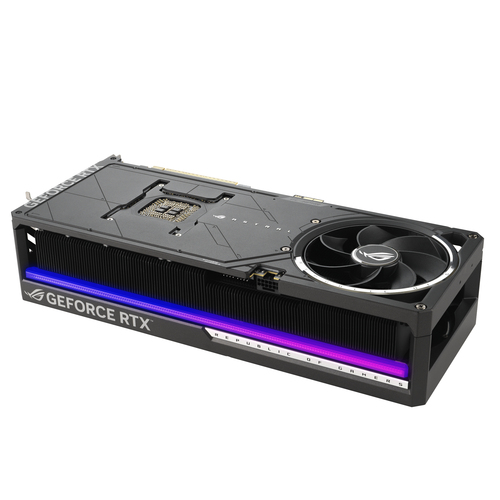

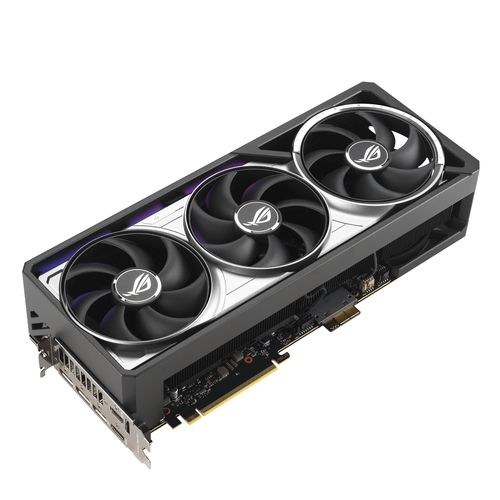

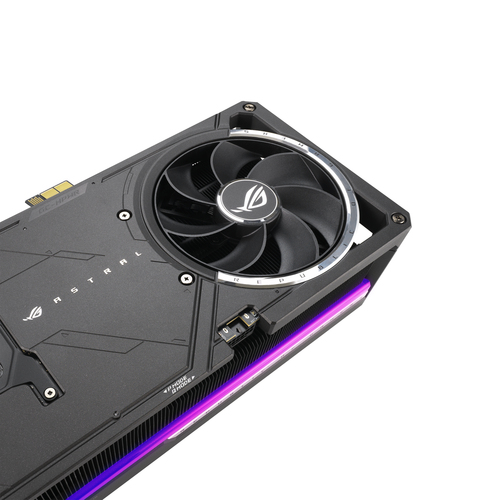

ROG-ASTRAL-RTX5090-32G-BTF-GAMING NVIDIA GeForce RTX 5090
32 GB GDDR7
Model ROG-ASTRAL-RTX5090-32G-BTF-GAMINGPart no. 90YV0NF1-M0NA00EAN 4711636176392
45 specifications Checked today
- Weight3.01 kg
- ColourBlack, Grey
- Graphics processor familyNVIDIA
- Discrete graphics card memory32 GB
- Interface typePCI Express 5.0
- TV tuner integratedNo
Overview
- Weight
- 3.01 kg
- Colour
- Black, Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 32 GB
- Interface type
- PCI Express 5.0
- TV tuner integrated
- No
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-ASTRAL-RTX5090-32G-BTF-GAMING
- Part numbers
- 90YV0NF1-M0NA00, 90YV0NF1-M0AA00
- EAN / UPC
- 4711636176392, 199291176409, 4711636176408
- Also known as
- ASUS ROG-ASTRAL-RTX5090-32G-BTF-GAMING NVIDIA GeForce RTX 5090 32 GB GDDR7
Specifications
45 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 21760 |
| Processor boost clock speed | 2437 MHz |
| Processor frequency (OC mode) | 2467 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Data transfer rate | 28 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NPU performance up to | 3394 TOPs |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 4 fan(s) |
| Number of slots | 3.8 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 1000 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.01 kg |
| Length | 357.6 mm |
| Depth | 76 mm |
| Height | 149.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 420 mm |
| Package depth | 226 mm |
| Package height | 126 mm |
| Package weight | 4.45 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
