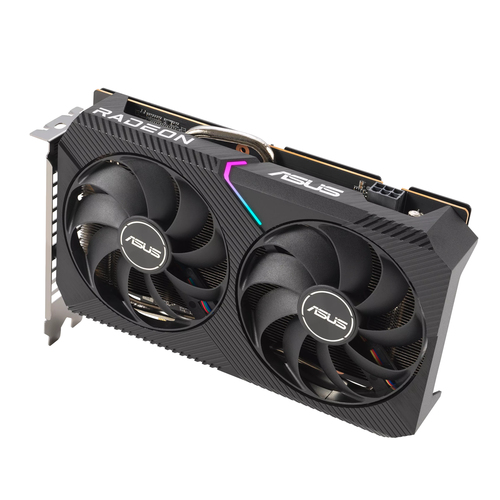

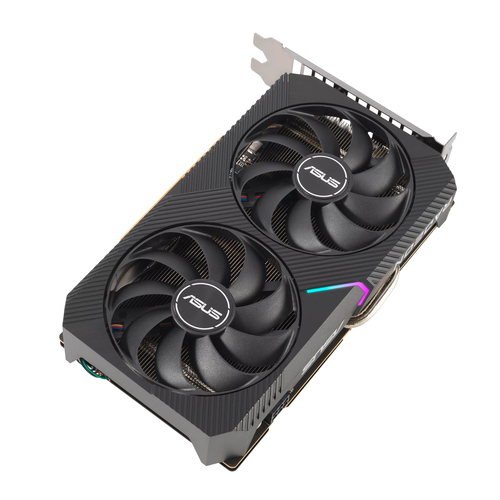

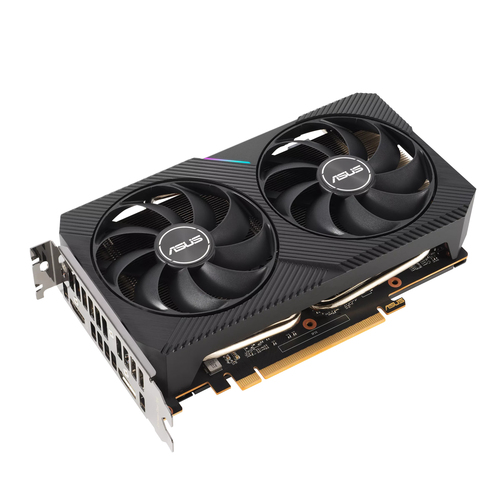

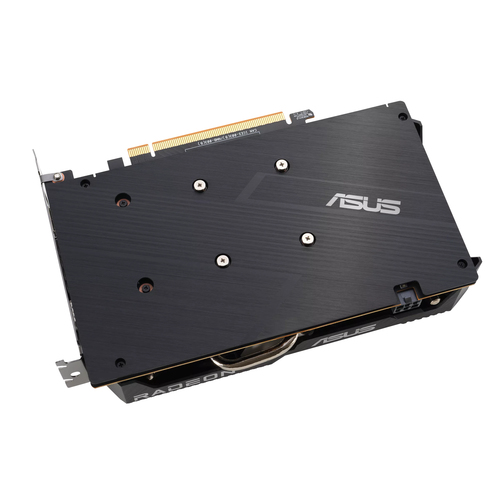

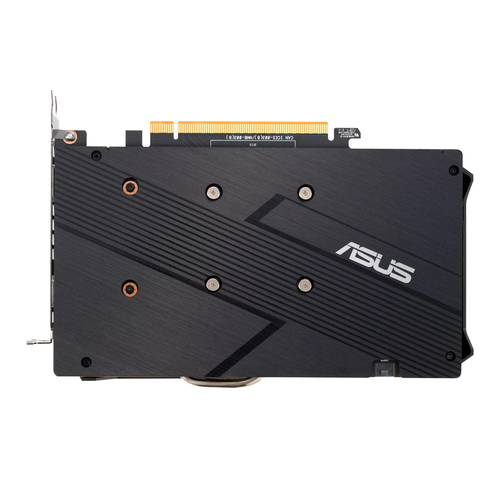

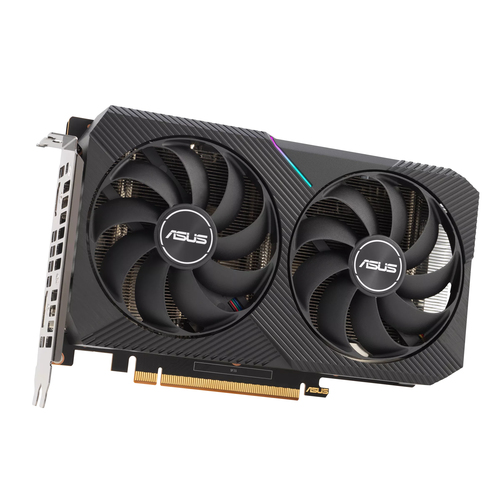

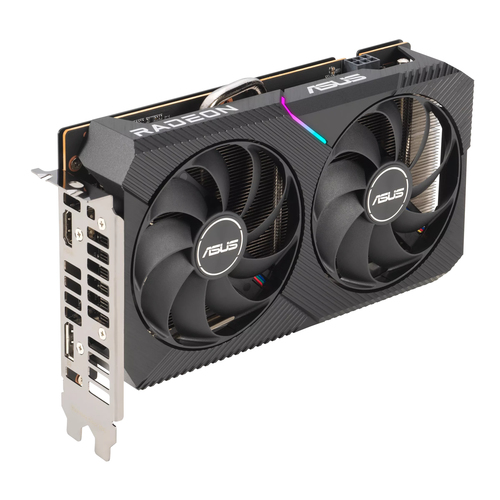

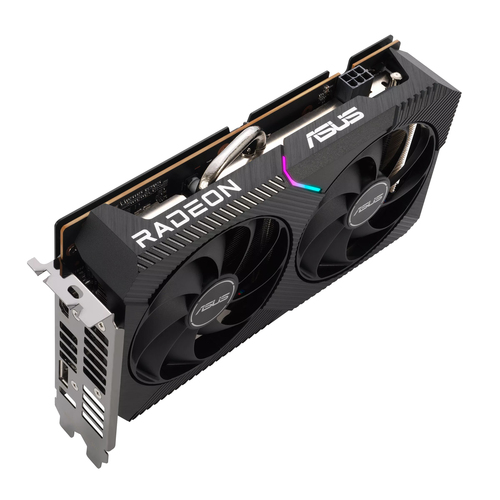

Radeon RX 6500 XT OC Edition
Model Radeon RX 6500 XT OC EditionPart no. 90YV0HA0-M0NA00EAN 4711081637660
50 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight556 g
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 556 g
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x16 4.0
- Brand
- ASUS
- Category
- GPU
- Model
- Radeon RX 6500 XT OC Edition
- Part numbers
- 90YV0HA0-M0NA00, 90YV0HA1-M0NA00
- EAN / UPC
- 4711081637660, 195553638937, 4711081602408, 195553637664 +1 more
- Also known as
- ASUS Dual Radeon RX 6500 XT OC Edition AMD 4 GB GDDR6
Specifications
50 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6500 XT |
| Maximum resolution | 7680 x 4320 pixels |
| Processor frequency | 2650 MHz |
| Processor frequency (OC mode) | 2670 MHz |
| Processor boost clock speed (OC mode) | 2820 MHz |
| Processor boost clock speed (Gaming mode) | 2820 MHz |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | Crossfire, NVLink |
| Stream processors | 1024 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 64 bit |
| Data transfer rate | 18 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 6-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 556 g |
| Length | 201 mm |
| Depth | 40 mm |
| Height | 128 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 303 mm |
| Package depth | 55 mm |
| Package height | 220 mm |
| Package weight | 850 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Bundled software | ASUS GPU Tweak II |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
