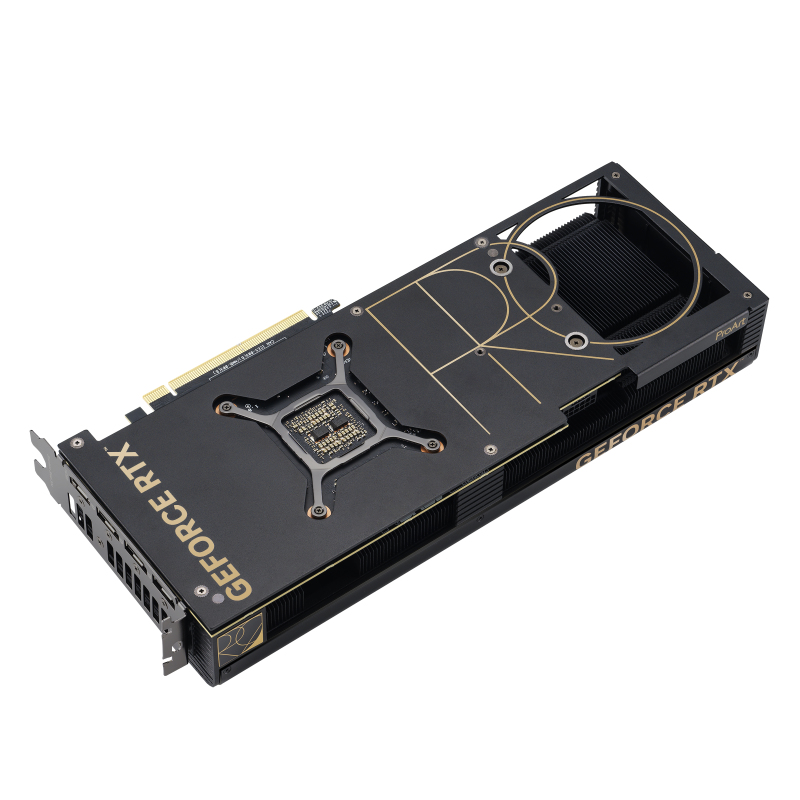

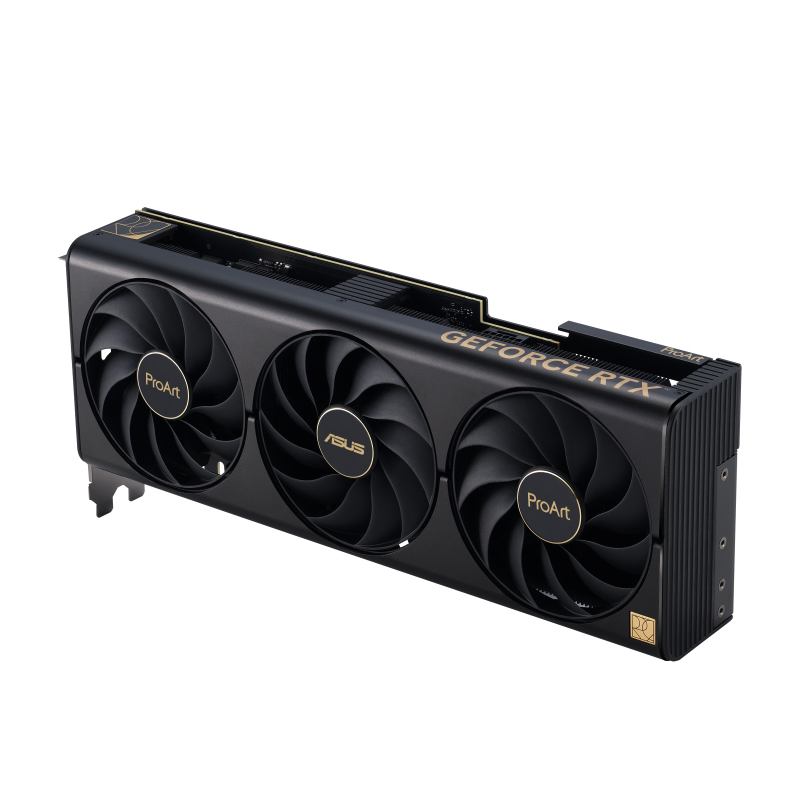

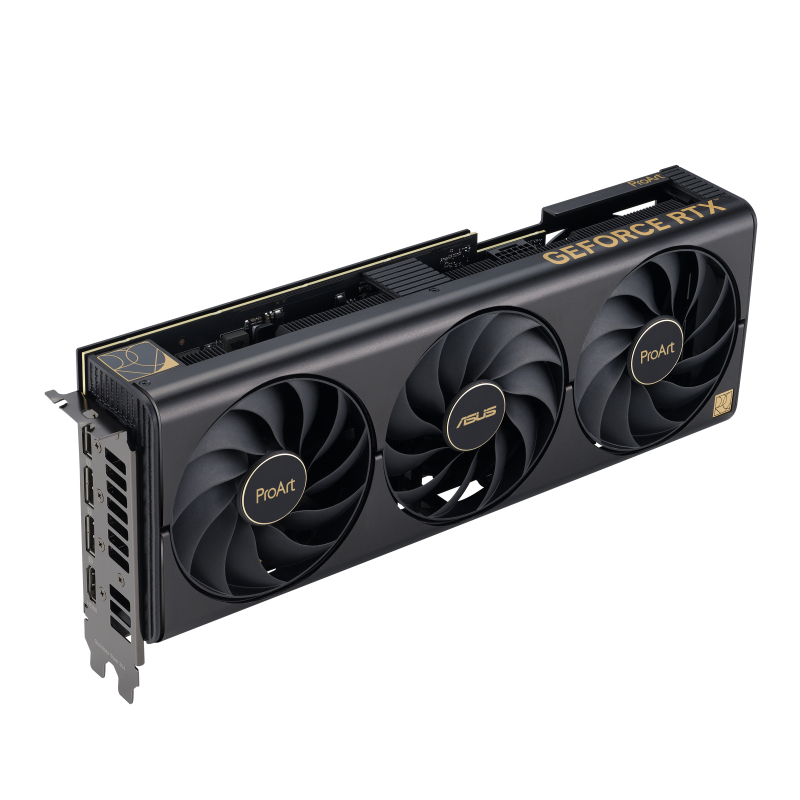

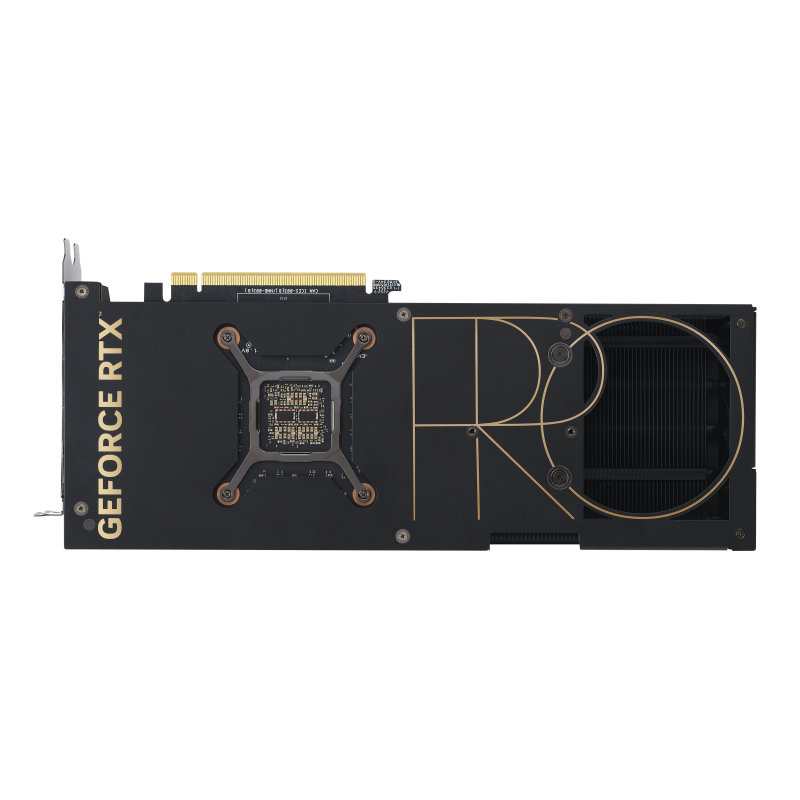

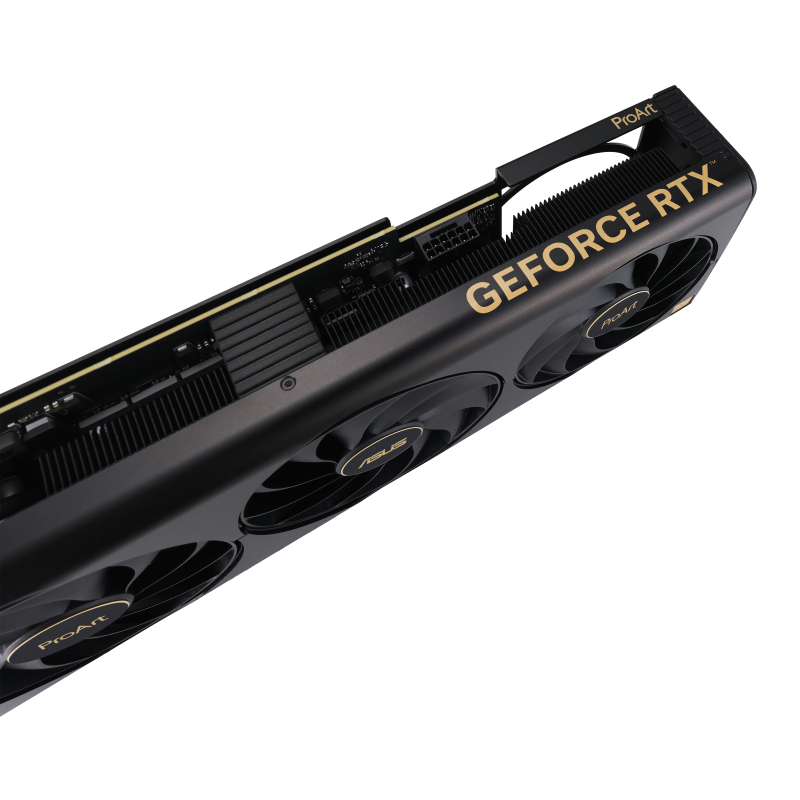

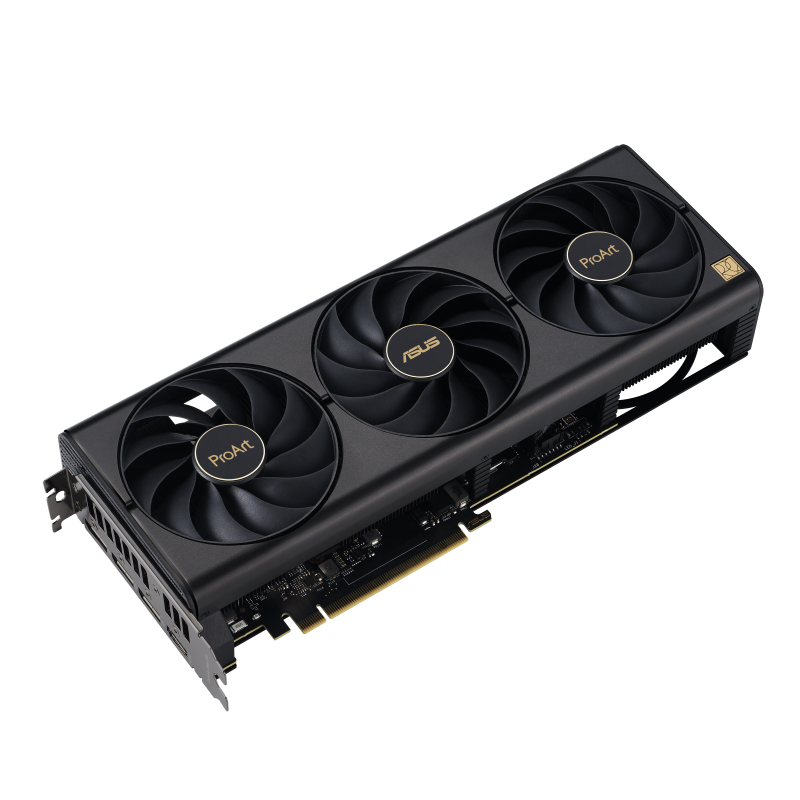

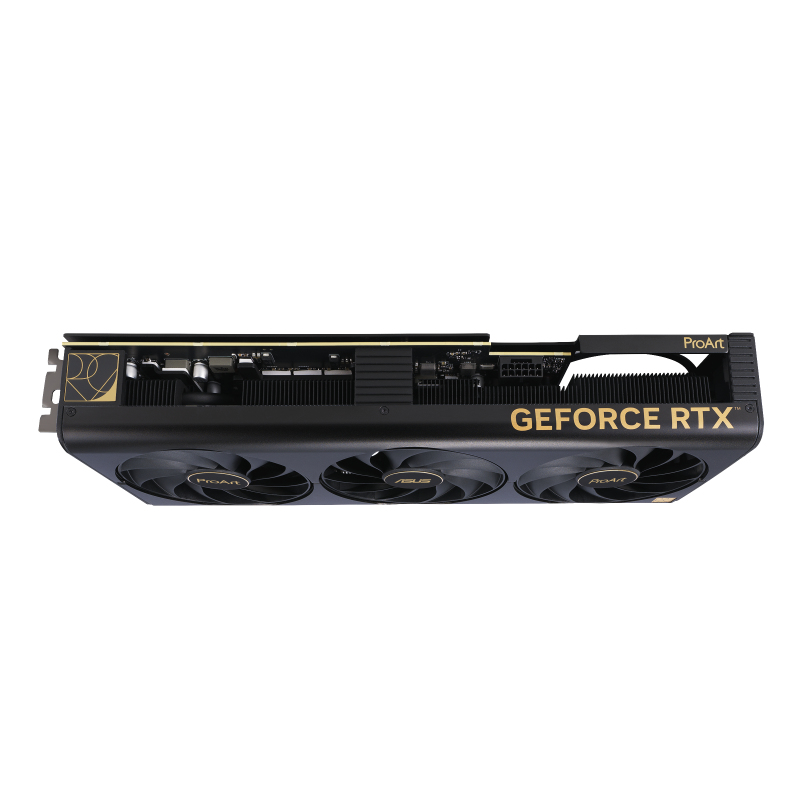

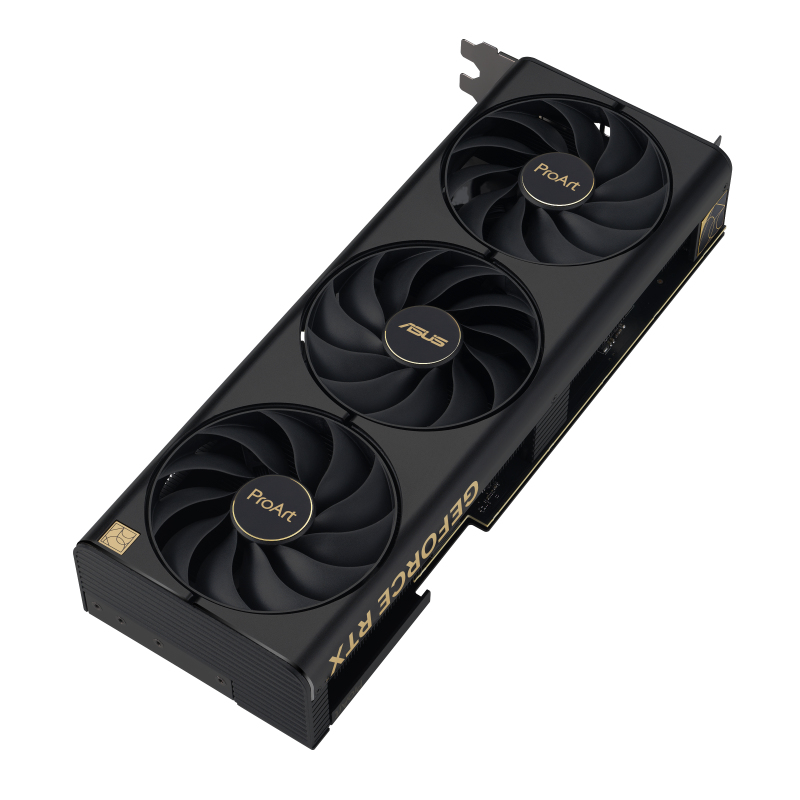

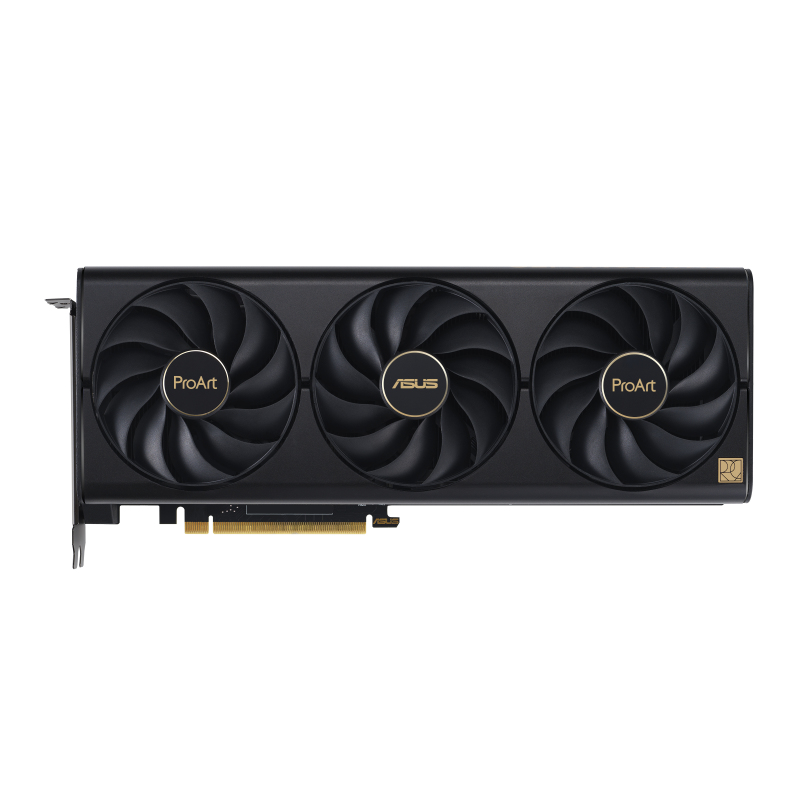

PROART-RTX4070TI-O12G NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
Model PROART-RTX4070TI-O12GPart no. 90YV0J30-M0NA00EAN 197105182790
50 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.1 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.1 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- Brand
- ASUS
- Category
- GPU
- Model
- PROART-RTX4070TI-O12G
- Part numbers
- 90YV0J30-M0NA00, 90YV0J30-M0AA00
- EAN / UPC
- 197105182790, 4711387182796, 4711387182802
- Also known as
- ASUS PROART-RTX4070TI-O12G NVIDIA GeForce RTX 4070 Ti 12 GB GDDR6X
Specifications
50 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 7680 |
| Processor boost clock speed | 2730 MHz |
| Processor frequency (OC mode) | 2760 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 192 bit |
| Data transfer rate | 21 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
| AMD FreeSync | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.1 kg |
| Length | 300 mm |
| Depth | 50 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 405 mm |
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 1.77 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
