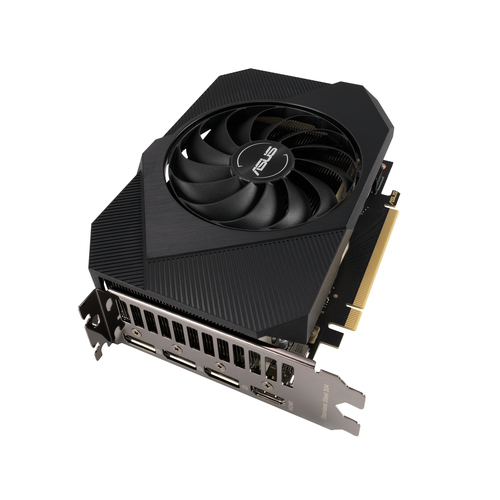

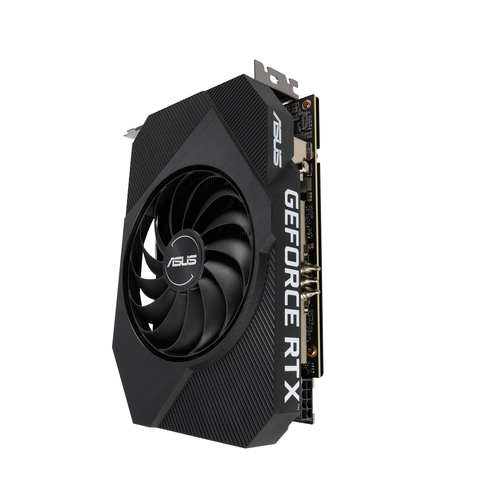

ASUS Phoenix PH-RTX3060-12G NVIDIA GeForce RTX 3060

Phoenix PH-RTX3060-12G NVIDIA GeForce RTX 3060

12 GB GDDR6

Model PH-RTX3060-12GPart no. 90YV0GB4-M0NA00EAN 195553166843

40 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express 4.0
TV tuner integratedNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express 4.0
TV tuner integrated: No
Cooling type: Active

Brand: ASUS
Category: GPU
Model: PH-RTX3060-12G
Part number: 90YV0GB4-M0NA00
EAN / UPC: 195553166843, 4711081166818
Also known as: ASUS Phoenix PH-RTX3060-12G NVIDIA GeForce RTX 3060 12 GB GDDR6

Specifications

40 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	3584
Processor boost clock speed	1777 MHz
Processor boost clock speed (OC mode)	1807 MHz
FireStream	No
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6
Memory bus	192 bit
Data transfer rate	15 Gbit/s

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	1 fan(s)
Number of slots	2.55
Product colour	Black

Power

Specification	Value
Minimum system power supply	650 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	177 mm
Depth	51 mm
Height	128 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Manual	Yes
