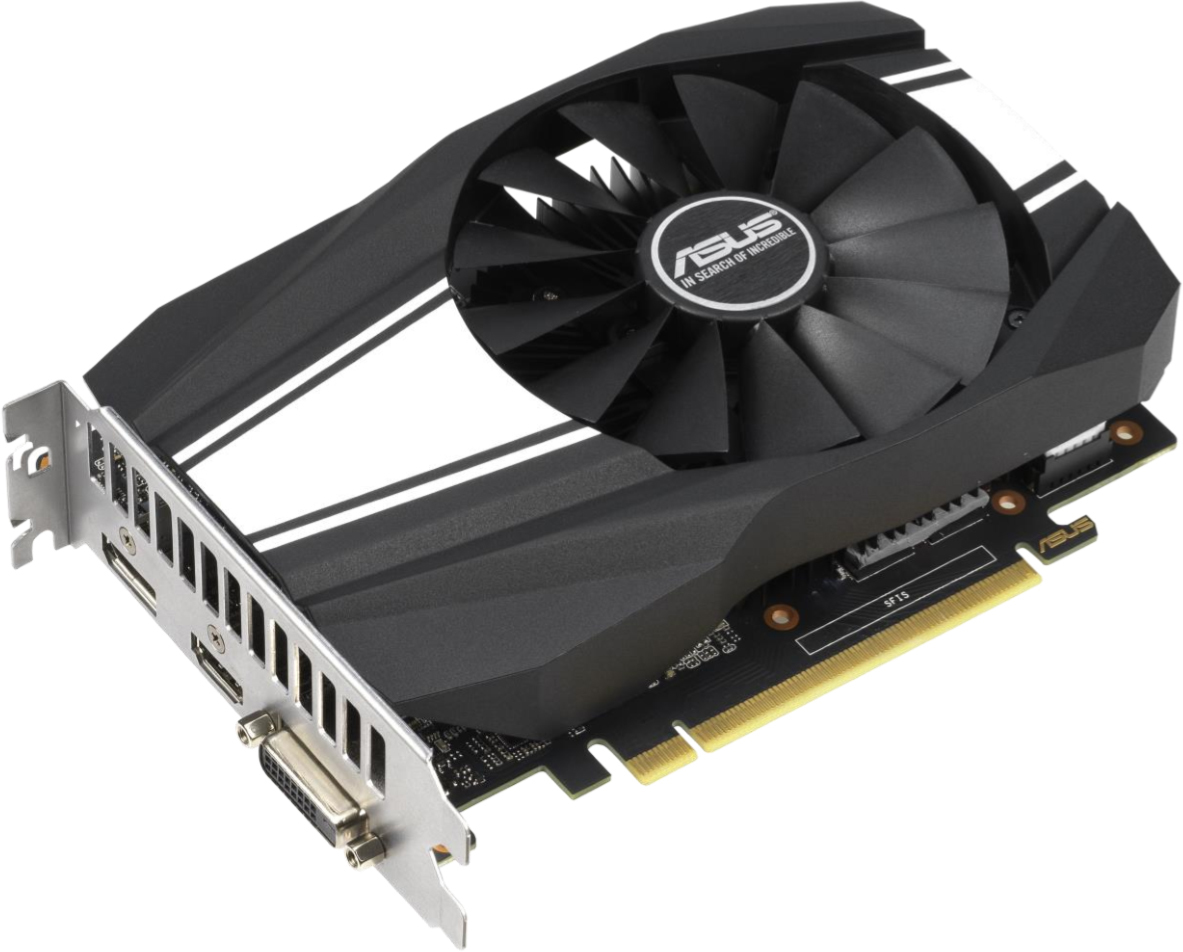

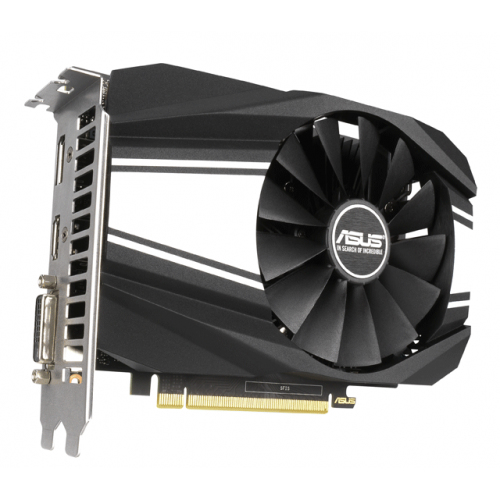

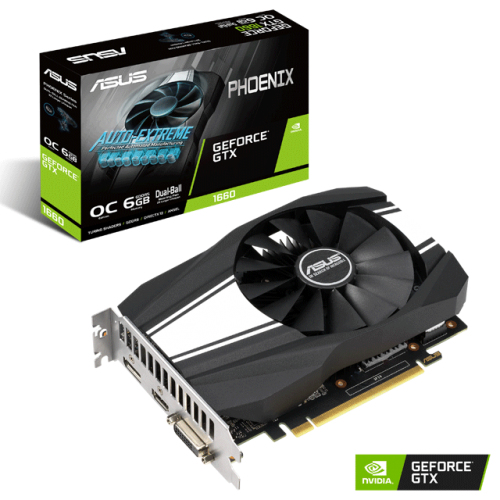

Phoenix PH-GTX1660-O6G NVIDIA GeForce GTX 1660
6 GB GDDR5
Model PH-GTX1660-O6GPart no. 90YV0CU0-M0NA00EAN 195553249843
46 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- ColourBlack, White
- Graphics processor familyNVIDIA
- Discrete graphics card memory6 GB
- Interface typePCI Express 3.0
- PhysXYes
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Colour
- Black, White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express 3.0
- PhysX
- Yes
- Brand
- ASUS
- Category
- GPU
- Model
- PH-GTX1660-O6G
- Part numbers
- 90YV0CU0-M0NA00, 90YV0CU0-M0AA00
- EAN / UPC
- 195553249843, 4718017274883, 192876274880
- Also known as
- ASUS Phoenix PH-GTX1660-O6G NVIDIA GeForce GTX 1660 6 GB GDDR5
Specifications
46 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1660 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1408 |
| Processor frequency | 1530 MHz |
| Processor boost clock speed | 1800 MHz |
| Processor frequency (OC mode) | 1560 MHz |
| Processor boost clock speed (OC mode) | 1830 MHz |
| Maximum digital resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 192 bit |
| Memory clock speed | 8002 MHz |

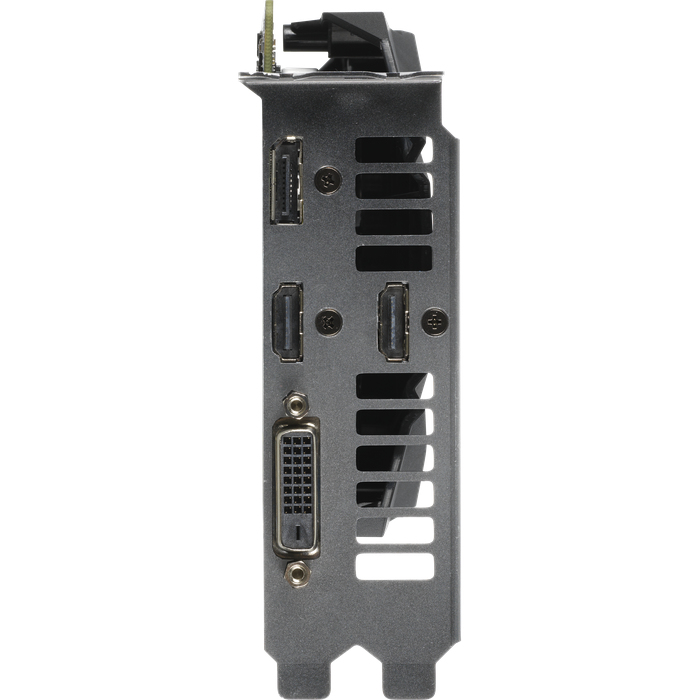

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0b |
| DVI ports quantity | 1 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 174 mm |
| Depth | 39 mm |
| Height | 121 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| User guide | Yes |
