GeForce RTX 5090 Edition 20
Model GeForce RTX 5090 Edition 20Part no. 90YV0NF3-M0NA00EAN 4711636624077
29 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory32 GB
- Interface typePCI Express 5.0
- OpenGL version4.6
- Cooling typeActive
- Minimum system power supply1200 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 32 GB
- Interface type
- PCI Express 5.0
- OpenGL version
- 4.6
- Cooling type
- Active
- Minimum system power supply
- 1200 W
- Brand
- ASUS
- Category
- GPU
- Model
- GeForce RTX 5090 Edition 20
- Part number
- 90YV0NF3-M0NA00
- EAN / UPC
- 4711636624077
- Also known as
- ASUS ROG Astral GeForce RTX 5090 Edition 20 NVIDIA 32 GB GDDR7
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 21760 |
| Processor boost clock speed | 2730 MHz |
| Processor frequency (OC mode) | 2760 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | Sapphire Vapor Chamber cooling |
| Number of fans | 4 fan(s) |
| Number of slots | 4.7 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 1200 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 361 mm |
| Depth | 139.3 mm |
| Height | 93.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Bundled software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver |
Similar products
All gpus
ASUS
ROG Astral - -RTX5080-O16G-WHITE NVIDIA GeForce RTX 5080
Model ROG-ASTRAL-RTX5080-O16G-WHITE
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 2.86 kg
- Colour
- White
ASUS
ROG Astral - -RTX5090-O32G-WHITE NVIDIA GeForce RTX 5090
Model ROG-ASTRAL-RTX5090-O32G-WHITE
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 3.01 kg
- Colour
- White
ASUS
Prime -RTX5060-8G NVIDIA GeForce RTX 5060
Model PRIME-RTX5060-8G
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 775 g
- Colour
- Black
ASUS
Dual -RTX4060TI-O8G-EVO NVIDIA GeForce RTX 4060 Ti
Model DUAL-RTX4060TI-O8G-EVO
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 644 g
- Colour
- Black
GIGABYTE

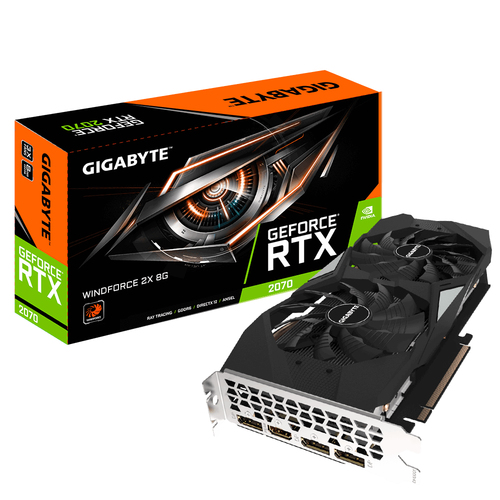

GV-N2070WF2-8GD graphics card NVIDIA GeForce RTX 2070
