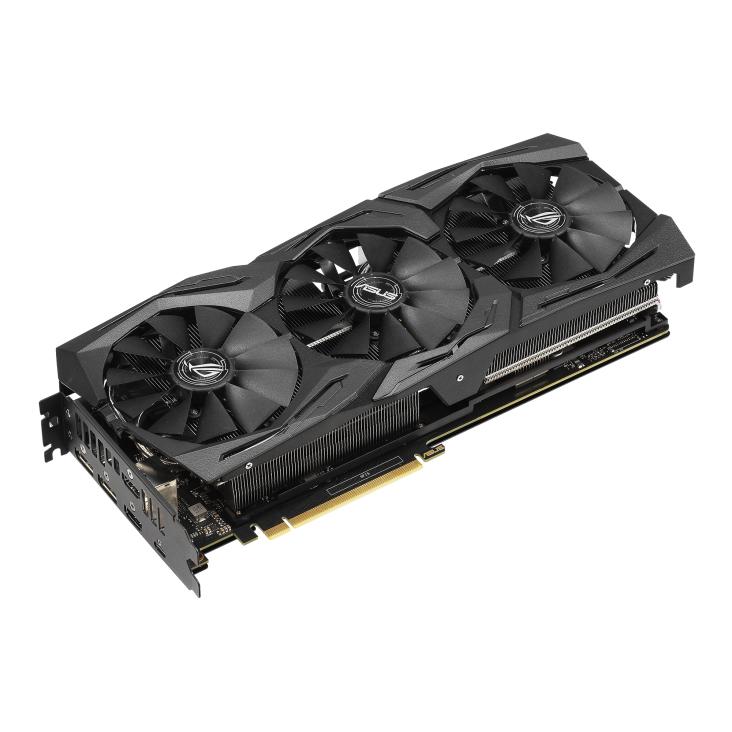

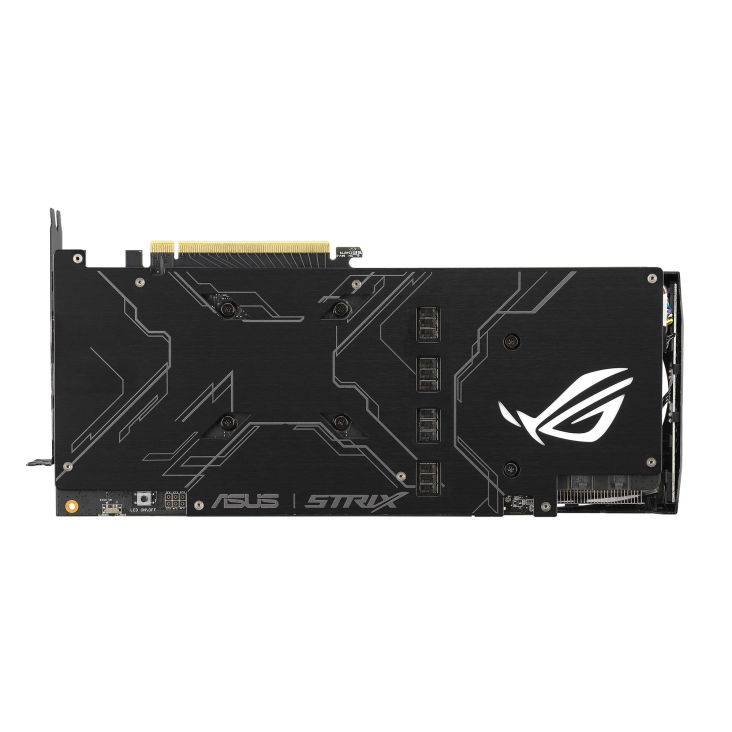

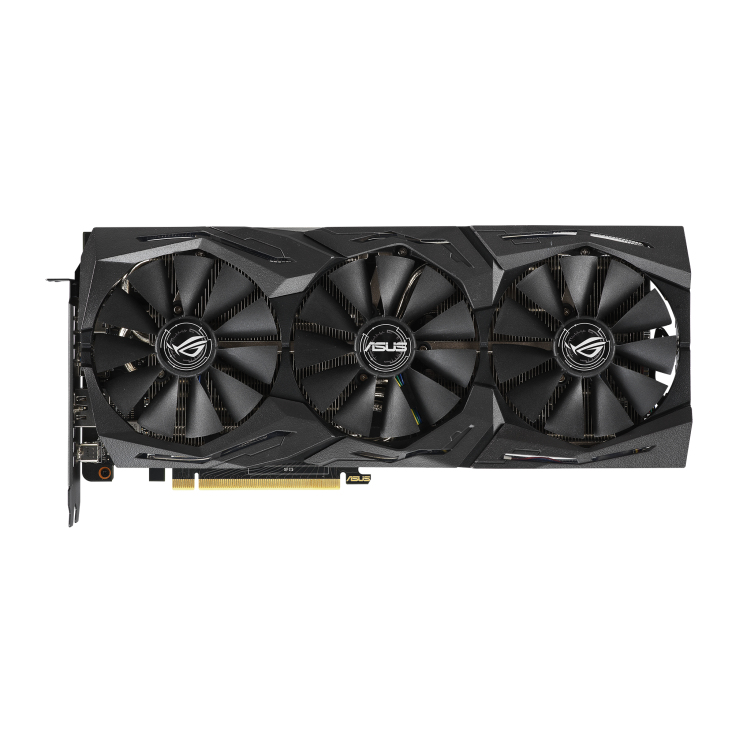

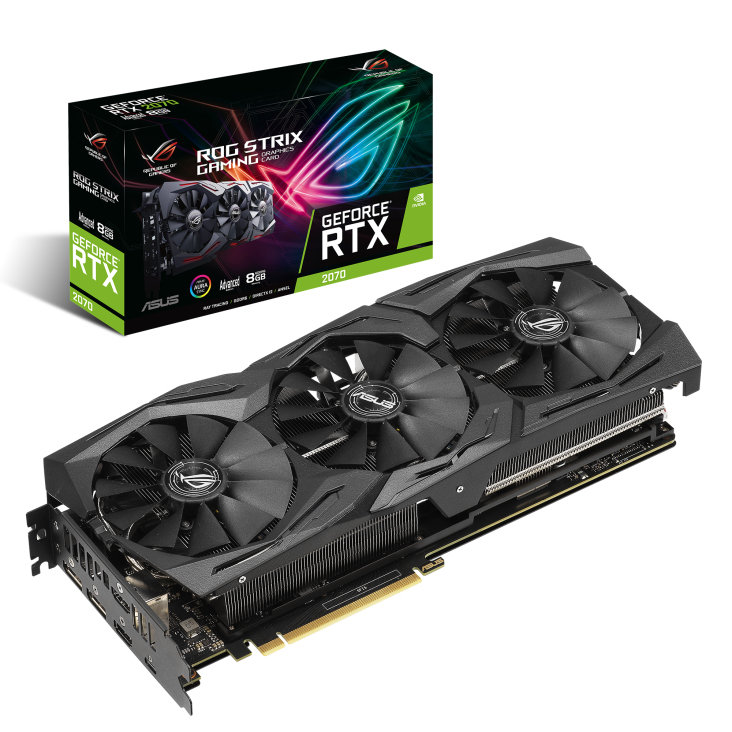

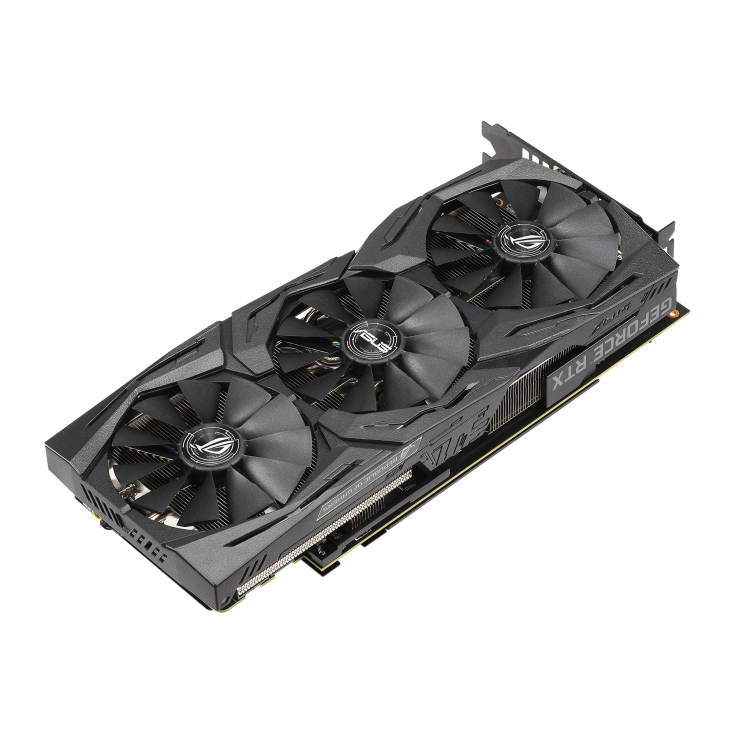

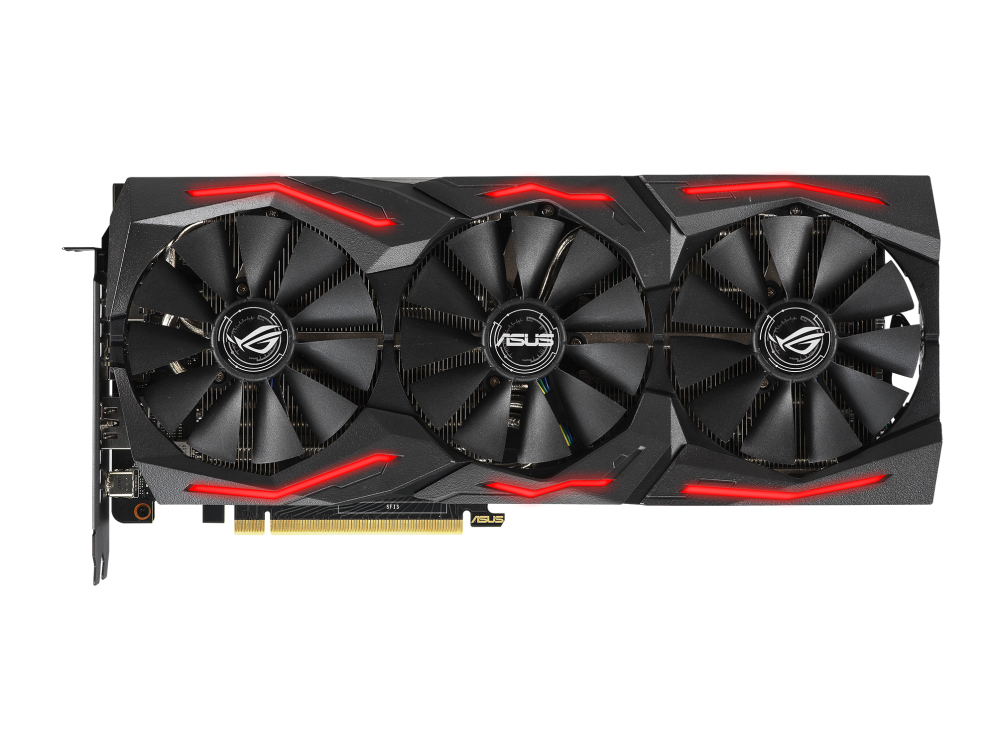

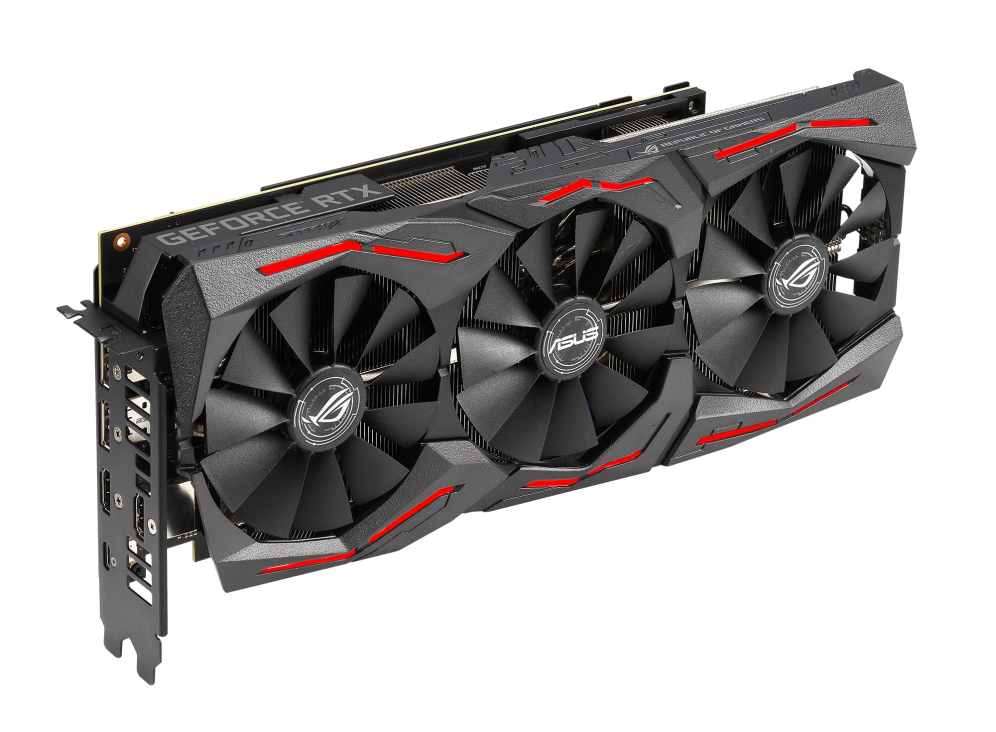

GeForce RTX 2070
Model GeForce RTX 2070Part no. ROGSTRIXRTX2070A8GGAMING
31 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 3.0
- OpenGL version4.6
- Cooling typeActive
- Minimum system power supply550 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 3.0
- OpenGL version
- 4.6
- Cooling type
- Active
- Minimum system power supply
- 550 W
- Brand
- ASUS
- Category
- GPU
- Model
- GeForce RTX 2070
- Part number
- ROGSTRIXRTX2070A8GGAMING
- Also known as
- ASUS ROG GeForce RTX 2070 NVIDIA 8 GB GDDR6
Specifications
31 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2304 |
| Processor frequency | 1410 MHz |
| Processor frequency (OC mode) | 1410 MHz |
| Processor boost clock speed (OC mode) | 1680 MHz |
| Processor boost clock speed (Gaming mode) | 1650 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 14000 MHz |

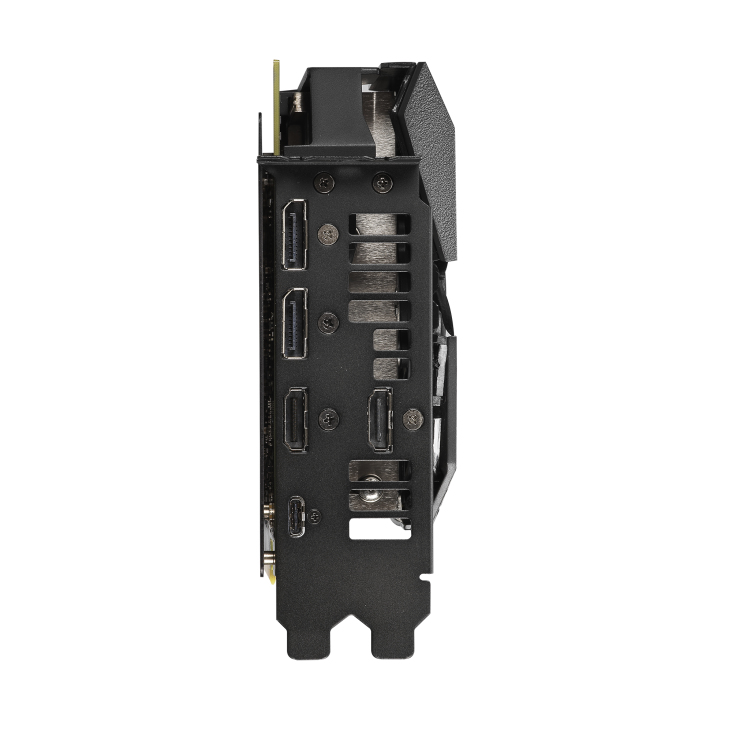

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| USB Type-C ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.6 |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Number of slots | 2.5 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 100 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 300.5 mm |
| Depth | 48.9 mm |
| Height | 130.6 mm |
