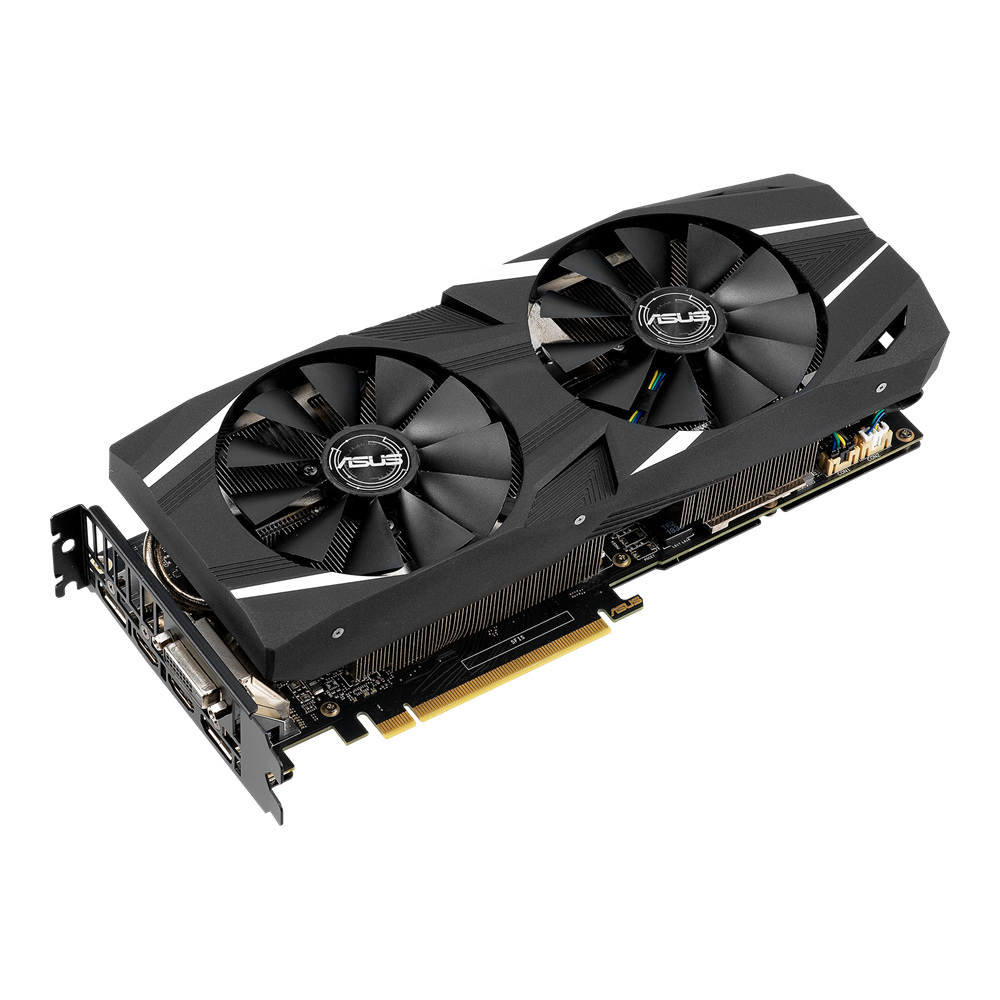

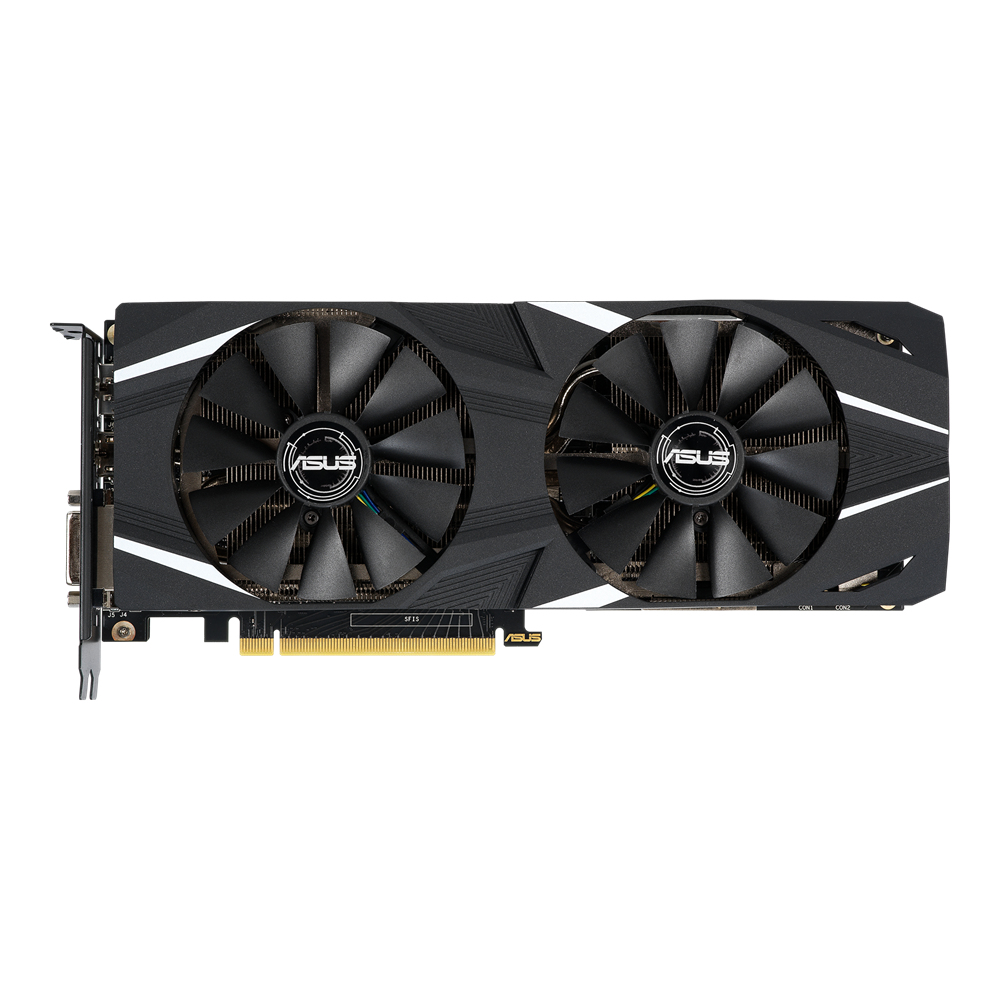

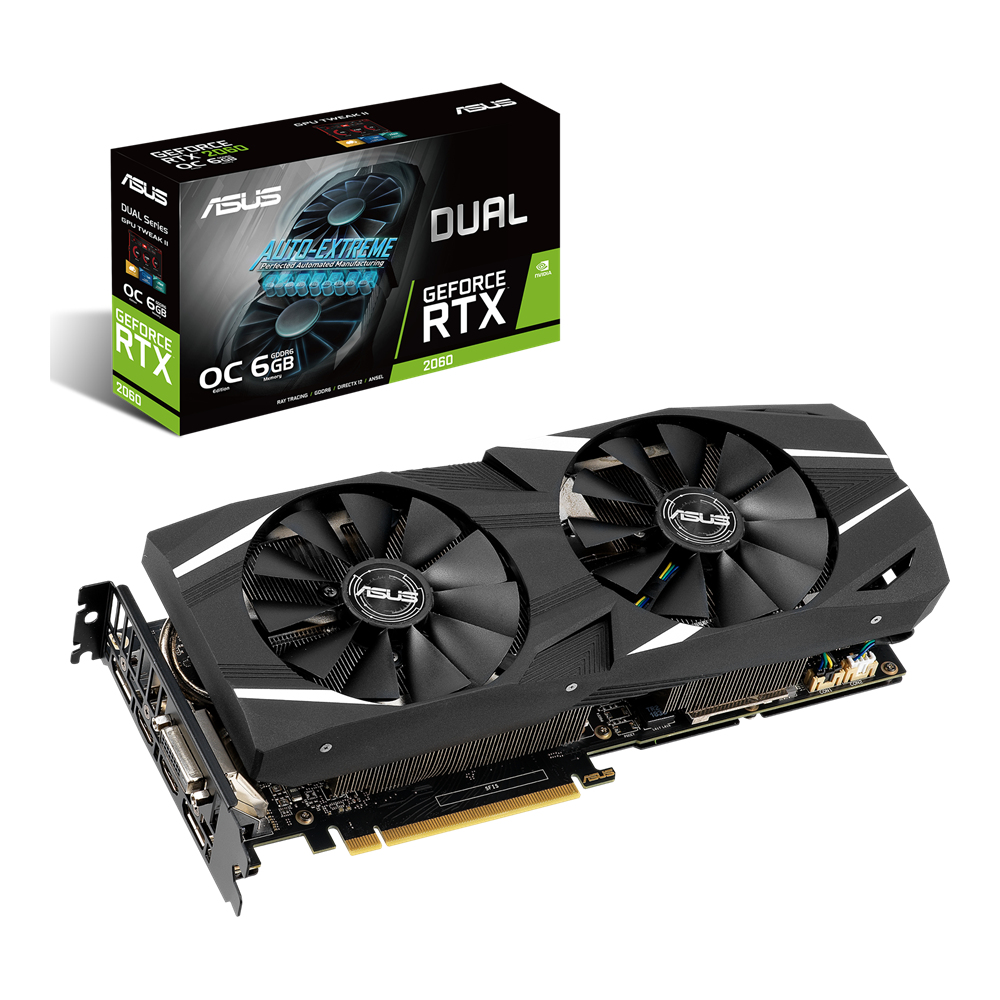

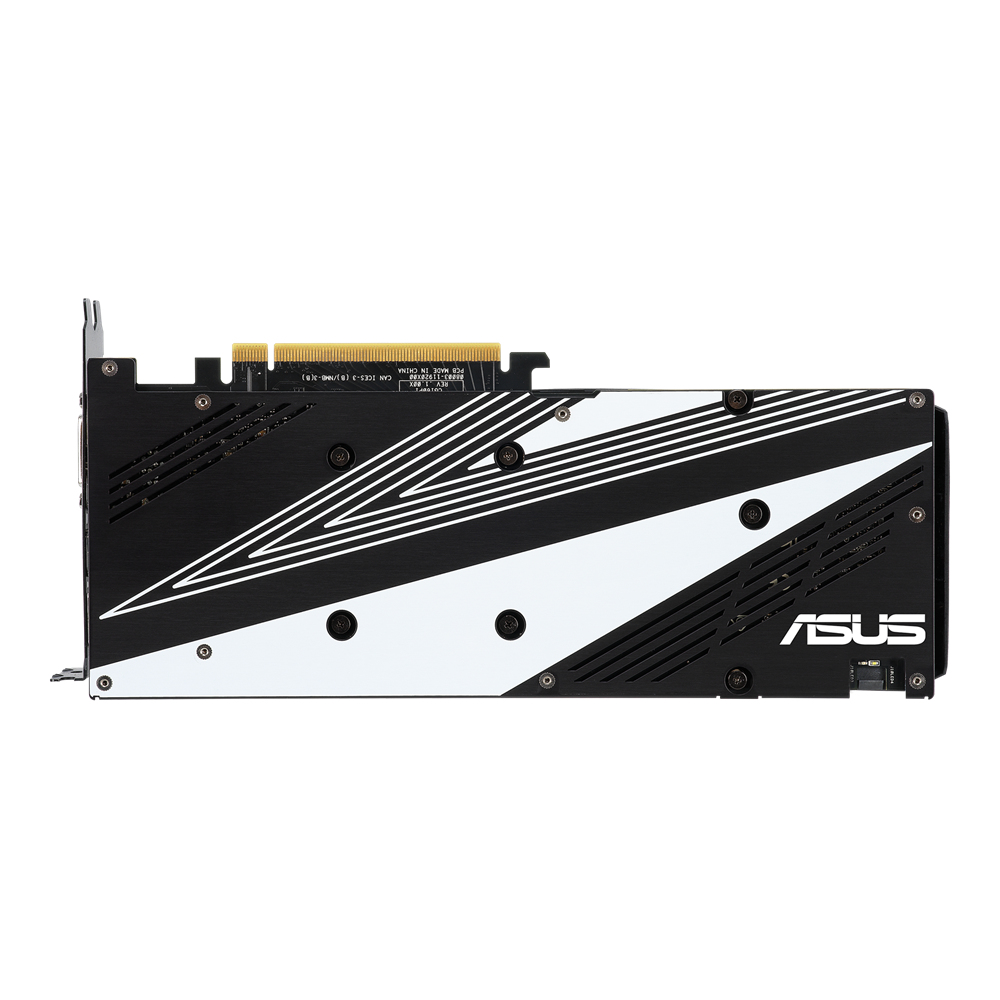

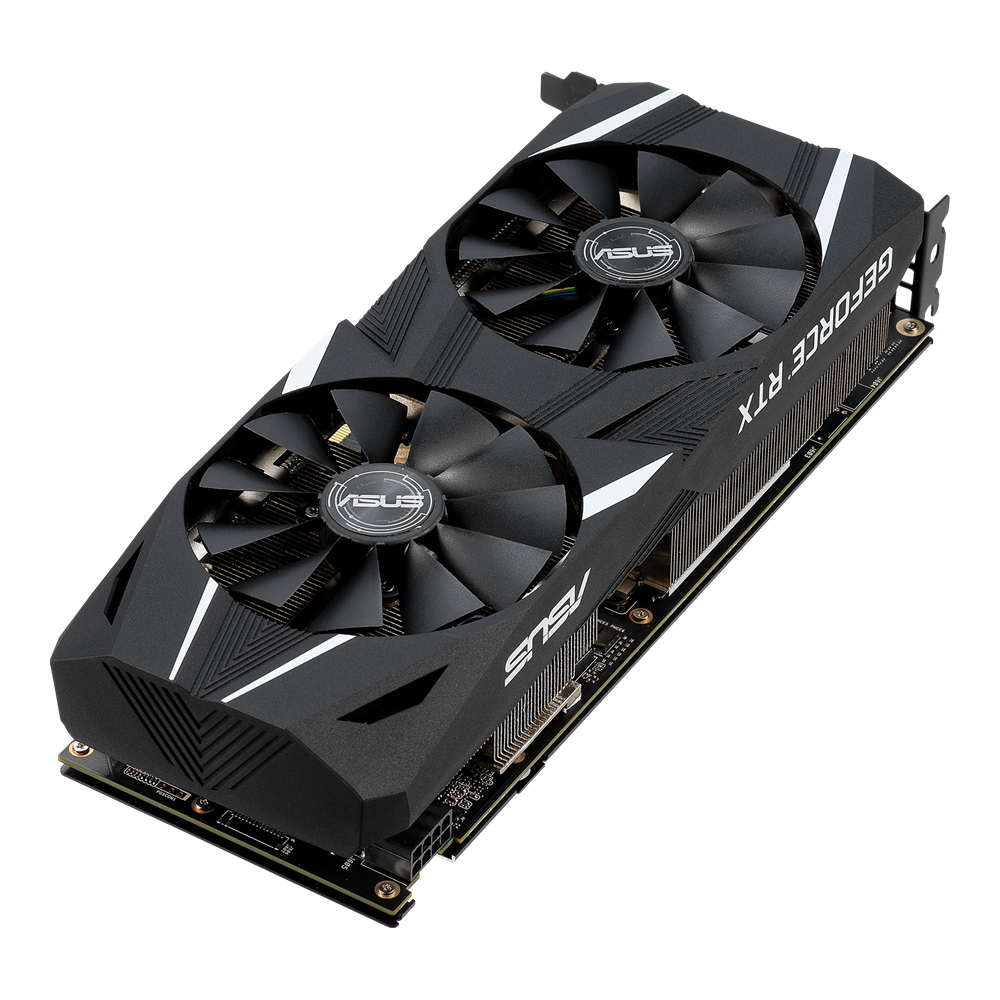

GeForce RTX 2060 OC Edition
Model GeForce RTX 2060 OC EditionPart no. DUALRTX2060O6G
28 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory6 GB
- Interface typePCI Express 3.0
- OpenGL version4.6
- Cooling typeActive
- Minimum system power supply500 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express 3.0
- OpenGL version
- 4.6
- Cooling type
- Active
- Minimum system power supply
- 500 W
- Brand
- ASUS
- Category
- GPU
- Model
- GeForce RTX 2060 OC Edition
- Part number
- DUALRTX2060O6G
- Also known as
- ASUS Dual GeForce RTX 2060 OC Edition NVIDIA 6 GB GDDR6
Specifications
28 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1920 |
| Processor frequency | 1365 MHz |
| Processor frequency (OC mode) | 1395 MHz |
| Processor boost clock speed (OC mode) | 1785 MHz |
| Processor boost clock speed (Gaming mode) | 1755 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |

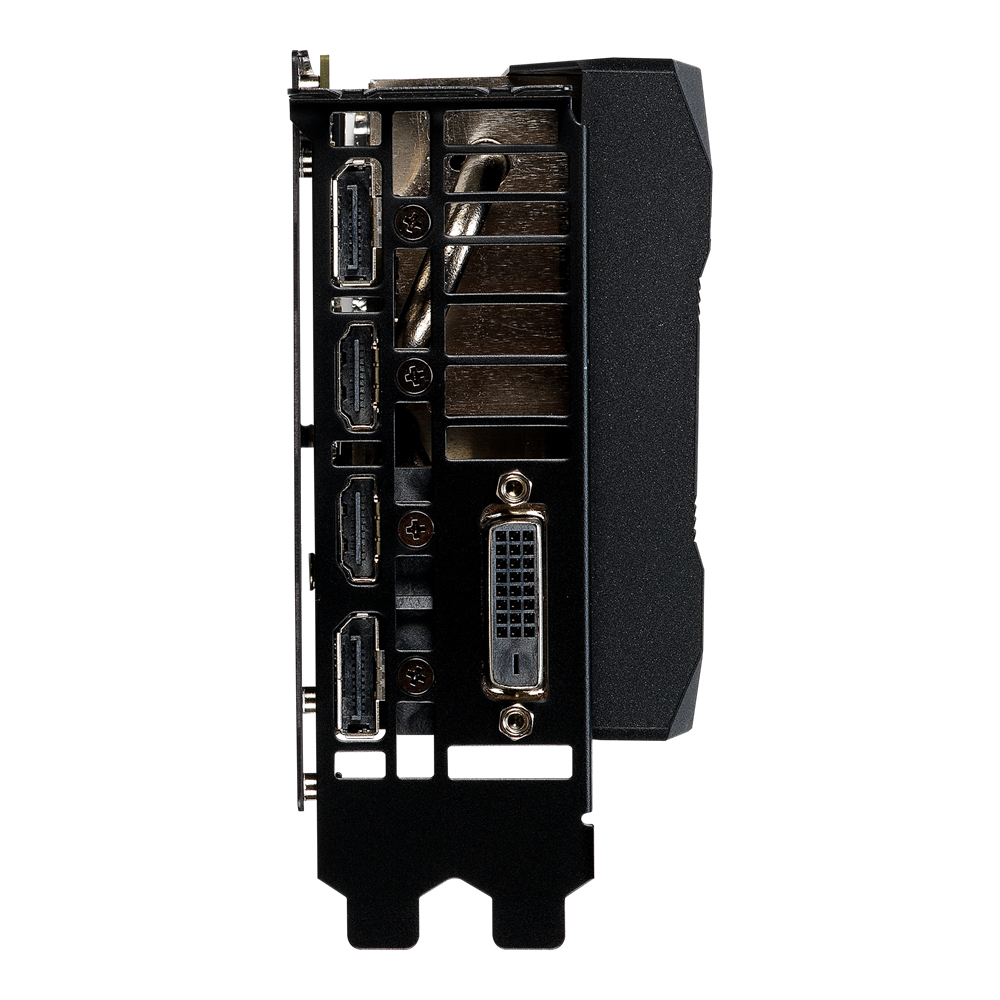

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.6 |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 270 mm |
| Depth | 22.8 mm |
| Height | 43.7 mm |
