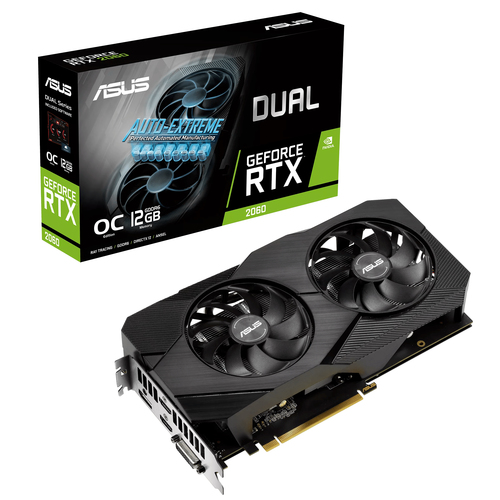

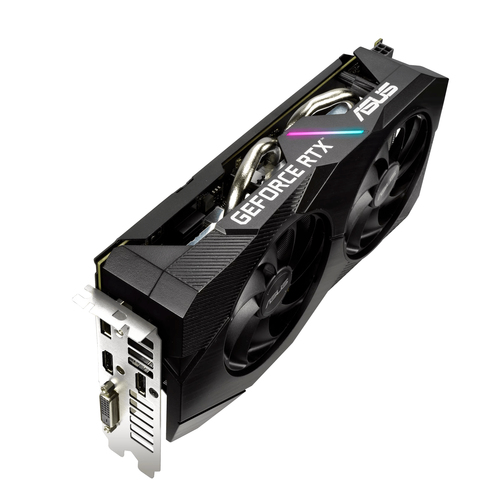

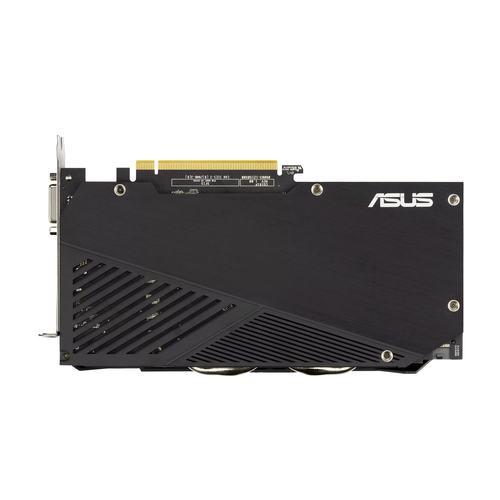

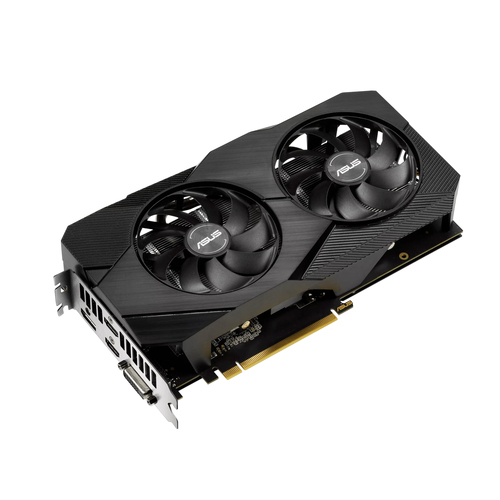

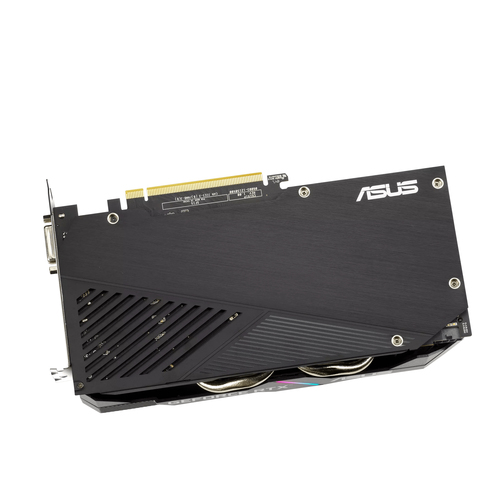

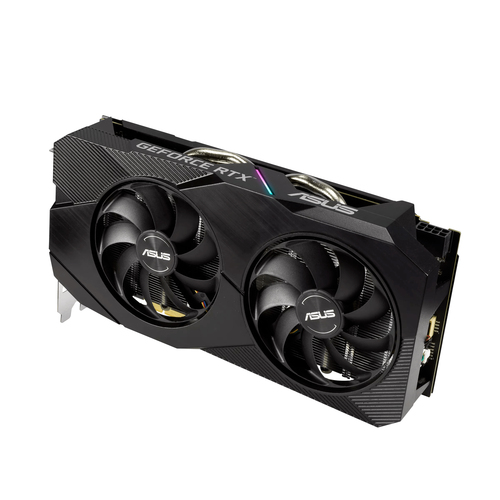

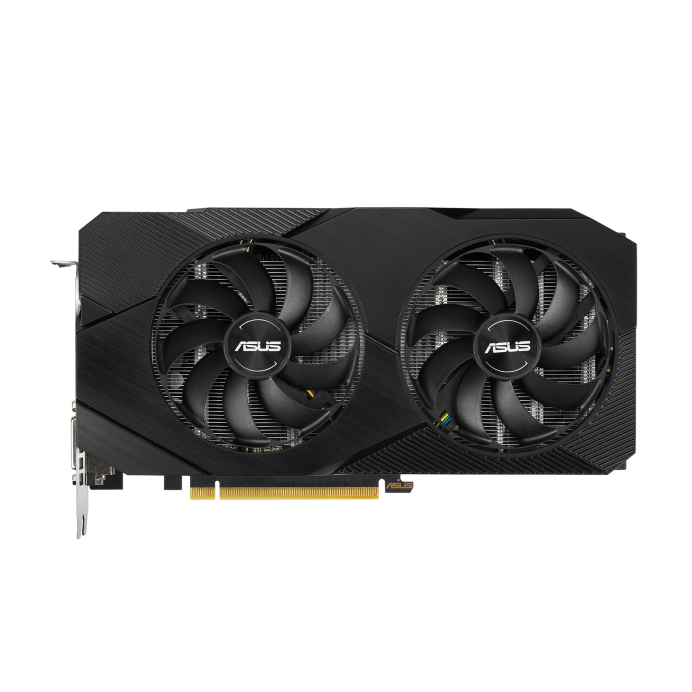

GeForce RTX 2060 EVO OC Edition
Model GeForce RTX 2060 EVO OC EditionPart no. 90YV0CH7-M0NA00EAN 4711081562573
42 specifications Checked today
- Weight768 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express x16 3.0
- TV tuner integratedNo
Overview
- Weight
- 768 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express x16 3.0
- TV tuner integrated
- No
- Brand
- ASUS
- Category
- GPU
- Model
- GeForce RTX 2060 EVO OC Edition
- Part number
- 90YV0CH7-M0NA00
- EAN / UPC
- 4711081562573
- Also known as
- ASUS Dual GeForce RTX 2060 EVO OC Edition NVIDIA 12 GB GDDR6
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2176 |
| Processor frequency | 1710 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Data transfer rate | 14 Gbit/s |

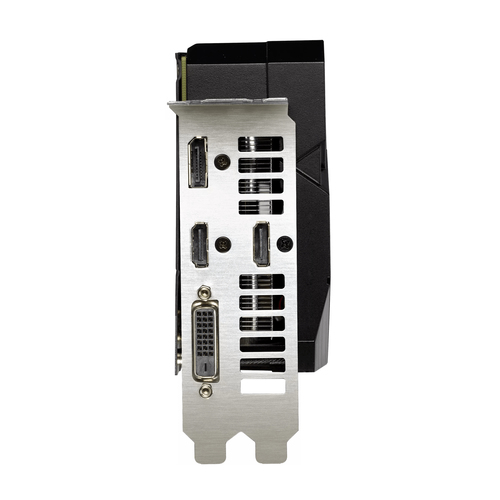

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Number of slots | 2.7 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 768 g |
| Length | 242 mm |
| Depth | 53 mm |
| Height | 130 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 233 mm |
| Package depth | 405 mm |
| Package height | 885 mm |
| Package weight | 1.6 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
