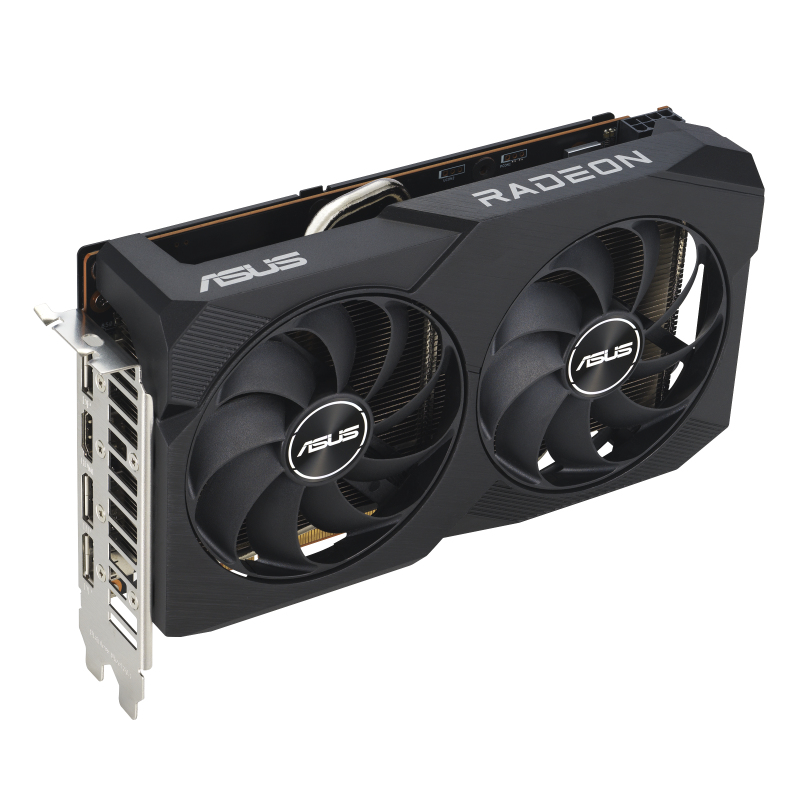

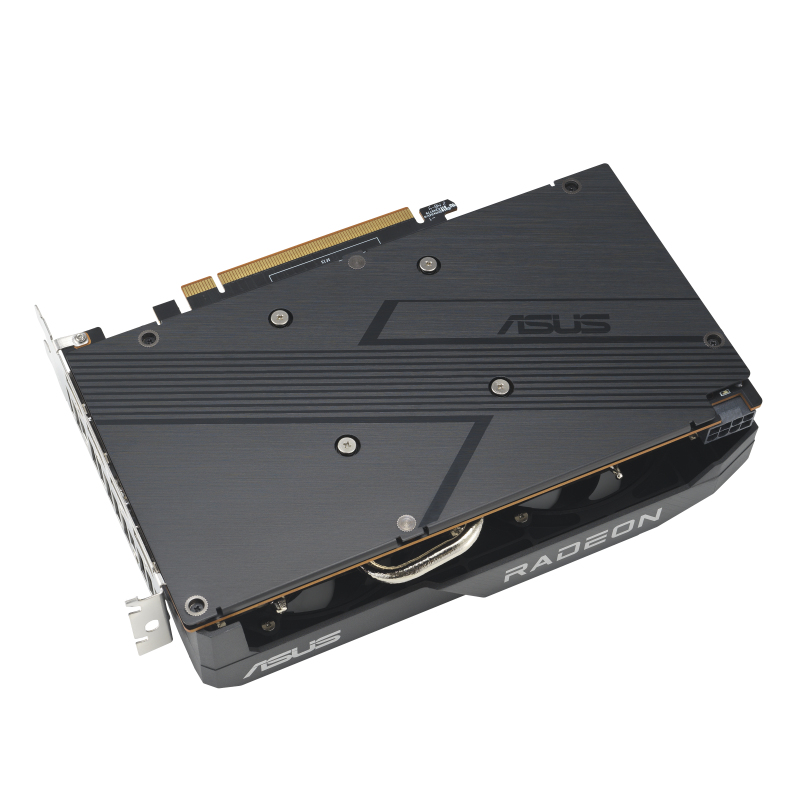

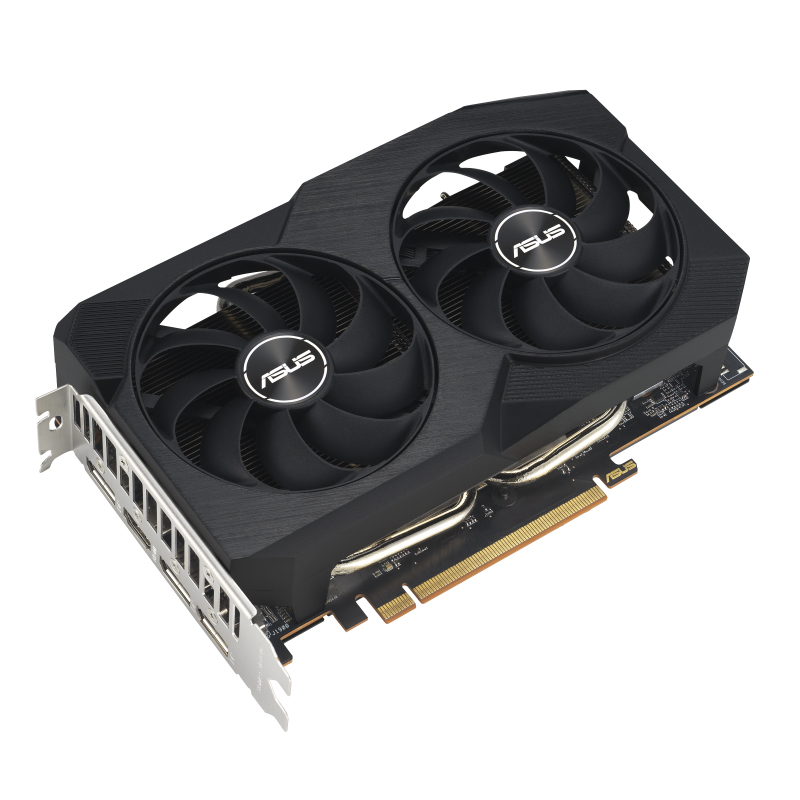

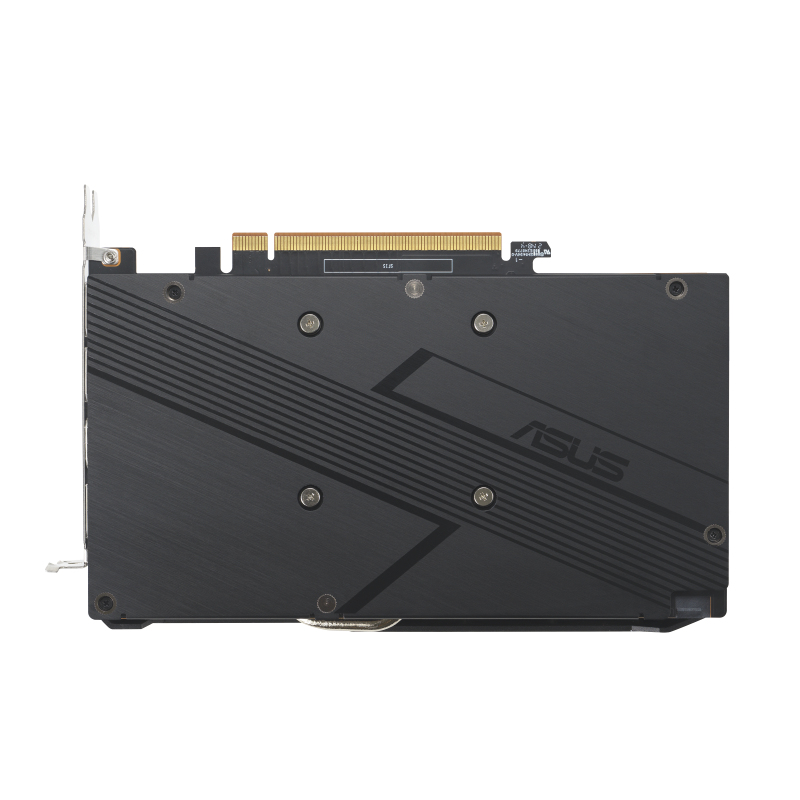

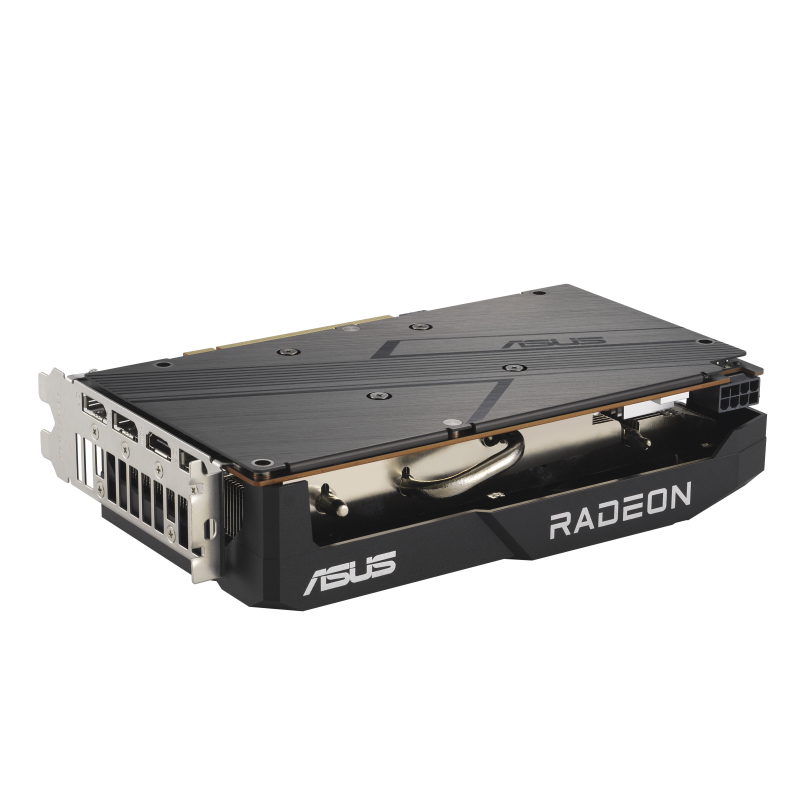

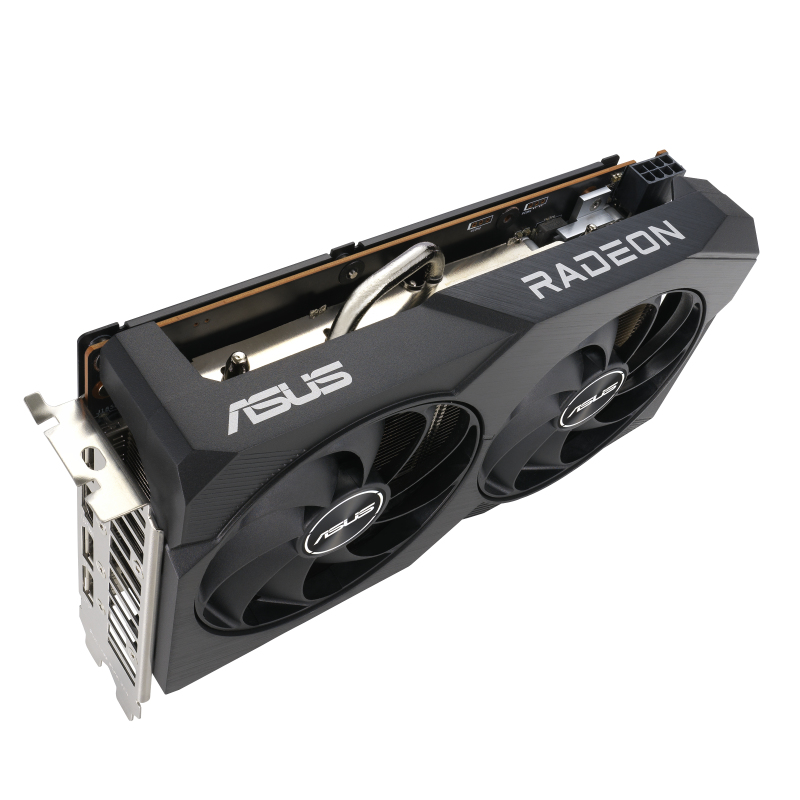

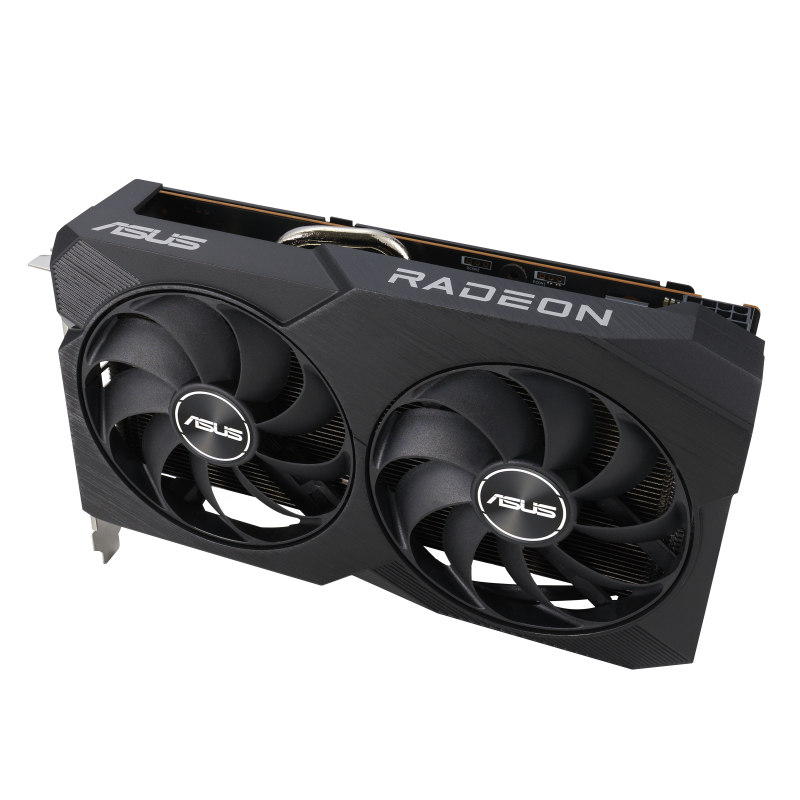

Dual -RX7600-O8G-V2 AMD Radeon RX 7600
8 GB GDDR6
Model DUAL-RX7600-O8G-V2Part no. 90YV0IH2-M0NA00EAN 197105236592
53 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight630 g
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 630 g
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- Brand
- ASUS
- Category
- GPU
- Model
- DUAL-RX7600-O8G-V2
- Part number
- 90YV0IH2-M0NA00
- EAN / UPC
- 197105236592, 4711387228937
- Also known as
- ASUS Dual -RX7600-O8G-V2 AMD Radeon RX 7600 8 GB GDDR6
Specifications
53 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 7600 |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2695 MHz |
| Processor boost clock speed (OC mode) | 2715 MHz |
| Processor boost clock speed (Gaming mode) | 2300 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 2048 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |

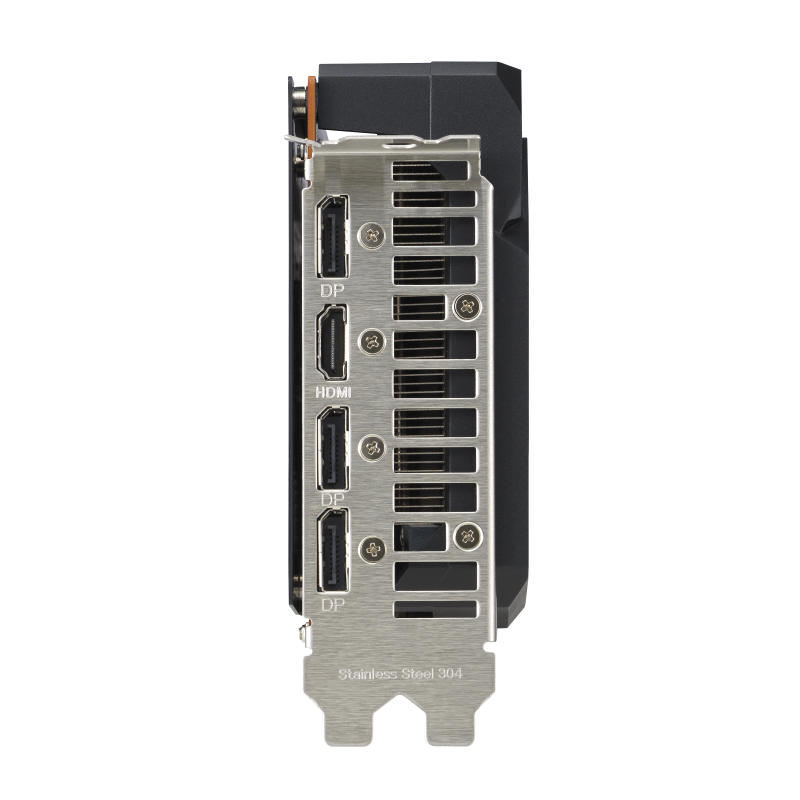

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | No |
| AMD FreeSync | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2.5 |
| Illumination | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 630 g |
| Length | 205 mm |
| Depth | 49 mm |
| Height | 128 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 364 mm |
| Package depth | 217 mm |
| Package height | 66 mm |
| Package weight | 1.09 kg |
| Package type | Box |
