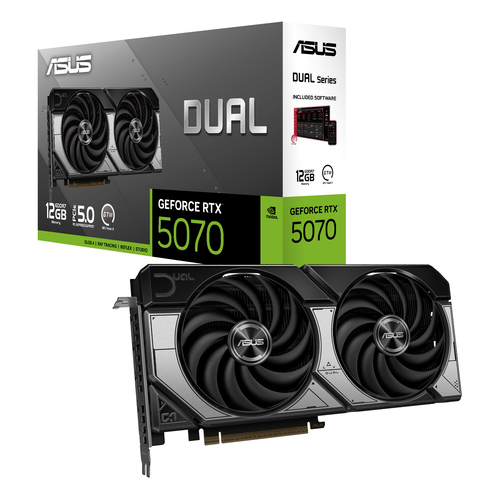

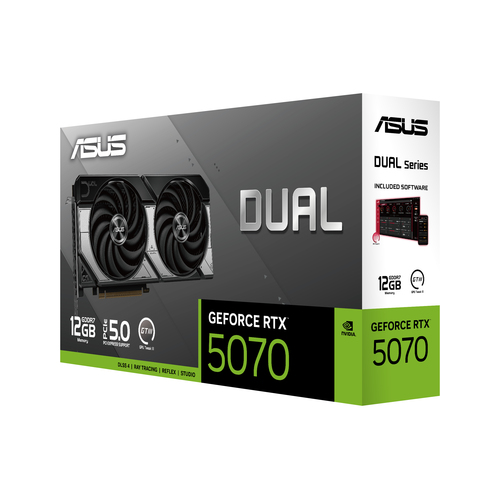

Dual -RTX5070-12G NVIDIA GeForce RTX 5070
12 GB GDDR7
Model DUAL-RTX5070-12GPart no. 90YV0M18-M0NA00EAN 4711636046190
52 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight855 g
- ColourBlack, White
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 855 g
- Colour
- Black, White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 5.0
- Brand
- ASUS
- Category
- GPU
- Model
- DUAL-RTX5070-12G
- Part number
- 90YV0M18-M0NA00
- EAN / UPC
- 4711636046190
- Also known as
- ASUS Dual -RTX5070-12G NVIDIA GeForce RTX 5070 12 GB GDDR7
Specifications
52 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 6144 |
| Processor boost clock speed | 2512 MHz |
| Processor frequency (OC mode) | 2542 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 28 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
| NPU performance up to | 988 TOPs |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2.53 |
| Illumination | No |
| SFF ready | Yes |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 855 g |
| Length | 249 mm |
| Depth | 50.6 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 405 mm |
| Package depth | 126 mm |
| Package height | 50.6 mm |
| Package weight | 1.56 kg |
