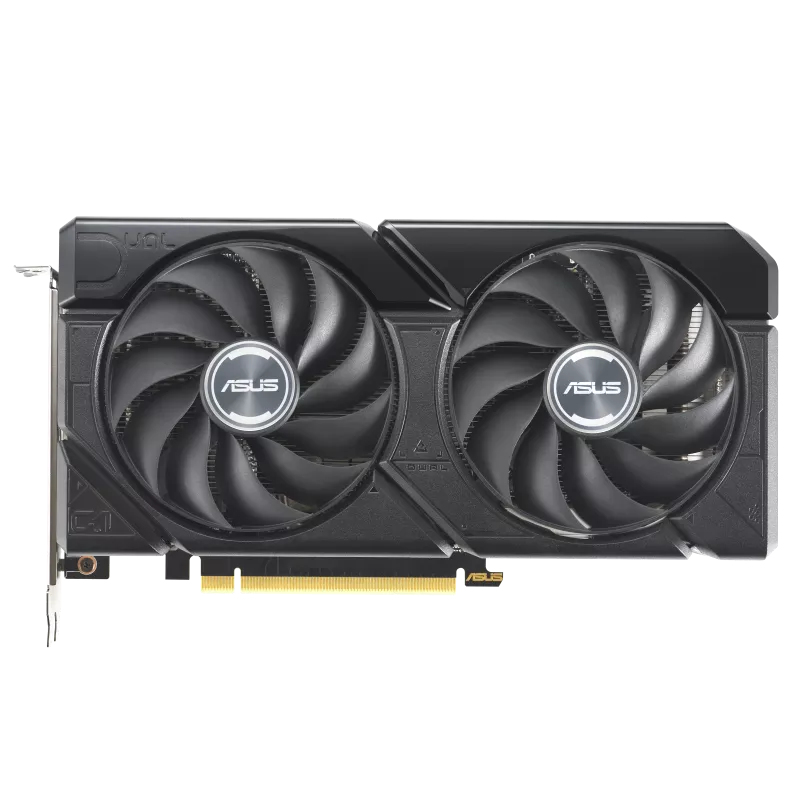

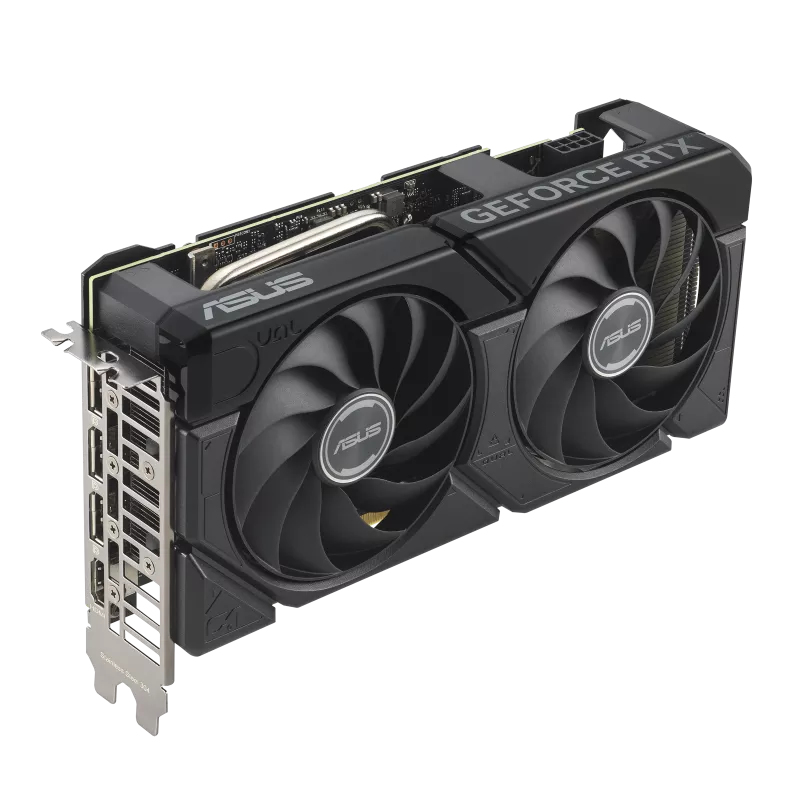

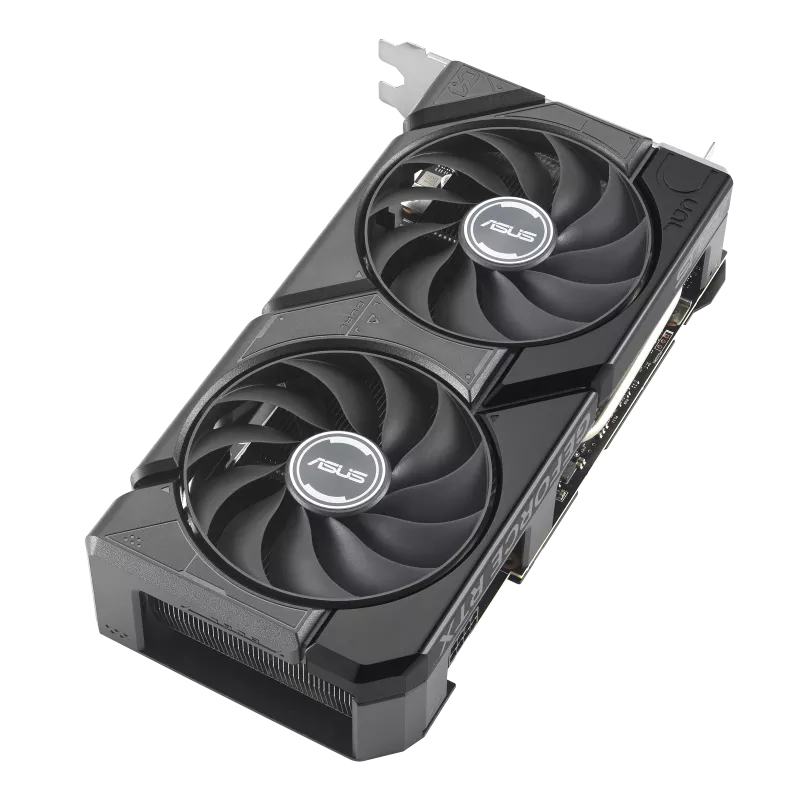

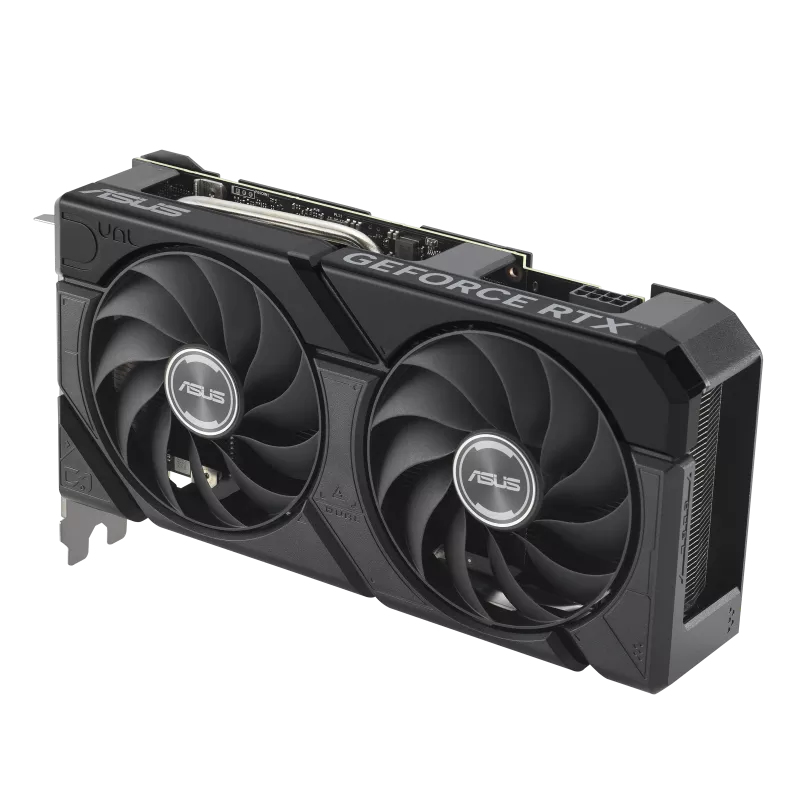

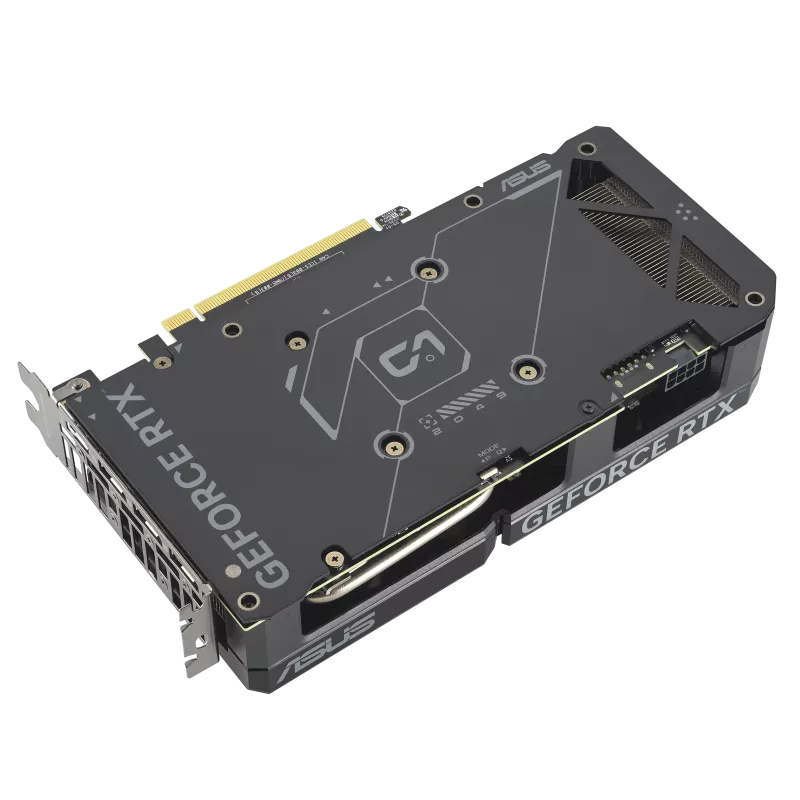

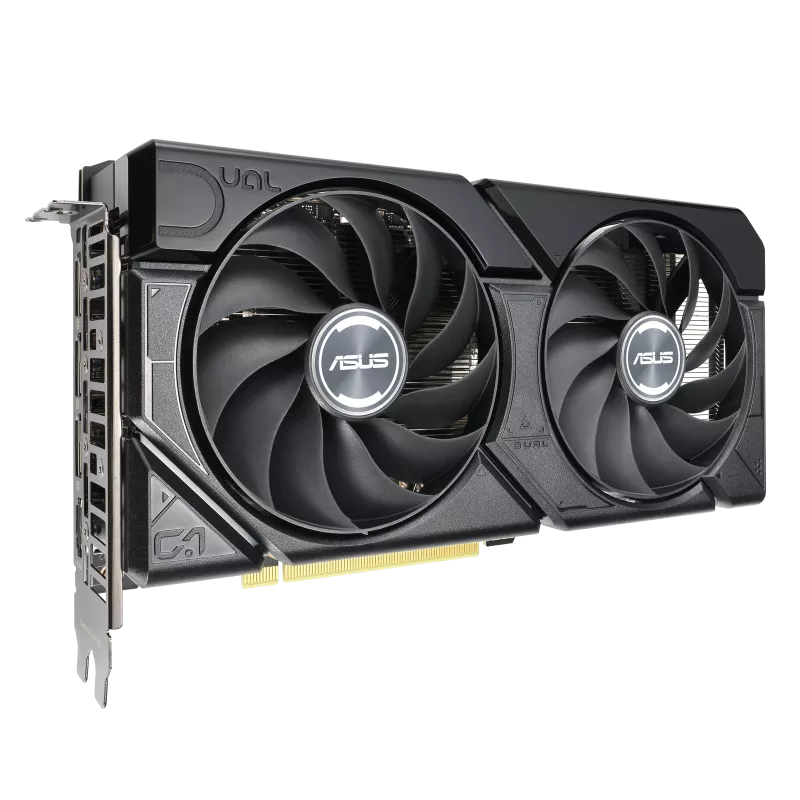

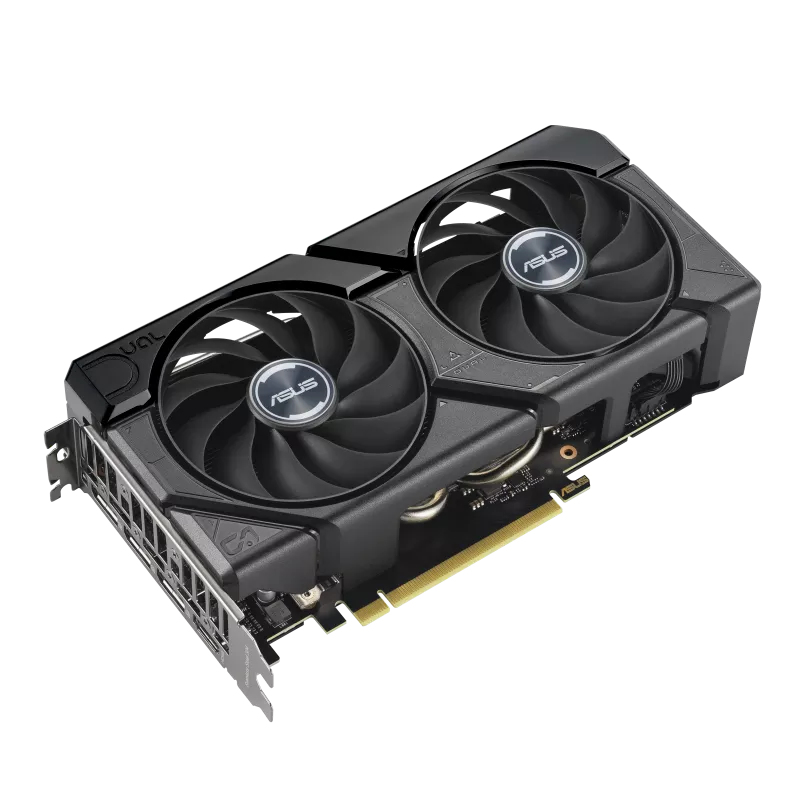

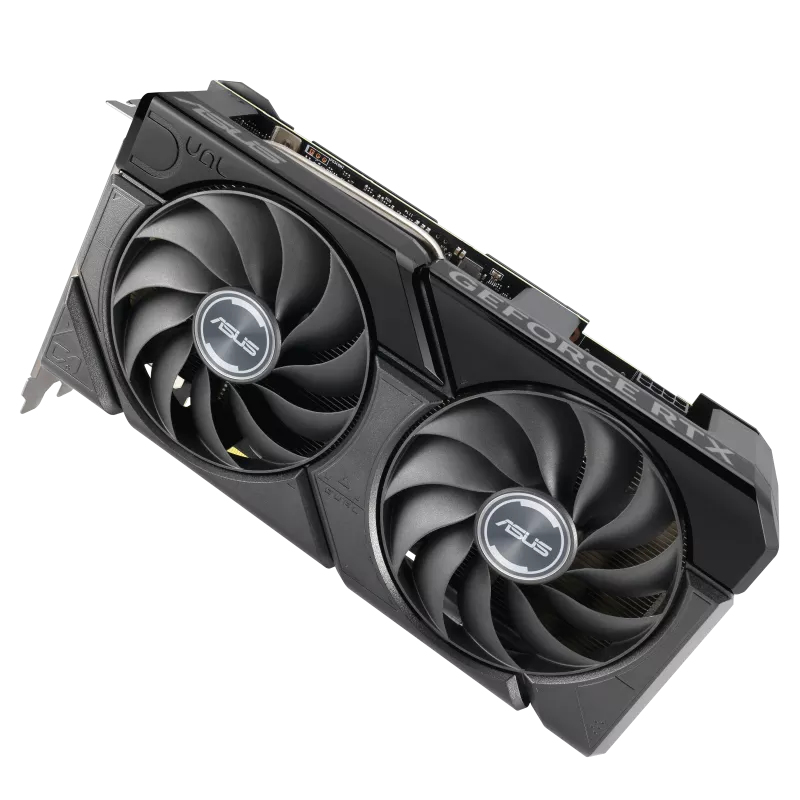

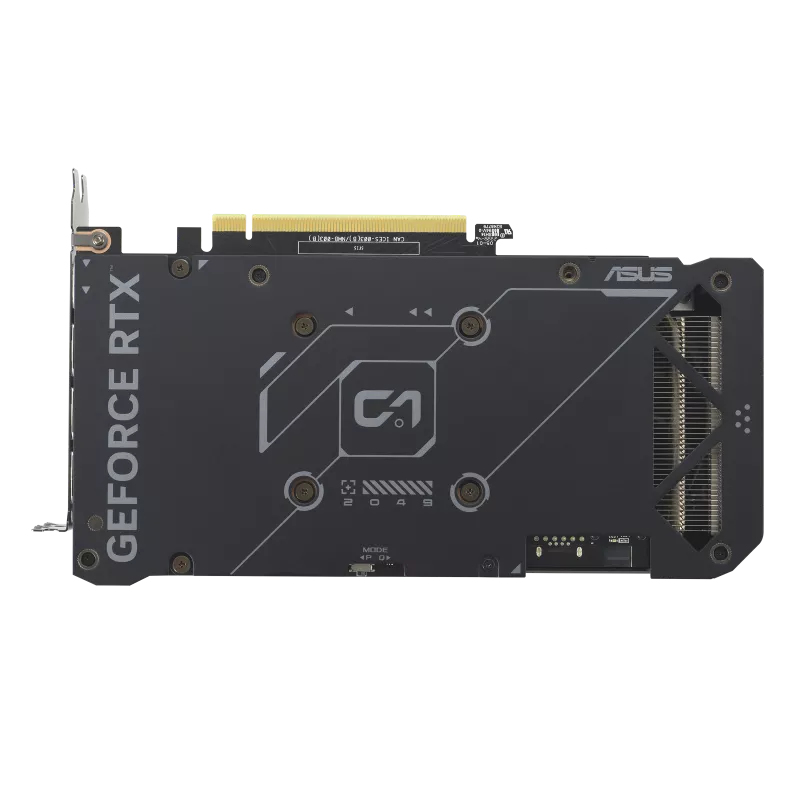

ASUS Dual -RTX4070-O12G-EVO NVIDIA GeForce RTX 4070

Dual -RTX4070-O12G-EVO NVIDIA GeForce RTX 4070

12 GB GDDR6X

Model DUAL-RTX4070-O12G-EVOPart no. 90YV0J15-M0NA00EAN 197105432017

39 specifications Checked today

Weight684 g
ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express 4.0
OpenGL version4.6

See all specifications

Overview

Weight: 684 g
Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express 4.0
OpenGL version: 4.6

Brand: ASUS
Category: GPU
Model: DUAL-RTX4070-O12G-EVO
Part number: 90YV0J15-M0NA00
EAN / UPC: 197105432017, 4711387432006, 4711387432013
Also known as: ASUS Dual -RTX4070-O12G-EVO NVIDIA GeForce RTX 4070 12 GB GDDR6X

Specifications

39 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor boost clock speed	2520 MHz
Processor frequency (OC mode)	2550 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	192 bit

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a

Performance

Specification	Value
OpenGL version	4.6
HDCP	Yes
HDCP version	2.3

Design

Specification	Value
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	2 fan(s)
Number of slots	2.5
Product colour	Black

Power

Specification	Value
Minimum system power supply	650 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Weight	684 g
Length	227.2 mm
Depth	49.6 mm
Height	123.2 mm

Packaging data

Specification	Value
Package width	368 mm
Package depth	220.5 mm
Package height	68 mm
Package weight	1.13 kg
Package type	Box

Packaging content

Specification	Value
Manual	Yes
