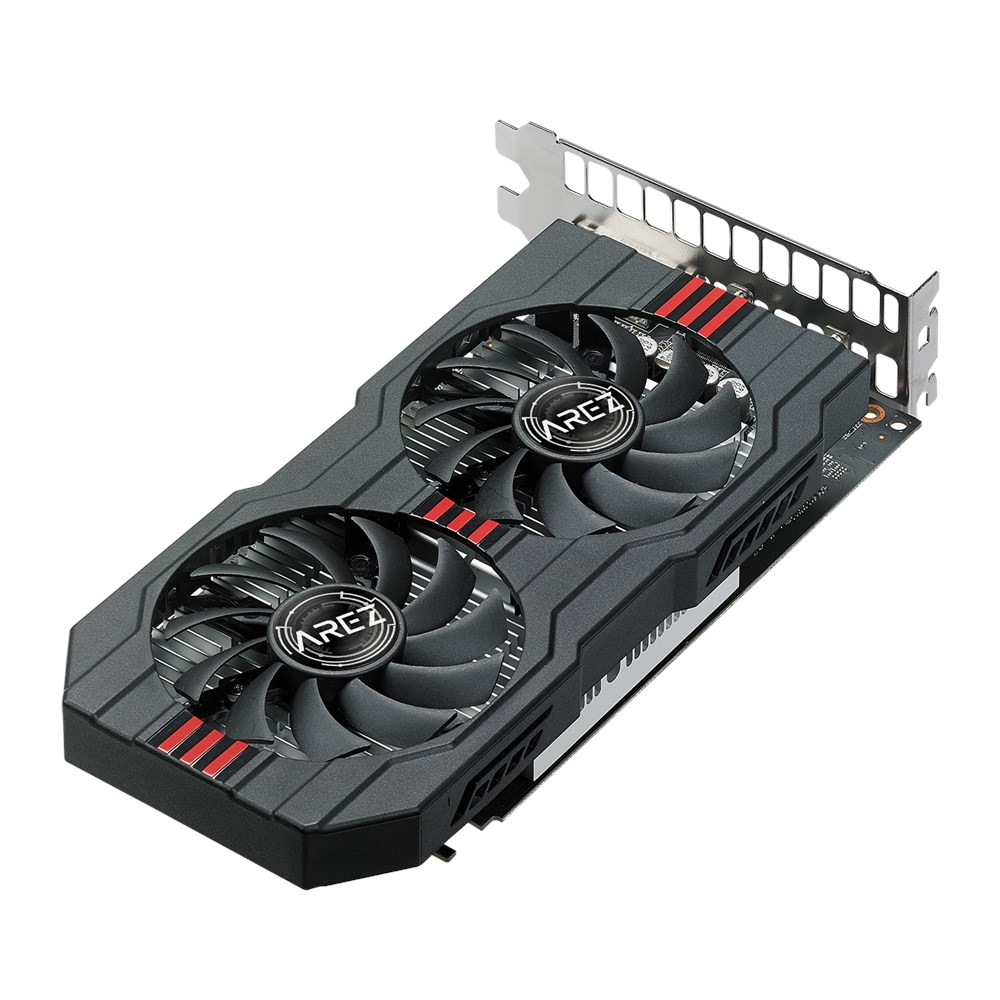

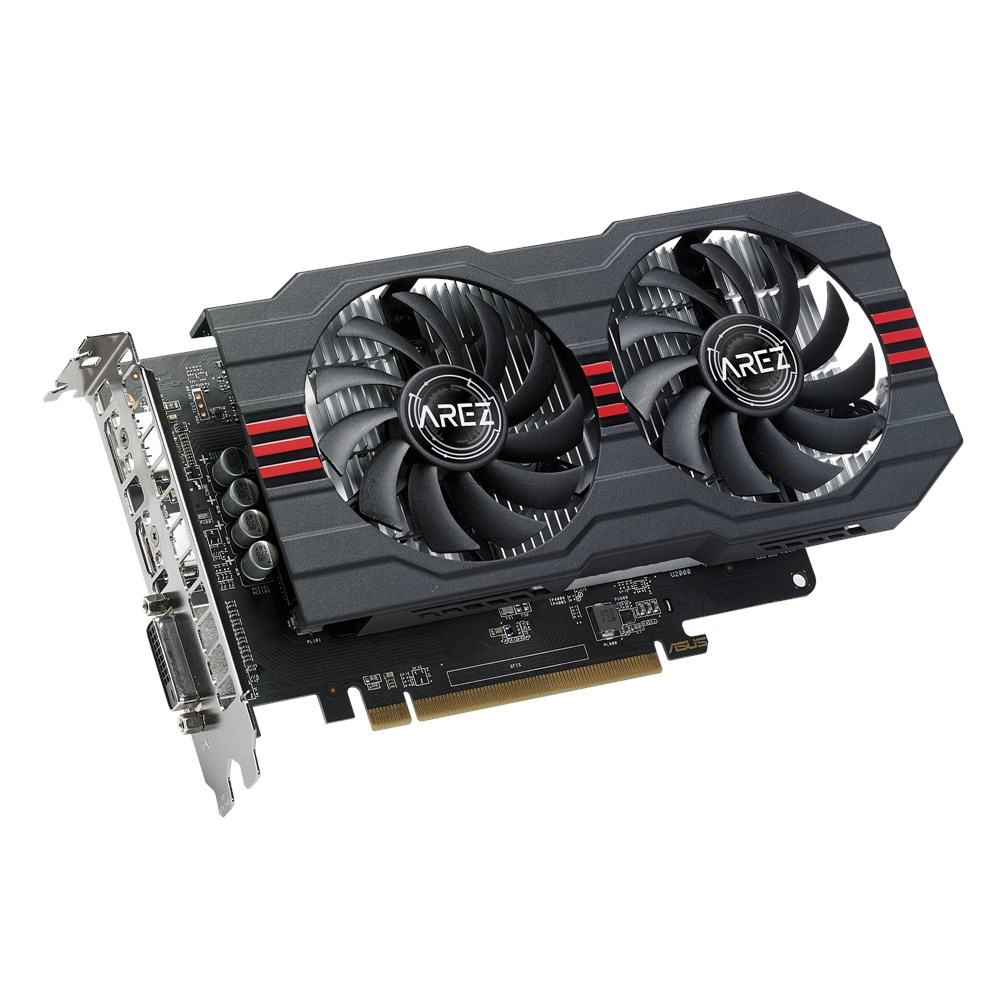

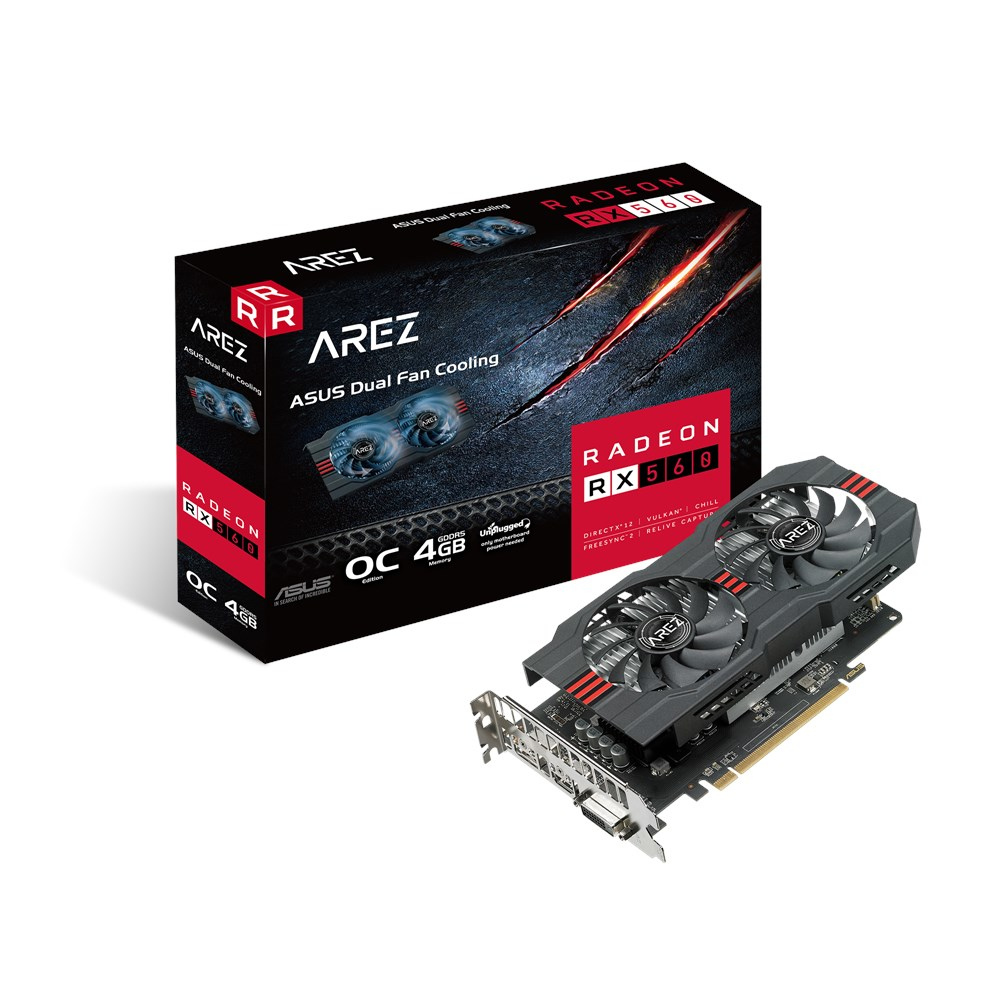

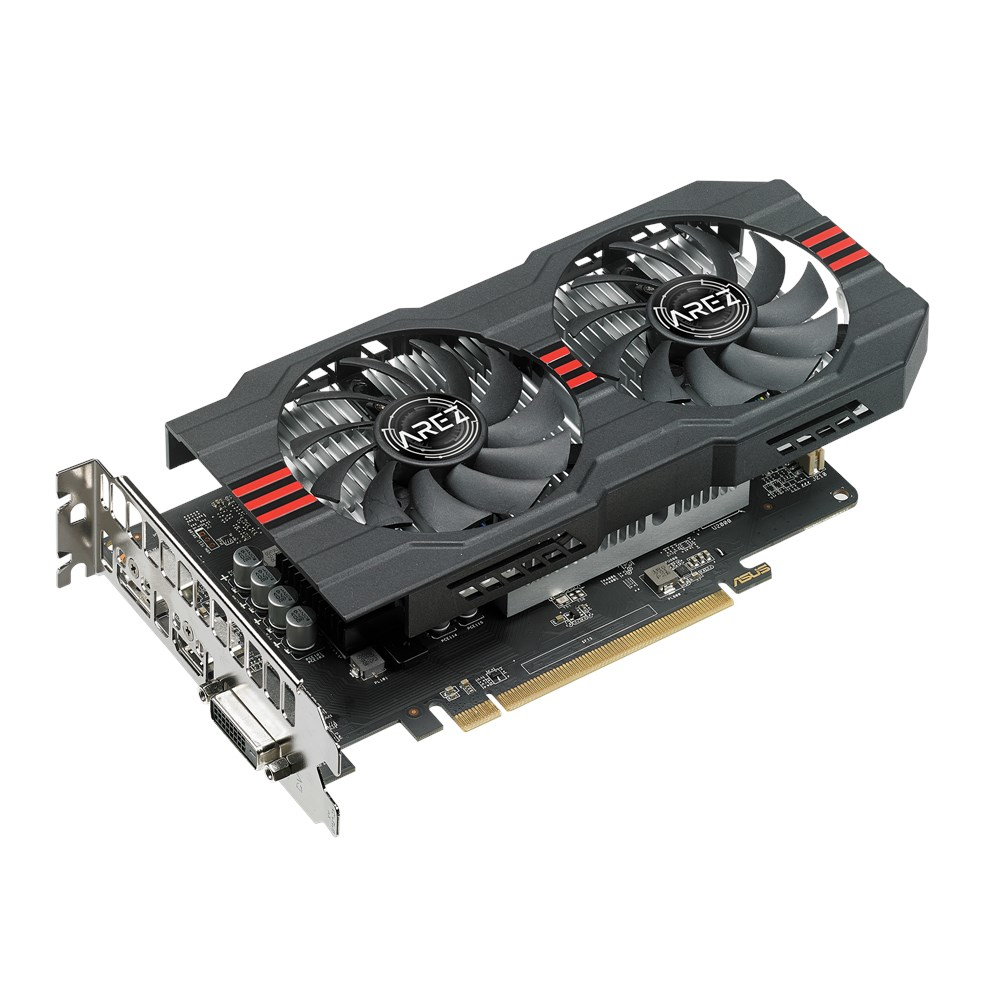

AREZ -RX560-O4G-EVO AMD Radeon RX 560
4 GB GDDR5
Model AREZ-RX560-O4G-EVOPart no. 90YV0AHE-M0NA00EAN 4718017030755
37 specifications Checked today
- ColourBlack, Red
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express x16 3.0
- PhysXNo
- Cooling typeActive
Overview
- Colour
- Black, Red
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- No
- Cooling type
- Active
- Brand
- ASUS
- Category
- GPU
- Model
- AREZ-RX560-O4G-EVO
- Part number
- 90YV0AHE-M0NA00
- EAN / UPC
- 4718017030755
- Also known as
- ASUS AREZ -RX560-O4G-EVO AMD Radeon RX 560 4 GB GDDR5
Specifications
37 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 560 |
| Maximum resolution | 5120 x 2880 pixels |
| CUDA | No |
| Processor frequency | 1149 MHz |
| Processor boost clock speed (OC mode) | 1197 MHz |
| FireStream | No |
| Maximum displays per videocard | 3 |
| Stream processors | 896 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory clock speed | 6000 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Product colour | Black, Red |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 220 mm |
| Depth | 39 mm |
| Height | 115 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Bundled software | ASUS GPU Tweak II |
