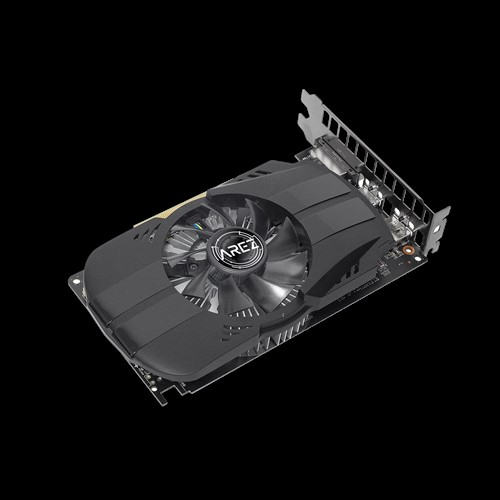

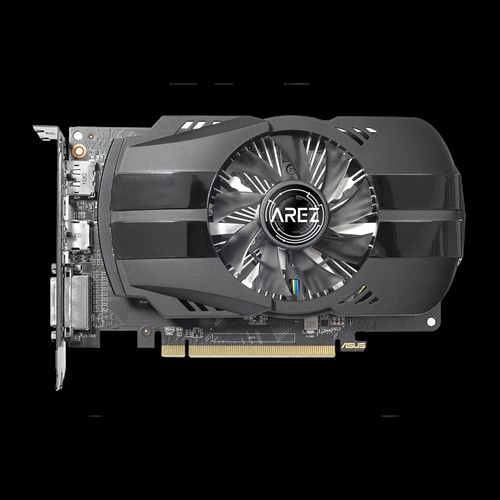

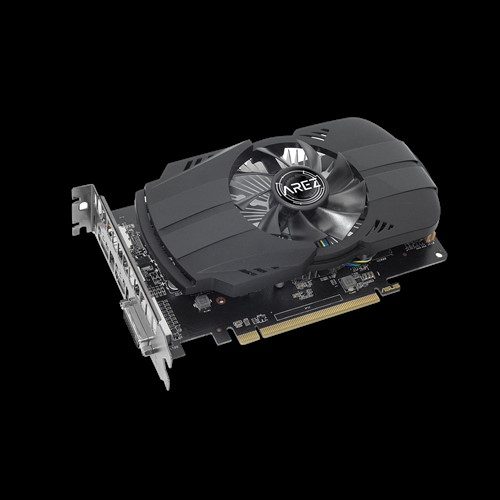

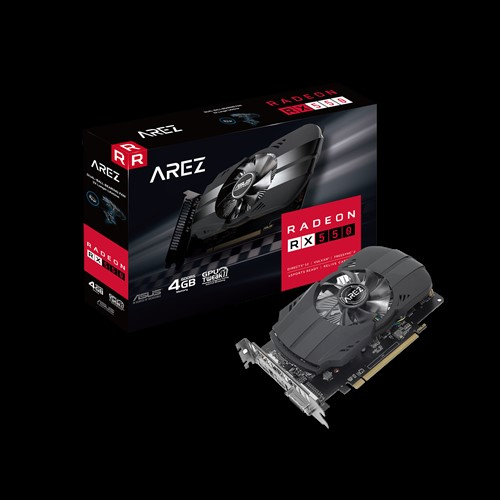

AREZ -PH-RX550-4G-M7 AMD Radeon RX 550
4 GB GDDR5
Model AREZ-PH-RX550-4G-M7Part no. 90YV0AG5-M0NA00EAN 4718017023559
33 specifications Checked today
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI
- TV tuner integratedNo
- Minimum system power supply400 W
- Length192 mm
Overview
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI
- TV tuner integrated
- No
- Minimum system power supply
- 400 W
- Length
- 192 mm
- Brand
- ASUS
- Category
- GPU
- Model
- AREZ-PH-RX550-4G-M7
- Part number
- 90YV0AG5-M0NA00
- EAN / UPC
- 4718017023559
- Also known as
- ASUS AREZ -PH-RX550-4G-M7 AMD Radeon RX 550 4 GB GDDR5
Specifications
33 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 550 |
| Maximum resolution | 5120 x 2880 pixels |
| CUDA | No |
| Processor frequency | 1071 MHz |
| FireStream | No |
| Maximum displays per videocard | 3 |
| Parallel processing technology support | Not supported |
| Stream processors | 640 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory clock speed | 7000 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 192 mm |
| Depth | 39 mm |
| Height | 115 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
| Bundled software | ASUS GPU Tweak II & Driver |
