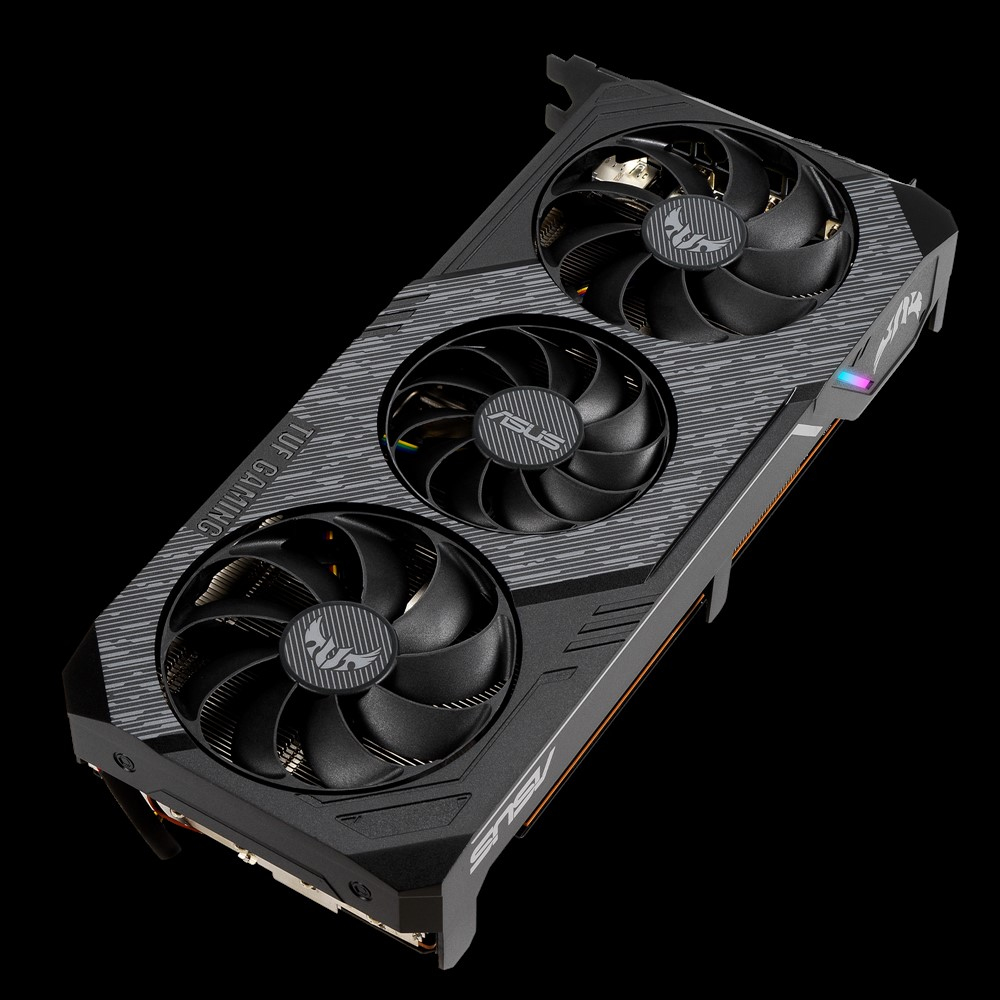

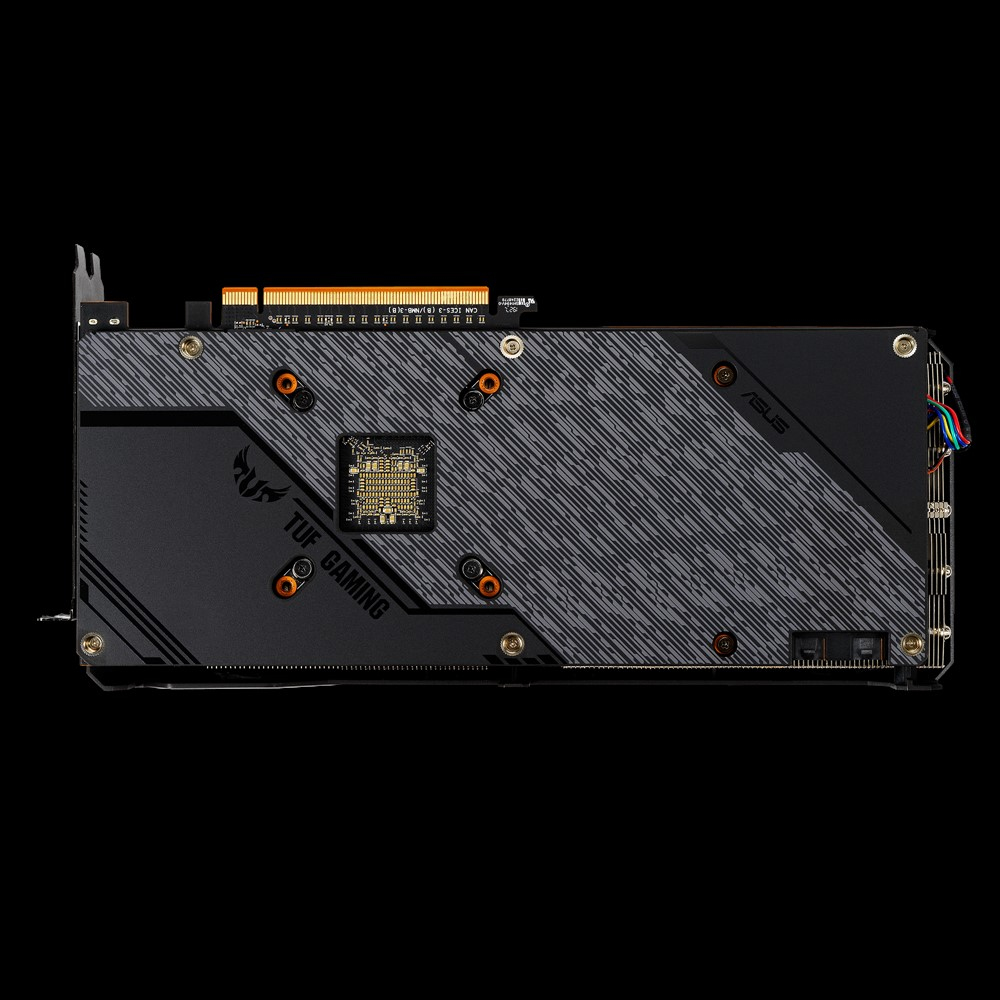

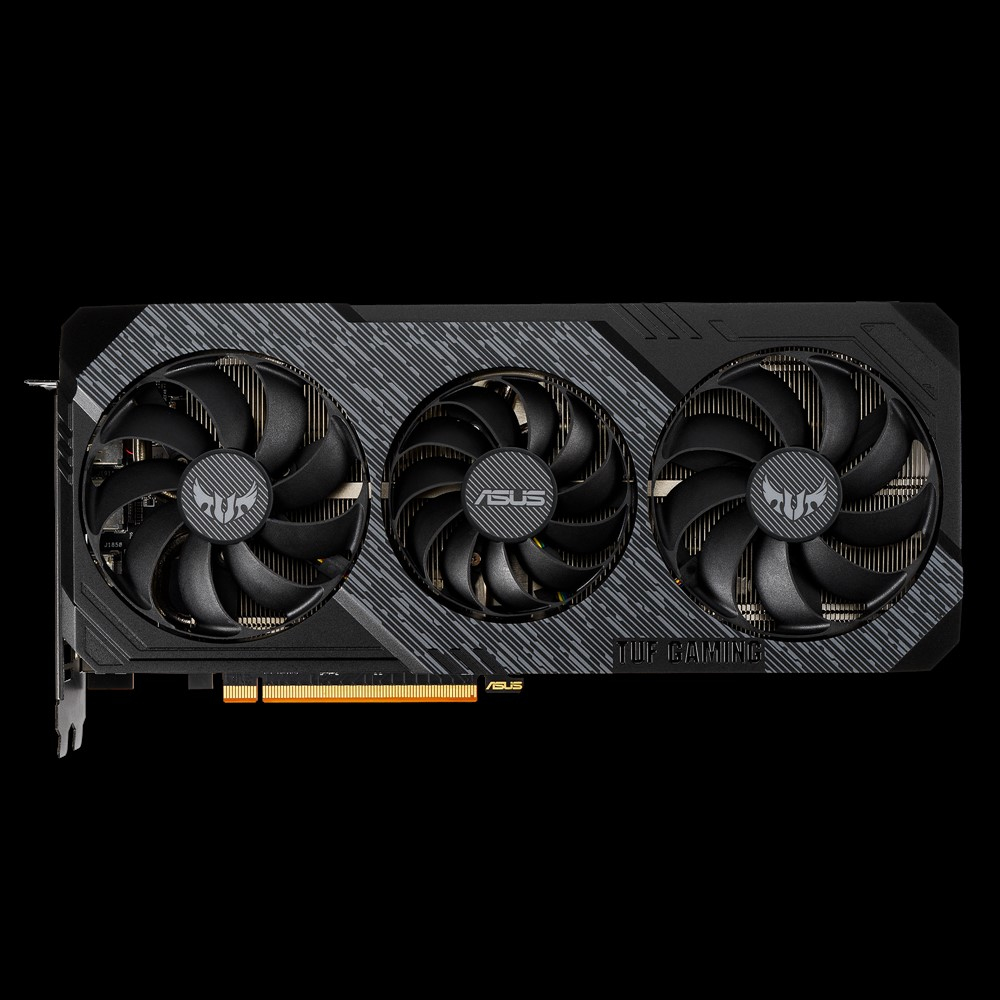

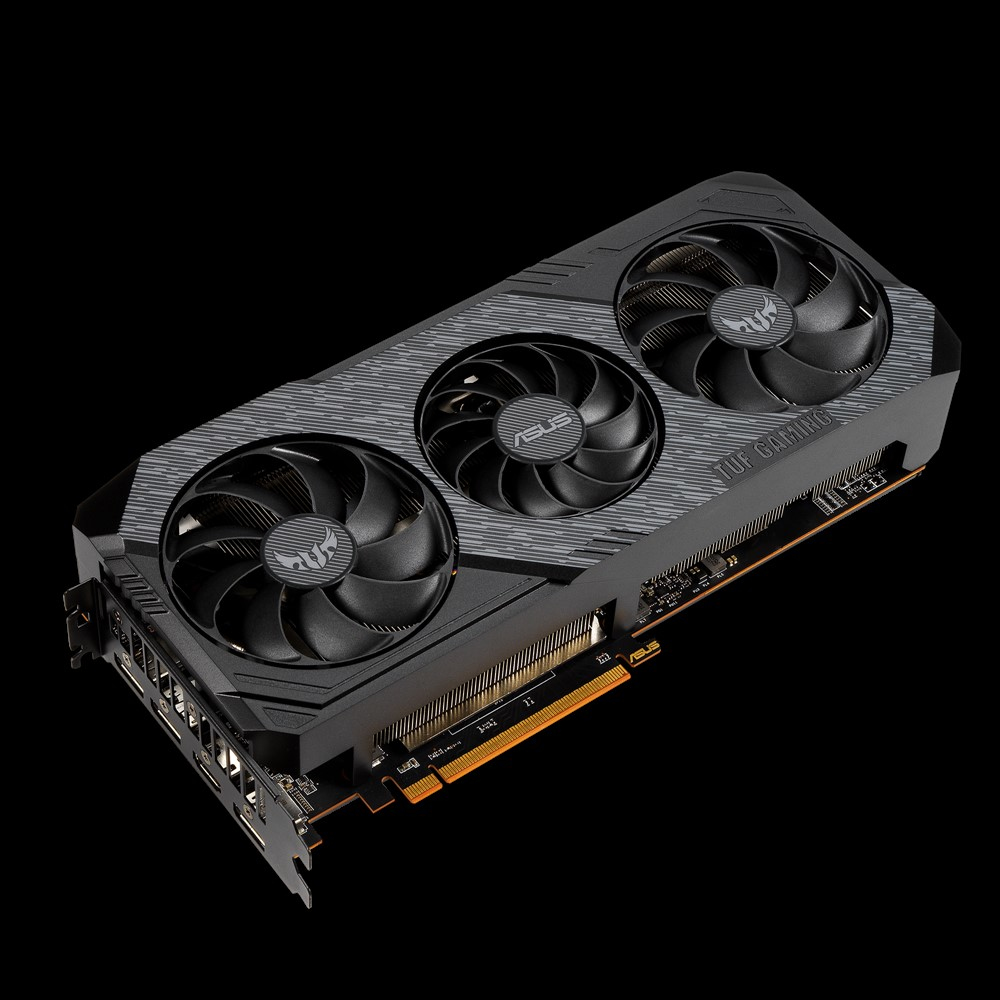

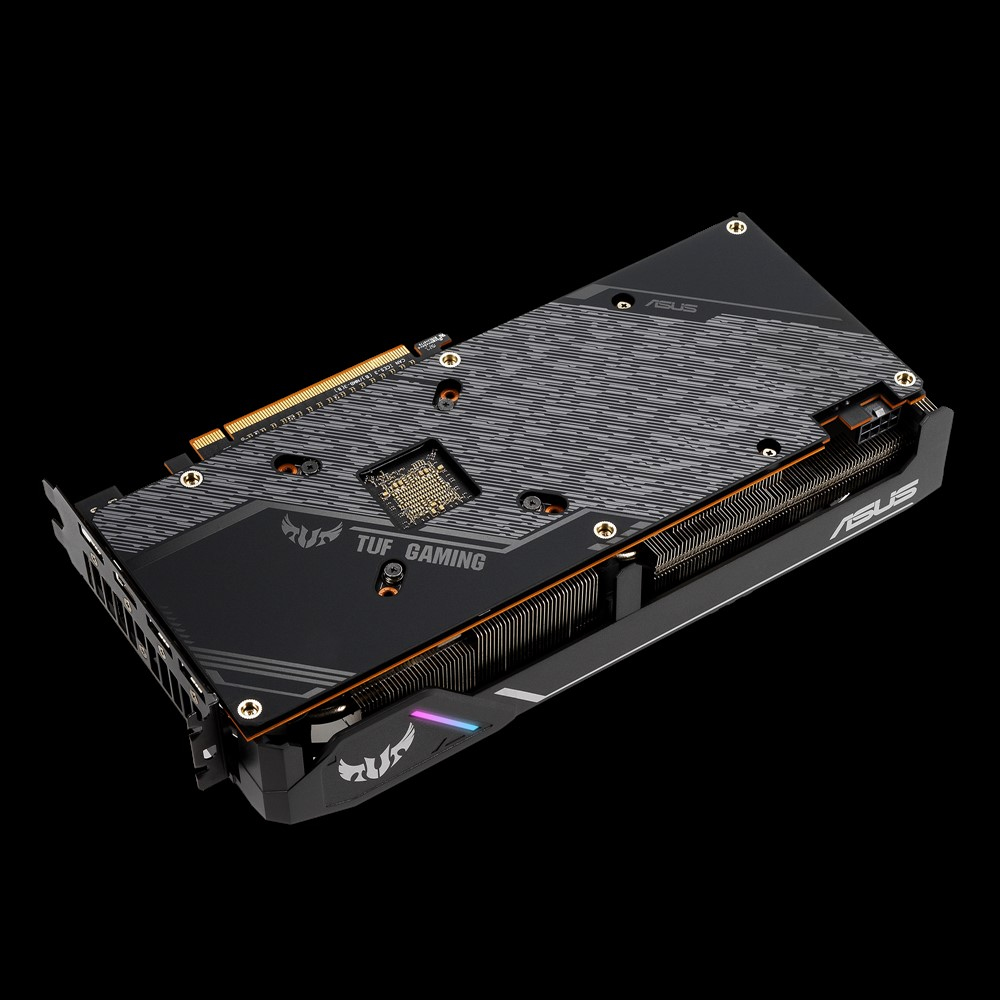

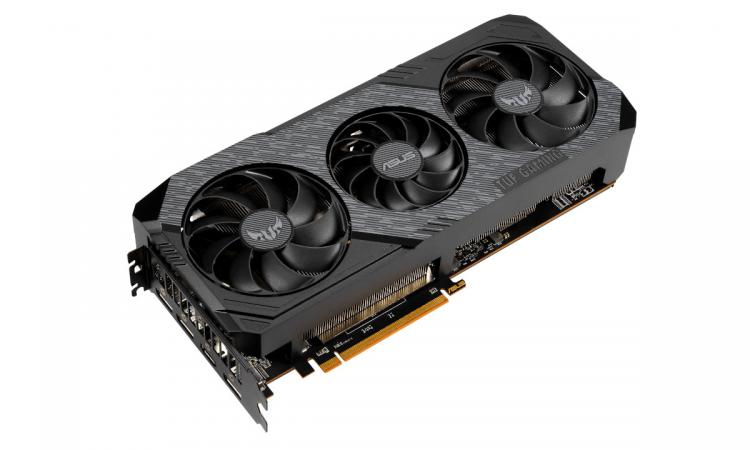

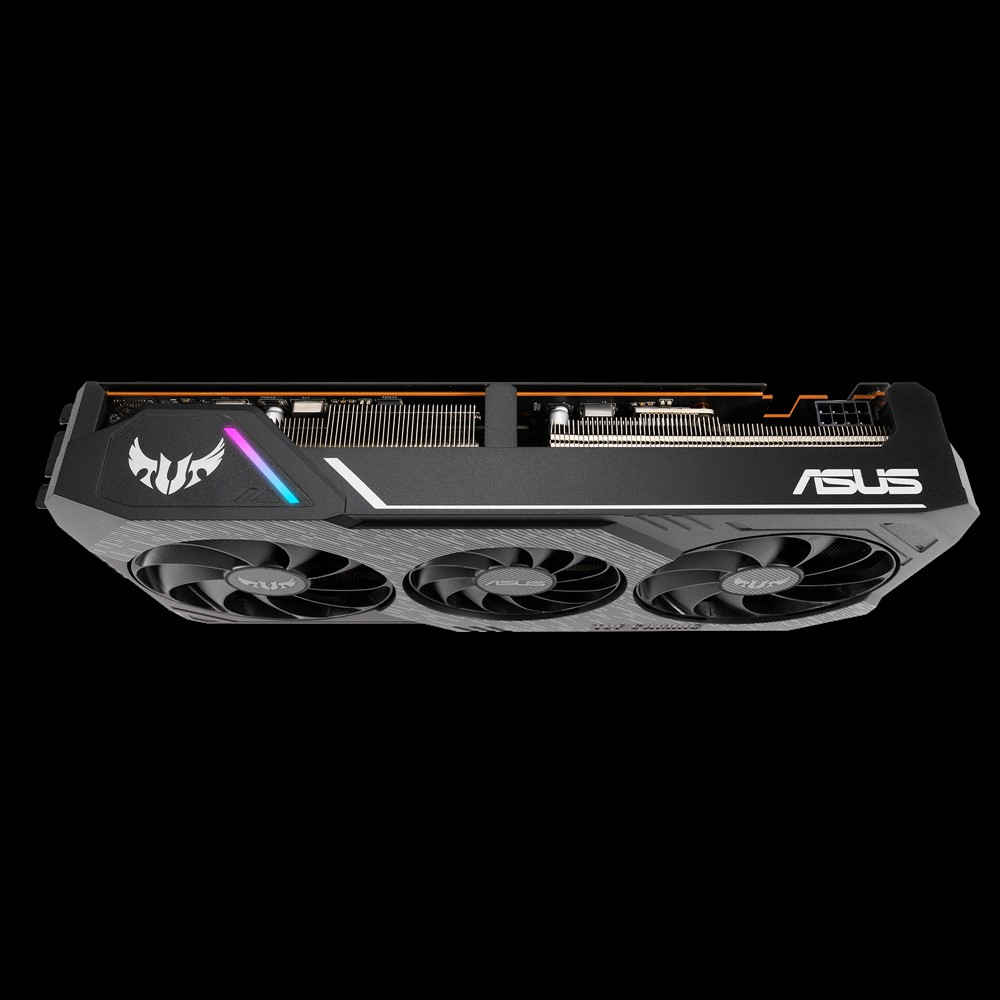

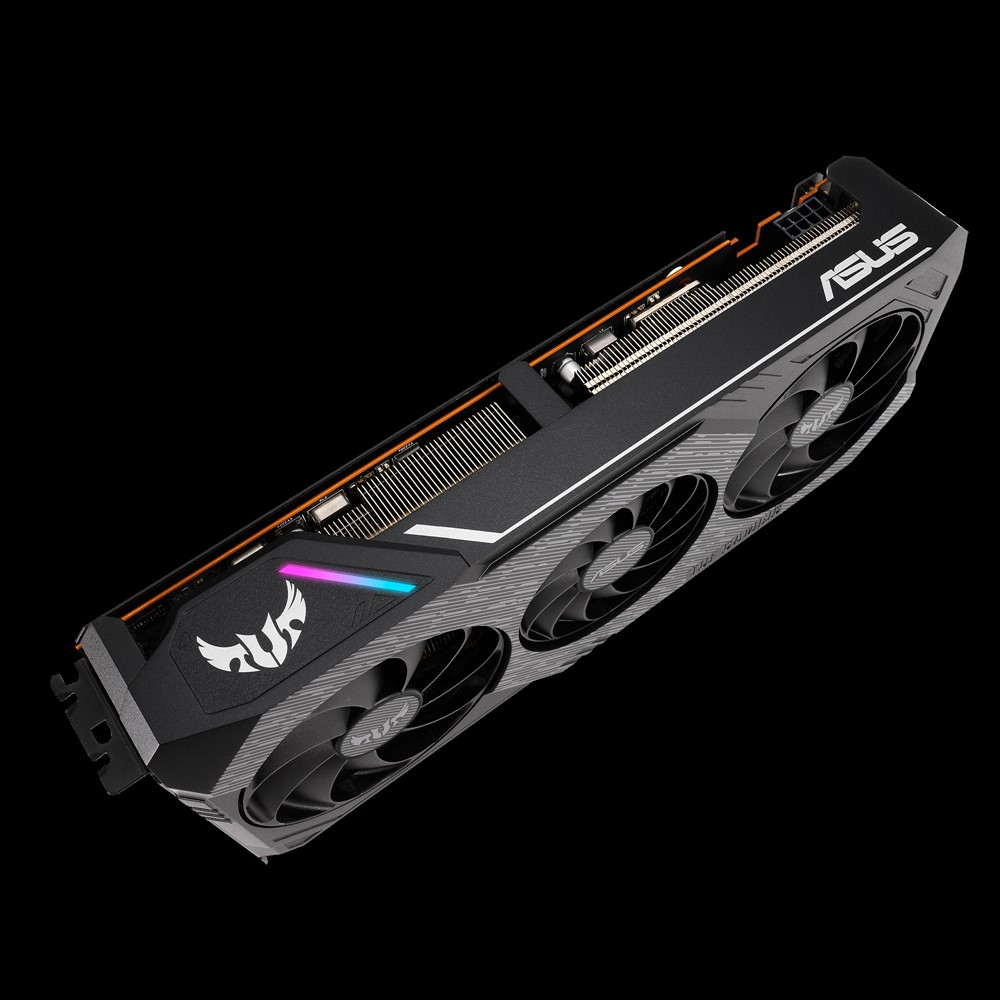

TUF Gaming 3-RX5600XT-O6G-EVO-GAMING AMD Radeon RX 5600 XT
6 GB GDDR6
Model 3-RX5600XT-O6G-EVO-GAMINGPart no. 90YV0EA0-M0NA00EAN 192876610985
46 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory6 GB
- Interface typePCI Express x16 4.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express x16 4.0
- PhysX
- No
- Brand
- ASUS
- Category
- GPU
- Model
- 3-RX5600XT-O6G-EVO-GAMING
- Part numbers
- 90YV0EA0-M0NA00, TUF 3-RX5600XT-O6G-EVO-GA
- EAN / UPC
- 192876610985, 4718017610988
- Also known as
- ASUS TUF Gaming 3-RX5600XT-O6G-EVO-GAMING AMD Radeon RX 5600 XT 6 GB GDDR6
Specifications
46 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5600 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1615 MHz |
| Processor boost clock speed | 1750 MHz |
| Processor frequency (OC mode) | 1660 MHz |
| Processor boost clock speed (OC mode) | 1770 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 2304 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 12 GB/s |

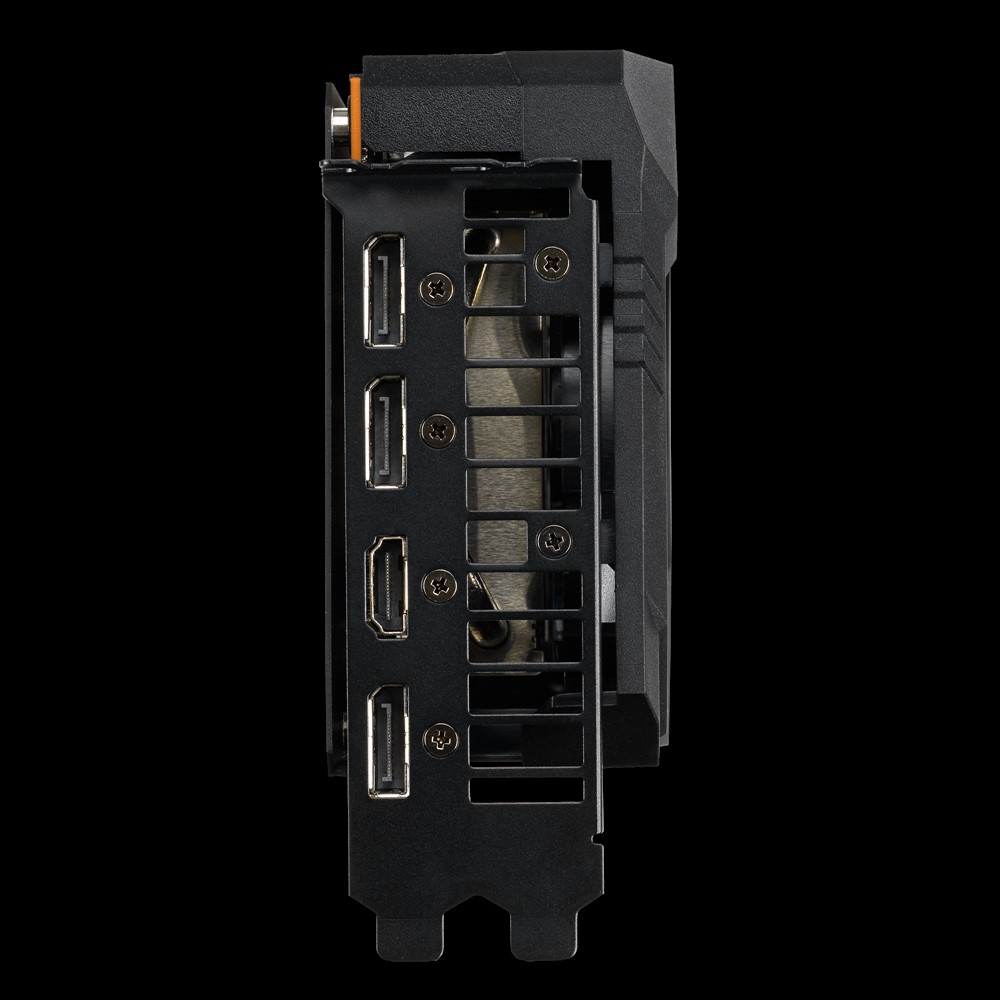

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.7 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 282.6 mm |
| Depth | 53.8 mm |
| Height | 128.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
