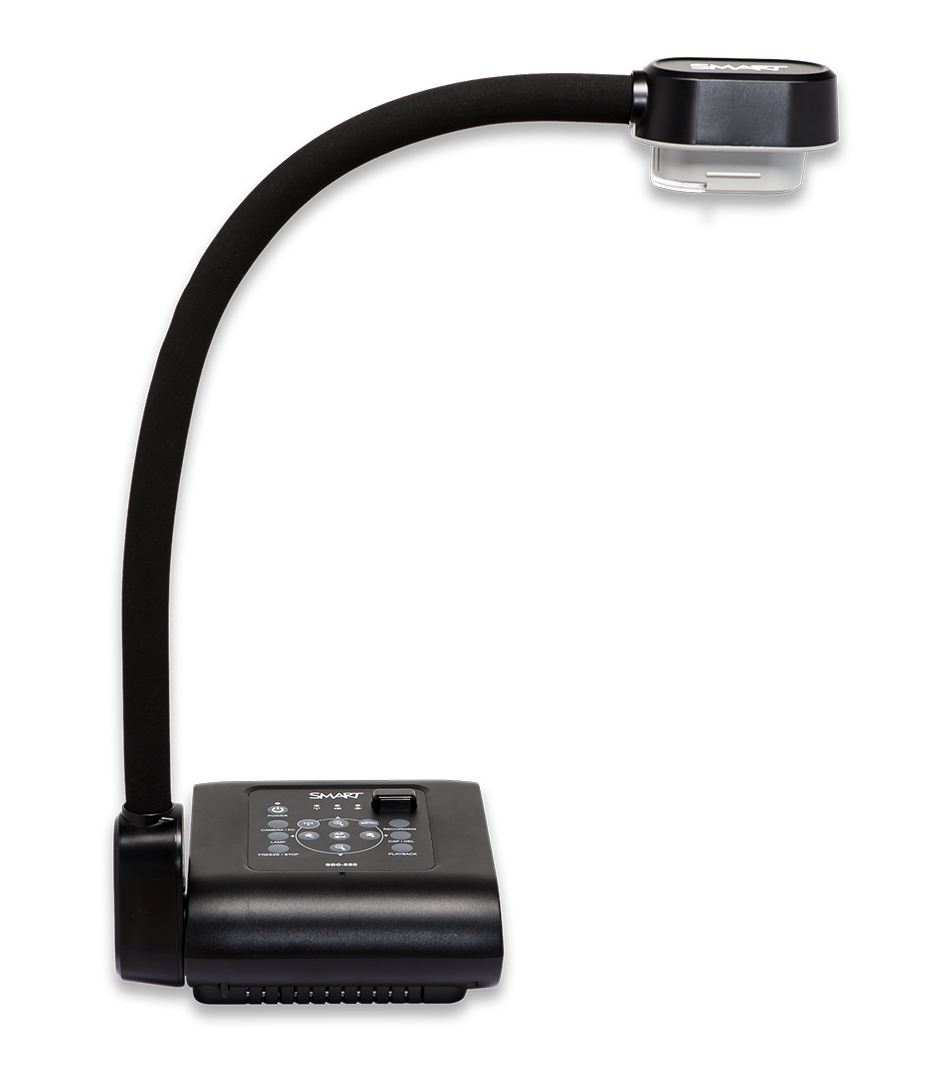

SMART Document Camera 550
Model SMART Document Camera 550Part no. SDC-550EAN 5415247165705
30 specifications
- ConnectivityWi-Fi
- Weight2.44 kg
- ColourBlack
- Maximum frame rate30 fps
- Auto focusYes
- Memory capacity (images)240
Overview
- Connectivity
- Wi-Fi
- Weight
- 2.44 kg
- Colour
- Black
- Maximum frame rate
- 30 fps
- Auto focus
- Yes
- Memory capacity (images)
- 240
- Brand
- SMART Technologies
- Category
- Document Camera
- Model
- SMART Document Camera 550
- Part number
- SDC-550
- EAN / UPC
- 5415247165705
- Also known as
- SMART Technologies SMART 550 document camera Black Wi-Fi
Specifications
30 specifications in 9 groups
Camera
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 12x |
| Shooting area (WxD) | 445 x 248 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | Wi-Fi |
| USB connector type | Mini-USB B |
| Audio output | Yes |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Memory capacity (images) | 240 |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Focus | Auto/Manual |
| Image quality adjustment | Brightness |
| Lamp type | LED |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Battery type | Built-in battery |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 30 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 201 mm |
| Depth | 381 mm |
| Height | 526 mm |
| Weight | 2.44 kg |
