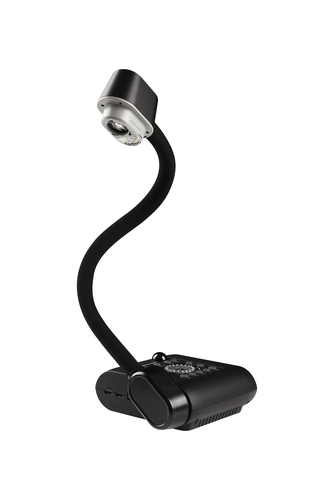

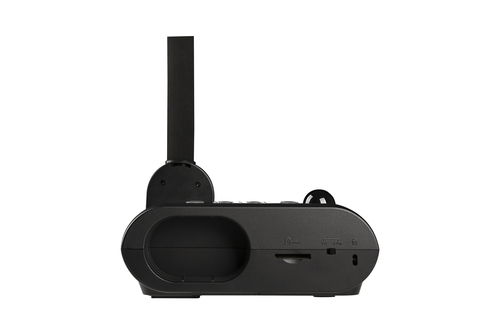

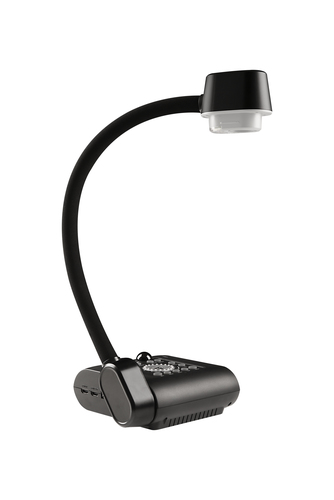

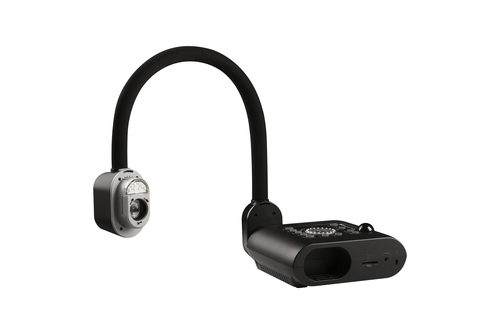

F50-8M document camera Black 25.4
3.2 mm (1 / 3.2") CMOS USB 2.0
Model F50-8MPart no. 61P0J7P000AEEAN 4719552124107
63 specifications
- ConnectivityUSB 2.0
- Weight8.02 kg
- ColourBlack
- Effective sensor resolution8 MP
- Auto focusYes
- Power supply typeDC
Overview
- Connectivity
- USB 2.0
- Weight
- 8.02 kg
- Colour
- Black
- Effective sensor resolution
- 8 MP
- Auto focus
- Yes
- Power supply type
- DC
- Brand
- AVer
- Category
- Document Camera
- Model
- F50-8M
- Part number
- 61P0J7P000AE
- EAN / UPC
- 4719552124107
- Also known as
- AVer F50-8M document camera Black 25.4 / 3.2 mm (1 / 3.2") CMOS USB 2.0
Specifications
63 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 8 MP |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Sensor type | CMOS |
| Supported graphics resolutions | 720 x 480, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1920 x 1080 (HD 1080) |
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Video recording | Yes |
| Maximum frame rate | 60 fps |
| White balance | Auto, Manual |
| Light exposure modes | Auto, Manual |
| Image freeze | Yes |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 10x |
| Digital zoom | 12x |
| Shooting area (WxD) | 437 x 246 mm |

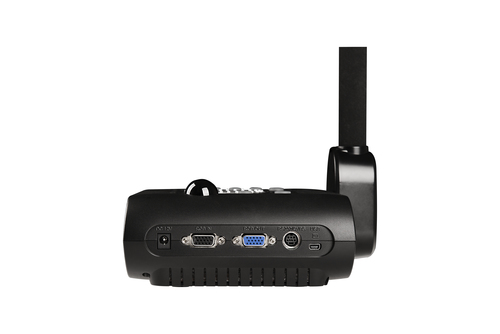

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB connector type | Mini-USB, USB Type-A |
| Audio output | Yes |
| Composite video out | 1 |
| DC-in jack | Yes |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SDHC |
| Maximum memory card size | 32 GB |
| Memory capacity (images) | 80 |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black |

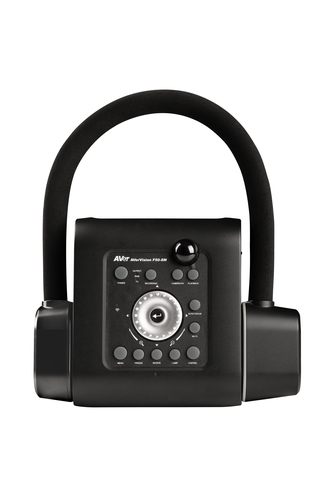

| Control type | Buttons |
| Cable lock slot | Yes |
| Built-in microphone | Yes |
| Camera movement | Manual |
| Country of origin | Taiwan |
| Lamp type | LED |
| Photo effects | Black&White, Mirror, Negative film, Split screen |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Operating voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 365 mm |
| Depth | 300 mm |
| Height | 193 mm |
| Weight | 8.02 kg |
| Dimensions folded (WxDxH) | 250 x 305 x 77 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 310 mm |
| Package depth | 384 mm |
| Package height | 394 mm |
| Package weight | 8.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Microscope adapter included | Yes |
| Remote control included | Yes |
| Remote control batteries included | Yes |
| Cables included | Mini-USB, VGA |
| User guide | Yes |
| Warranty card | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 50 pc(s) |
