ELP-DC13 document camera White 25.4
2.7 mm (1 / 2.7") CMOS USB 1.1
Model ELP-DC13Part no. V12H757053EAN 9314020621079
46 specifications
- ConnectivityUSB 1.1
- Weight2.5 kg
- ColourWhite
- Optical sensor size25.4 / 2.7 mm (1 / 2.7")
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 1.1
- Weight
- 2.5 kg
- Colour
- White
- Optical sensor size
- 25.4 / 2.7 mm (1 / 2.7")
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- Epson
- Category
- Document Camera
- Model
- ELP-DC13
- Part number
- V12H757053
- EAN / UPC
- 9314020621079
- Also known as
- Epson ELP-DC13 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 1.1
Specifications
46 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 16x |
| Shooting area (WxD) | 297 x 420 mm |

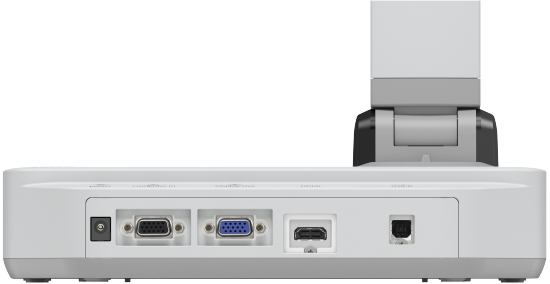

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 1.1 |
| USB connector type | USB Type-B |
| DC-in jack | Yes |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | White |
| Horizontal rotation angle | -90 - 90° |
| Vertical rotation angle | -90 - 90° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in microphone | Yes |
| Bundled software | Easy Interactive Tools, TWAIN driver for Epson Document Camera (for Windows) |
| Country of origin | Philippines |
| Illumination | Yes |
| Image quality adjustment | Brightness, Contrast |
| Image viewer | Yes |
| Lamp type | LED |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 13 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1, Windows Vista |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 445 mm |
| Package height | 235 mm |
| Package weight | 4.58 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, VGA |
| Carrying case | Yes |
| Manual | Yes |
