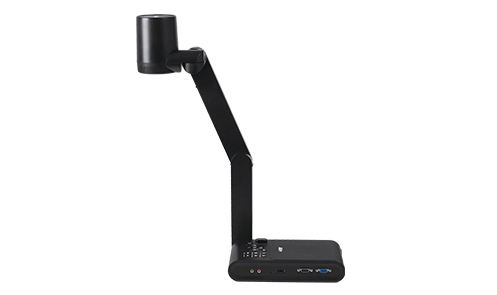

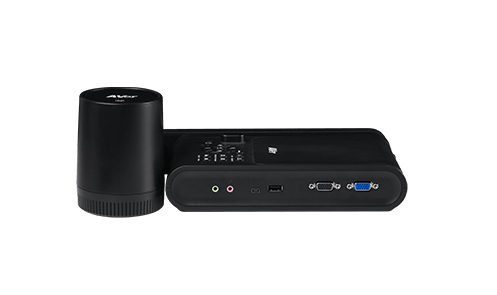

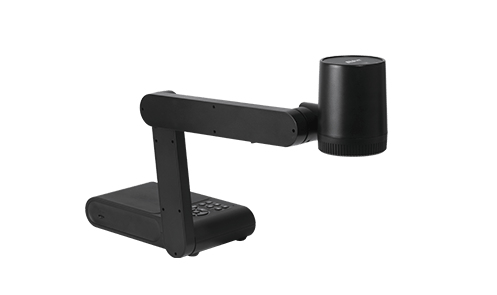

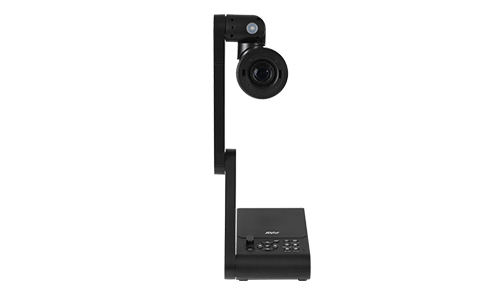

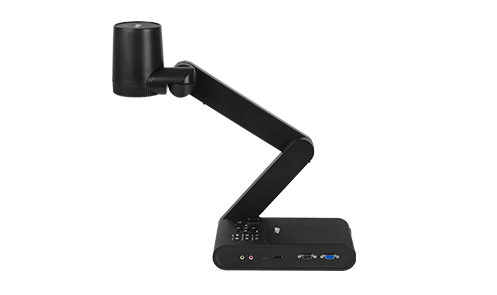

M90UHD document camera Black 25.4
3.06 mm (1 / 3.06") CMOS USB 2.0
Model M90UHDPart no. 61PM500000ABEAN 4719552126309
53 specifications
- ConnectivityUSB 2.0
- Weight2.2 kg
- ColourBlack
- Effective sensor resolution13 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 2.0
- Weight
- 2.2 kg
- Colour
- Black
- Effective sensor resolution
- 13 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- AVer
- Category
- Document Camera
- Model
- M90UHD
- Part numbers
- 61PM500000AB, 61PM500000AF
- EAN / UPC
- 4719552126309
- Also known as
- AVer M90UHD document camera Black 25.4 / 3.06 mm (1 / 3.06") CMOS USB 2.0
Specifications
53 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 13 MP |
| Optical sensor size | 25.4 / 3.06 mm (1 / 3.06") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 60 fps |
| White balance | Auto, Manual |
| Light exposure modes | Auto, Manual |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 14x |
| Digital zoom | 23x |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB connector type | Mini-USB B, USB Type-A |
| Audio output | Yes |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Black |
| Horizontal rotation angle | 0 - 180° |
| Built-in microphone | Yes |
| Country of origin | Taiwan |
| Photo effects | Black&White, Negative film |
| Zoom capability | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 10 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176 mm |
| Depth | 319 mm |
| Height | 112 mm |
| Weight | 2.2 kg |
| Dimensions folded (WxDxH) | 176 x 319 x 112 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 377 mm |
| Package depth | 273 mm |
| Package height | 242 mm |
| Package weight | 3.7 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Remote control included | Yes |
| Remote control batteries included | Yes |
| Cables included | AC, USB, VGA |
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 48 pc(s) |
