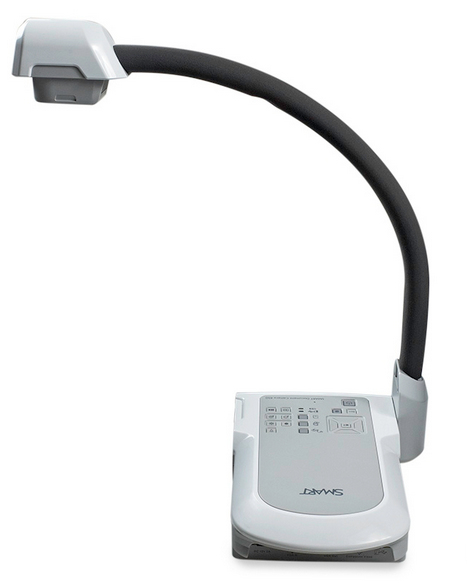

SDC-450 document camera Black, Grey, White 25.4
3.2 mm (1 / 3.2") USB 2.0
Model SDC-450EAN 5054533735668
31 specifications
- ConnectivityUSB 2.0
- ColourBlack, Grey, White
- Effective sensor resolution5 MP
- Maximum focal length (f)6.8 mm
- Power supply typeAC
- Operating temperature (T-T)0 - 35 °C
Overview
- Connectivity
- USB 2.0
- Colour
- Black, Grey, White
- Effective sensor resolution
- 5 MP
- Maximum focal length (f)
- 6.8 mm
- Power supply type
- AC
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- SMART Technologies
- Category
- Document Camera
- Model
- SDC-450
- Part number
- SDC-450
- EAN / UPC
- 5054533735668, 5415247051923
- Also known as
- SMART Technologies SDC-450 document camera Black, Grey, White 25.4 / 3.2 mm (1 / 3.2") USB 2.0
Specifications
31 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 5 MP |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
Lens system
| Specification | Value |
|---|---|
| Maximum focal length (f) | 6.8 mm |
| Auto focus | Yes |
| Optical zoom | 8x |
| Digital zoom | 10x |
| Shooting area (WxD) | 400 x 300 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | USB Type-B |
| Audio output | Yes |
| DVI output ports | 1 |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Technical details
| Specification | Value |
|---|---|
| Product colour | Black, Grey, White |
| Cable lock slot | Yes |
| Built-in microphone | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 12 V |
| Power consumption | 21.6 mA |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pr |
| Mac operating systems supported | Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 30 - 85% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, VGA |
| Manual | Yes |
| User guide | Yes |
