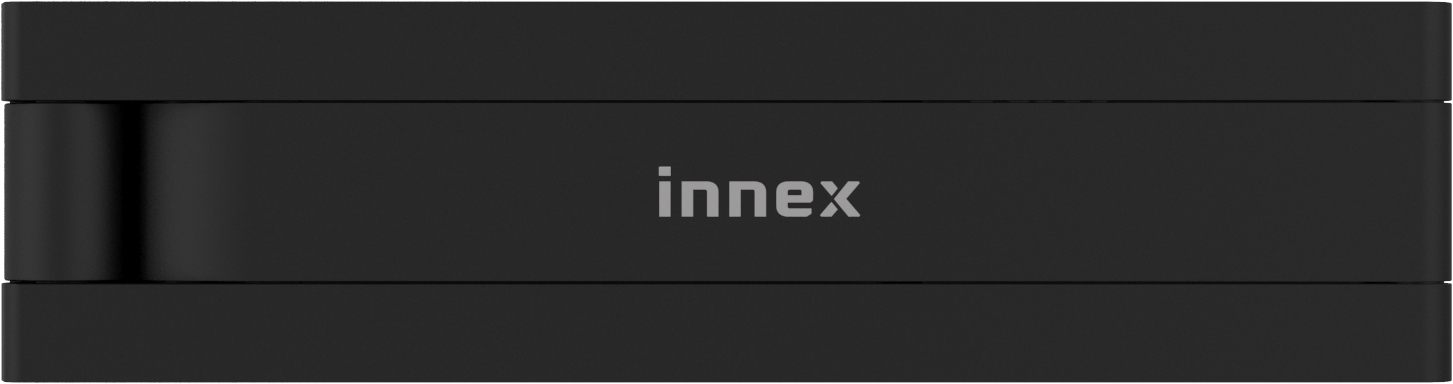

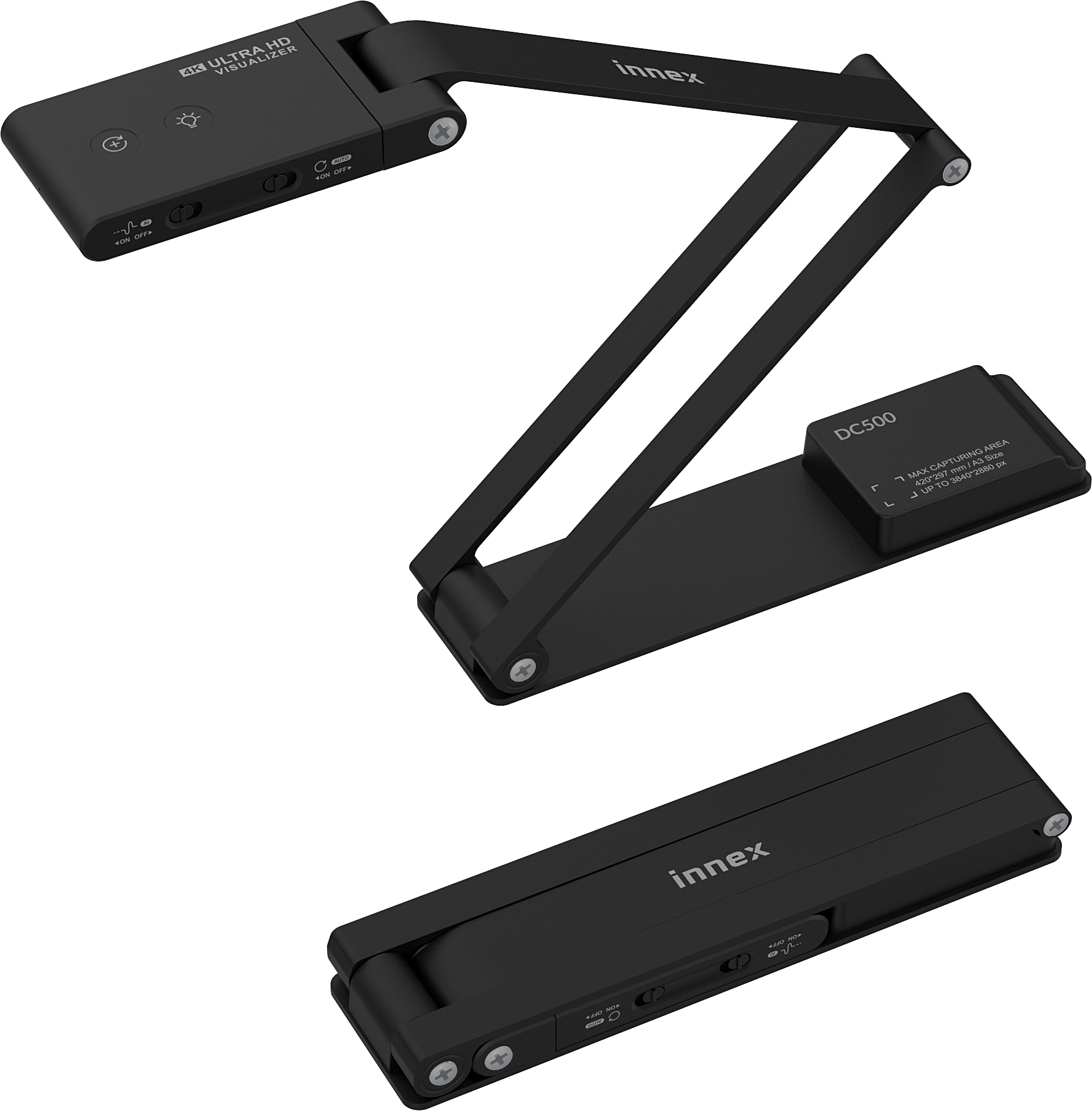

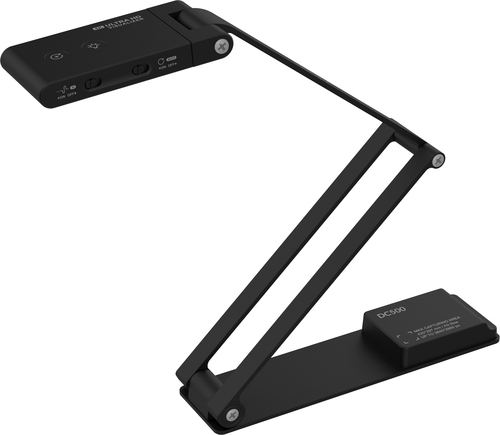

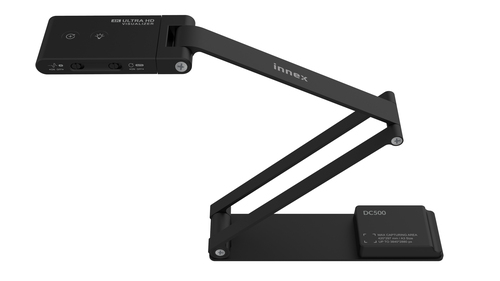

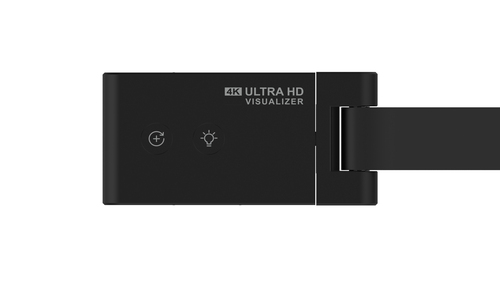

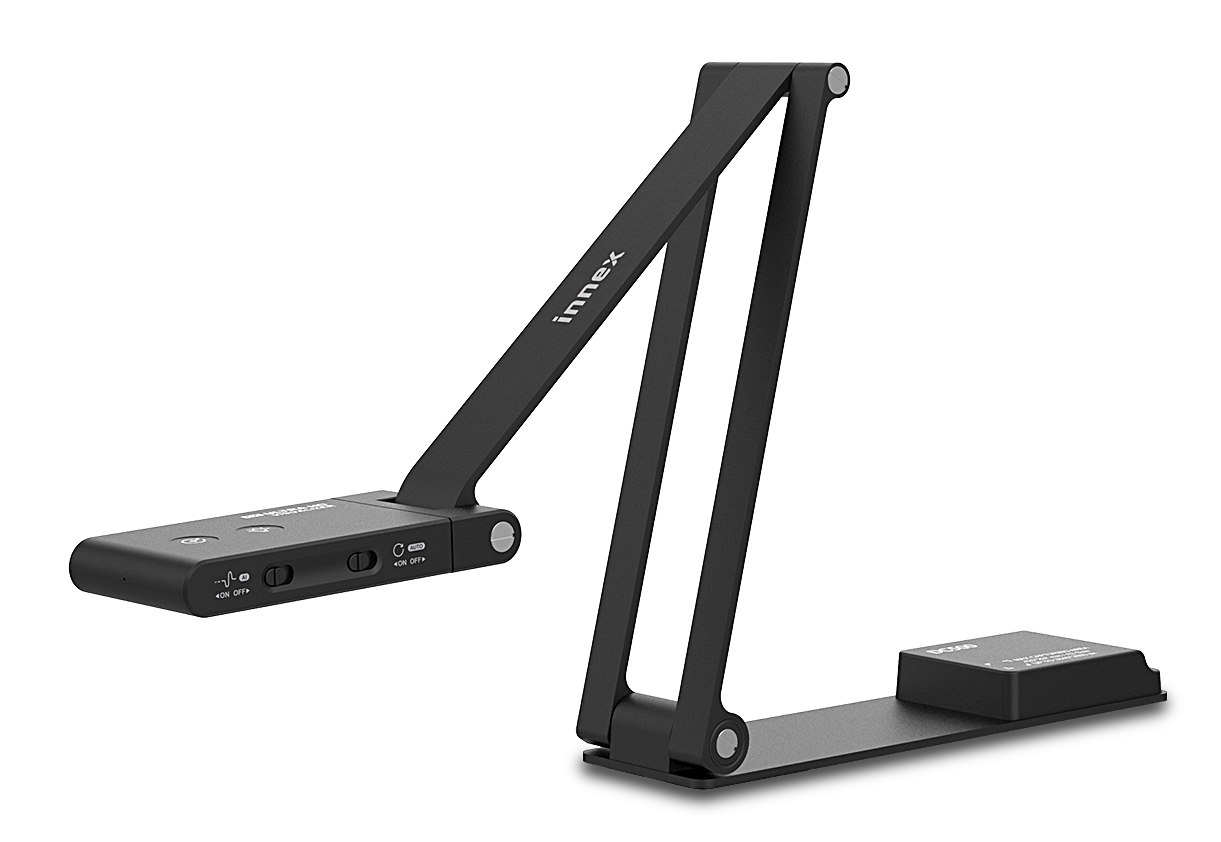

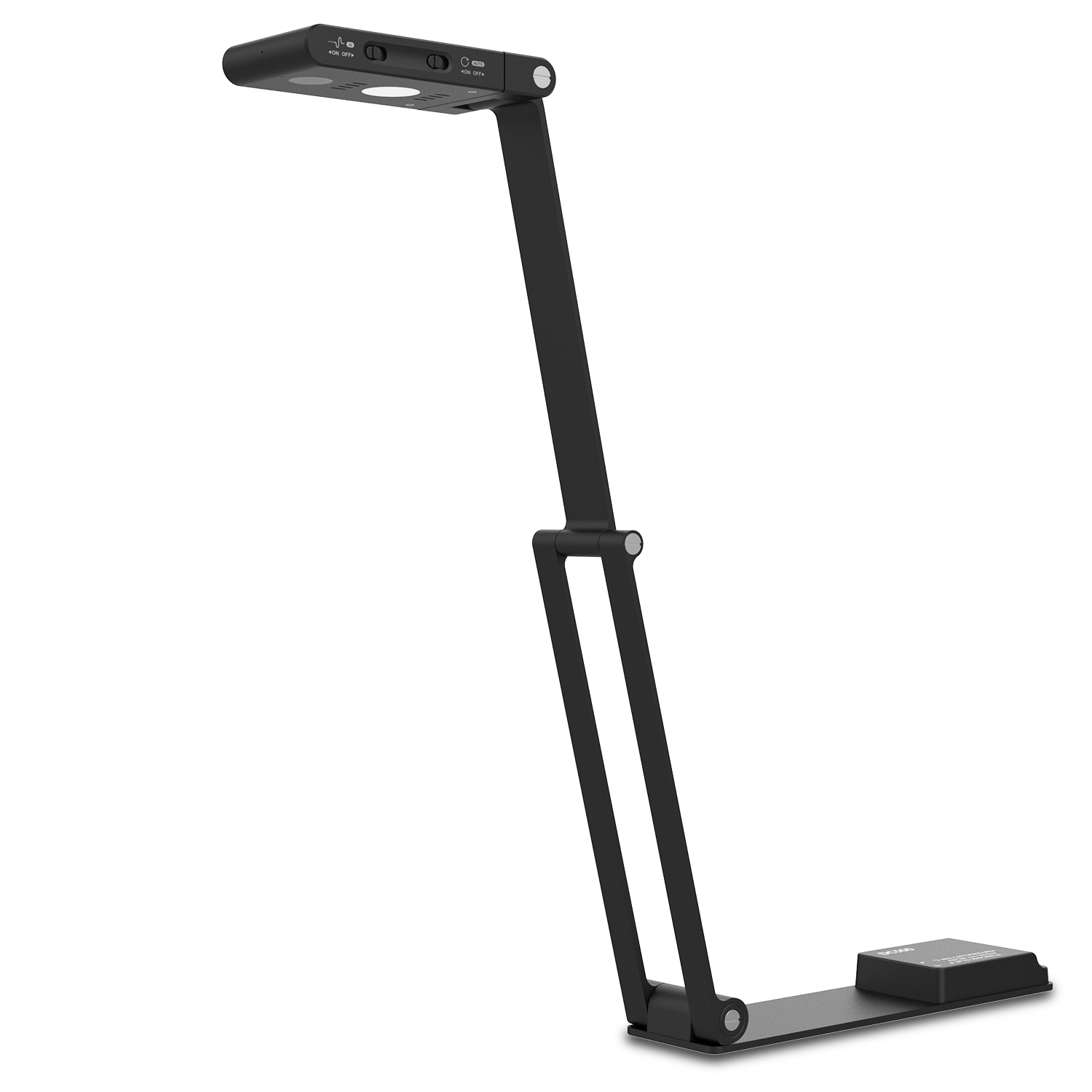

DC500 document camera Silver CMOS USB 2.0
Model DC500EAN 4711203040057
34 specifications
- ConnectivityUSB 2.0
- Weight450 g
- ColourSilver
- Effective sensor resolution13 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 2.0
- Weight
- 450 g
- Colour
- Silver
- Effective sensor resolution
- 13 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- Innex
- Category
- Document Camera
- Model
- DC500
- Part number
- DC500
- EAN / UPC
- 4711203040057
- Also known as
- Innex DC500 document camera Silver CMOS USB 2.0
Specifications
34 specifications in 9 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 13 MP |
| Sensor type | CMOS |
| Supported graphics resolutions | 3840 x 2880 |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Video recording | Yes |
| Maximum frame rate | 30 fps |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Shooting area (WxD) | 440 x 330 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | Micro-USB |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Silver |
| Control type | Touch |
| Horizontal rotation angle | 0 - 180° |
| Vertical rotation angle | 0 - 180° |
| Built-in microphone | Yes |
| Frame rate | 30 fps |
| Lamp type | LED |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
| Operating current | 0.5 A |
| Operating voltage | 5 V |
| AC input frequency | 50/60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 51 mm |
| Height | 20 mm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| User guide | Yes |
