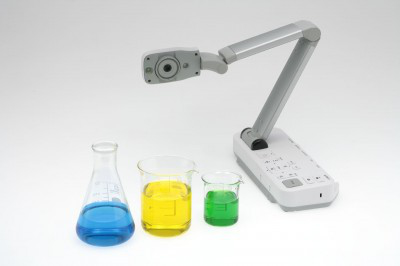

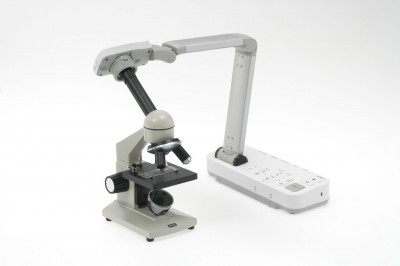

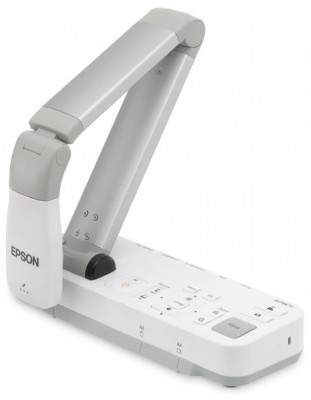

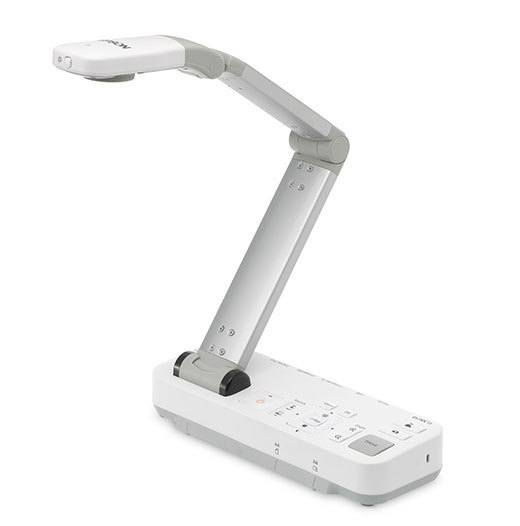

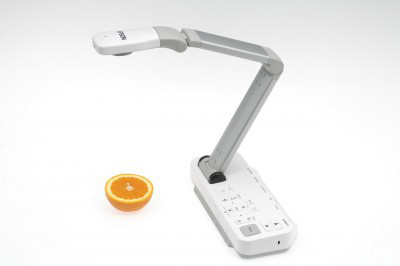

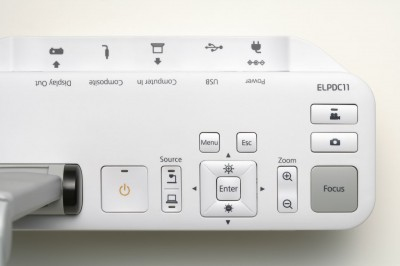

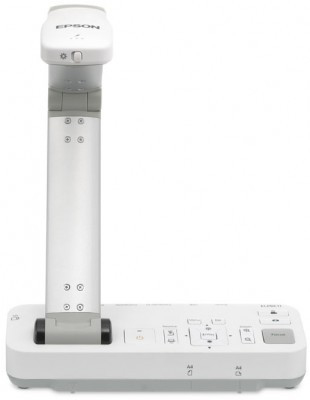

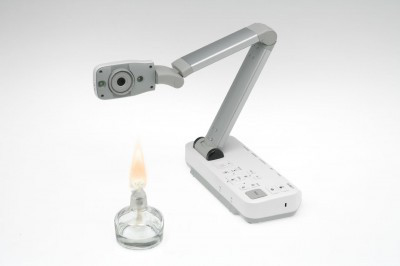

Visualiser - ELPDC11 - Desktop
Model ELPDC11Part no. V12H377040EAN 8715946475431
40 specifications
- ConnectivityUSB 2.0
- Weight2.2 kg
- ColourWhite
- Effective sensor resolution5 MP
- Auto focusYes
- Power supply typeAC
Overview
- Connectivity
- USB 2.0
- Weight
- 2.2 kg
- Colour
- White
- Effective sensor resolution
- 5 MP
- Auto focus
- Yes
- Power supply type
- AC
- Brand
- Epson
- Category
- Document Camera
- Model
- ELPDC11
- Part number
- V12H377040
- EAN / UPC
- 8715946475431
- Also known as
- Epson Visualiser - ELPDC11 - Desktop
Specifications
40 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 5 MP |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 10x |
| Shooting area (WxD) | 297 x 420 mm |

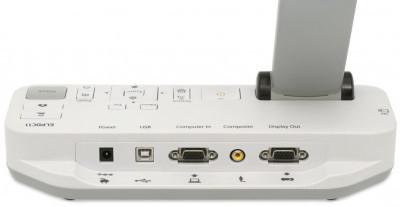

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Horizontal rotation angle | -90 - 90° |
| Vertical rotation angle | -90 - 90° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in microphone | Yes |
| Camera movement | Manual |
| Country of origin | China |
| Image stabilizer | Yes |
| Photo effects | Black&White, Negative film, Split screen |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 14.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 326 mm |
| Height | 437 mm |
| Weight | 2.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 245 mm |
| Package depth | 345 mm |
| Package height | 320 mm |
| Package weight | 4.16 kg |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 54 pc(s) |
| Products per pallet (UK) | 54 pc(s) |
