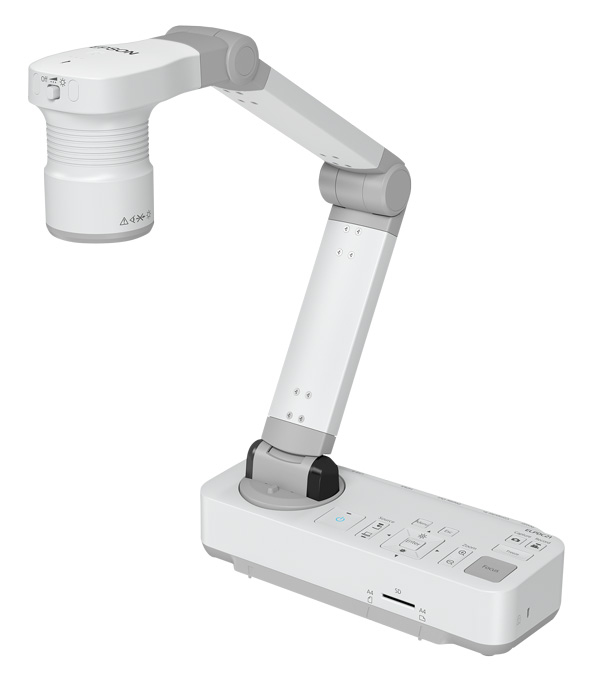

ELP-DC21 document camera Grey, White 25.4
2.7 mm (1 / 2.7") CMOS USB 1.1
Model ELP-DC21Part no. V12H758053EAN 9314020621062
39 specifications
- ConnectivityUSB 1.1
- Weight2.6 kg
- ColourGrey, White
- Effective sensor resolution2 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 1.1
- Weight
- 2.6 kg
- Colour
- Grey, White
- Effective sensor resolution
- 2 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- Epson
- Category
- Document Camera
- Model
- ELP-DC21
- Part number
- V12H758053
- EAN / UPC
- 9314020621062
- Also known as
- Epson ELP-DC21 document camera Grey, White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 1.1
Specifications
39 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 2 MP |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
| Light exposure modes | Auto |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 12x |
| Digital zoom | 10x |
| Shooting area (WxD) | 297 x 526 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 1.1 |
| DC-in jack | Yes |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Grey, White |
| Cable lock slot | Yes |
| Built-in microphone | Yes |
| Image formats supported | JPG |
| Image quality adjustment | Brightness, Contrast |
| Lamp type | LED |
| Lamps quantity | 2 lamp(s) |
| Zoom capability | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.5 W |
| Operating voltage | 12 V |
| AC input frequency | 50-60 Hz |
| AC input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 502 mm |
| Height | 328 mm |
| Weight | 2.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
