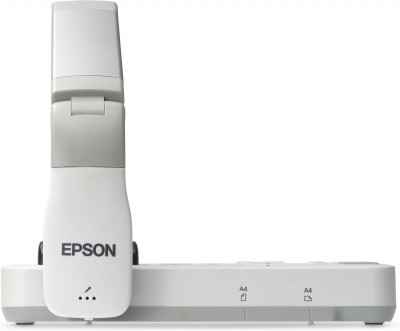

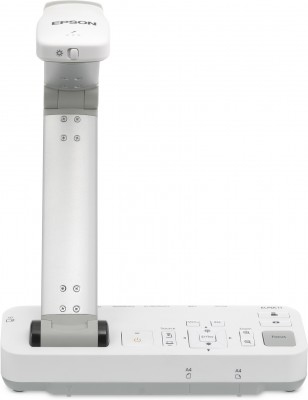

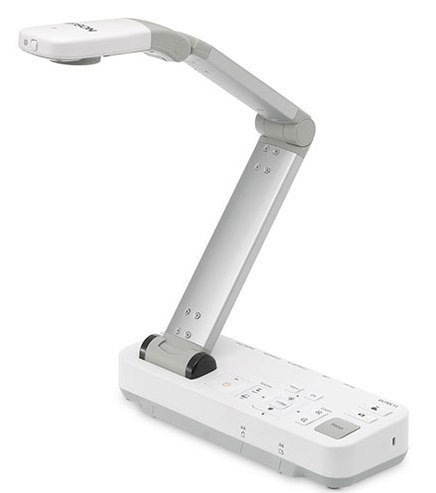

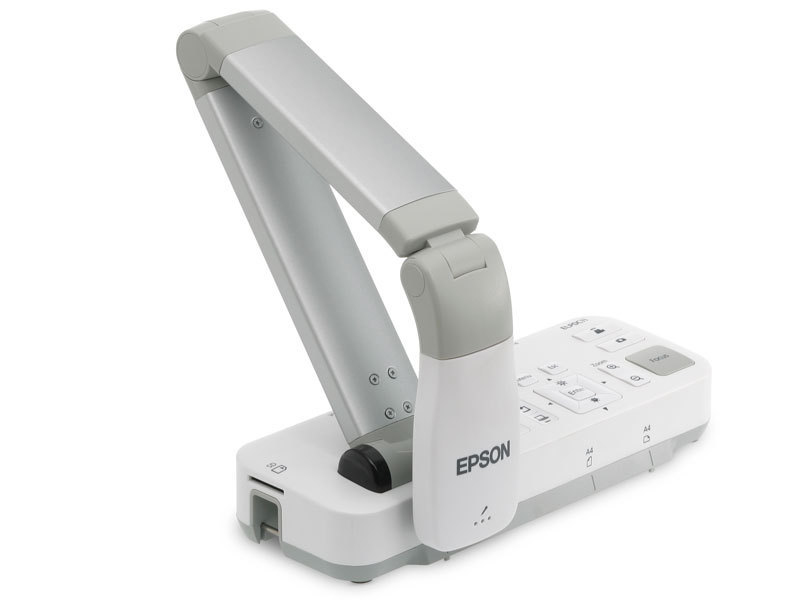

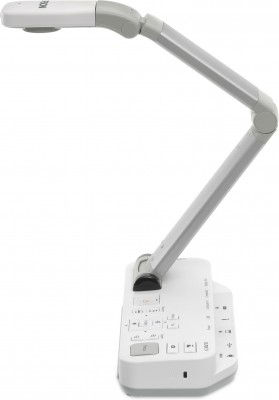

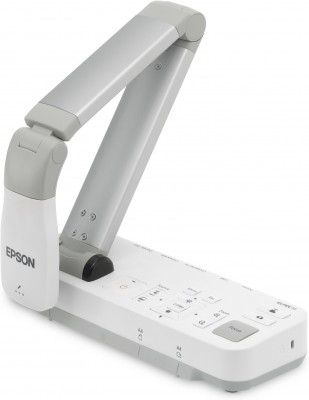

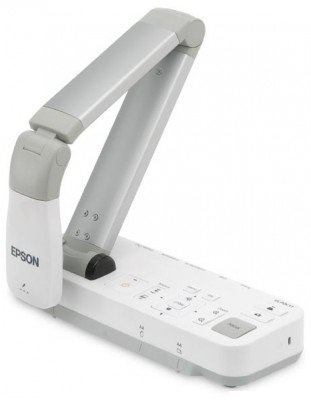

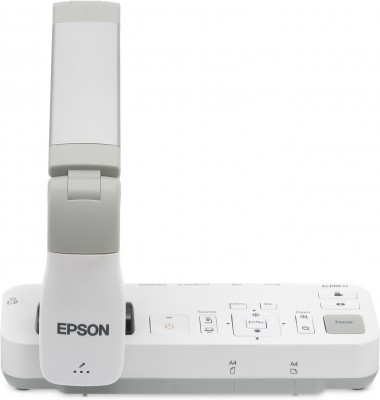

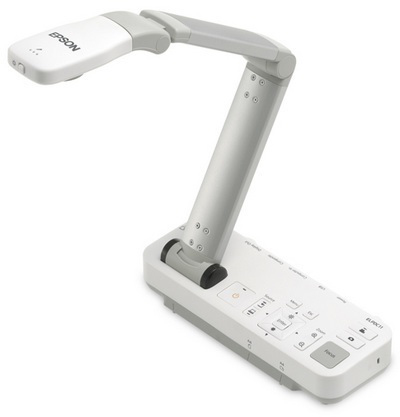

ELP-DC11
Model ELP-DC11Part no. V12H377060EAN 5052916498582
46 specifications
- Weight2.2 kg
- ColourWhite
- Effective sensor resolution5 MP
- Auto focusYes
- Composite video in1
- Power consumption (typical)14.5 W
Overview
- Weight
- 2.2 kg
- Colour
- White
- Effective sensor resolution
- 5 MP
- Auto focus
- Yes
- Composite video in
- 1
- Power consumption (typical)
- 14.5 W
- Brand
- Epson
- Category
- Document Camera
- Model
- ELP-DC11
- Part number
- V12H377060
- EAN / UPC
- 5052916498582, 5054484346159, 8715946476490
- Also known as
- Epson ELPDC11
Specifications
46 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 5 MP |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1280 x 1024 (SXGA), 1024 x 768 (XGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA) |
| Maximum frame rate | 30 fps |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 10x |
| Digital zoom | 10x |
| Shooting area (WxD) | 297 x 420 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Composite video in | 1 |
| Ethernet LAN | No |
| RS-232 ports | 0 |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Bundled software | ArcSoft Application Software for Epson Document Camera, Button manager for Epson Document Camera |
| Compatible operating systems | Mac OS 10.5+, Windows Vista, Windows XP |
| Country of origin | China |
| Focus | Auto |
| Image quality adjustment | Brightness |
| Security features | Kensington lock, Security bar, Security cable hole |
| Zoom capability | Yes |
| Application software | edit, file management, preview, still image capture(JPEG/BMP), time lapse function up to 72 hours, video capture (WMV/MPG/AVI/MOV), web upload |
| Box contents | Computer cable, Main unit, Microscope Adapter, Quick Start Guide, Remote control incl. batteries, USB cable, User's Manual Set |
| Power consumption | 14.5 Watt, 0.46 Watt (standby) |
| Supported storage | 1GB internal memory, SD/SDHC compatibility (128MB-32GB) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.5 W |
| Power consumption (standby) | 0.46 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 192 mm |
| Height | 437 mm |
| Weight | 2.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 240 mm |
| Package depth | 350 mm |
| Package height | 310 mm |
| Package weight | 4.16 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
