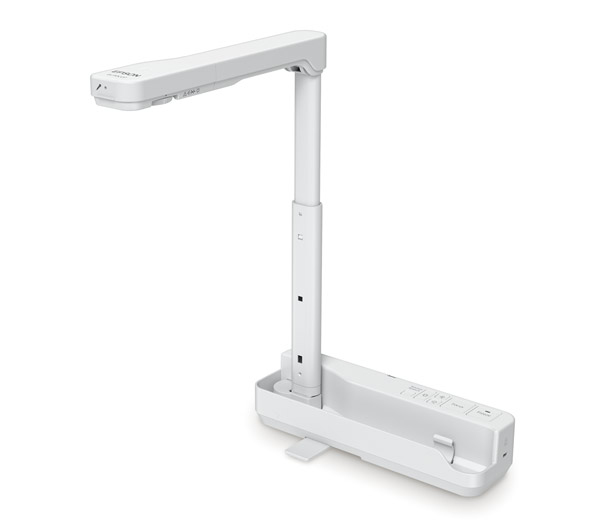

ELP-DC07 document camera White 25.4
2.7 mm (1 / 2.7") CMOS USB 2.0
Model ELP-DC07Part no. V12H759053EAN 9314020621086
26 specifications
- ConnectivityUSB 2.0
- Weight1 kg
- ColourWhite
- Effective sensor resolution2 MP
- Auto focusYes
- Power supply typeAC/USB
Overview
- Connectivity
- USB 2.0
- Weight
- 1 kg
- Colour
- White
- Effective sensor resolution
- 2 MP
- Auto focus
- Yes
- Power supply type
- AC/USB
- Brand
- Epson
- Category
- Document Camera
- Model
- ELP-DC07
- Part number
- V12H759053
- EAN / UPC
- 9314020621086
- Also known as
- Epson ELP-DC07 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 2.0
Specifications
26 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 2 MP |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Image freeze | Yes |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 8x |
| Shooting area (WxD) | 275 x 491 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | USB Type-B |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Cable lock slot | Yes |
| Illumination | Yes |
| Image quality adjustment | Brightness |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/USB |
| Power consumption (typical) | 2.5 W |
| Operating voltage | 5 V |
| AC input frequency | 50-60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 76 mm |
| Height | 388 mm |
| Weight | 1 kg |
| Dimensions folded (WxDxH) | 260 x 76 x 60 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
