DC-20 document camera White 25.4
2.7 mm (1 / 2.7") CMOS USB 2.0
Model DC-20Part no. V12H500020EAN 132017709666
35 specifications
- ConnectivityUSB 2.0
- Weight2.99 kg
- ColourWhite
- Effective sensor resolution2 MP
- Auto focusYes
- Power supply typeAC
Overview
- Connectivity
- USB 2.0
- Weight
- 2.99 kg
- Colour
- White
- Effective sensor resolution
- 2 MP
- Auto focus
- Yes
- Power supply type
- AC
- Brand
- Epson
- Category
- Document Camera
- Model
- DC-20
- Part number
- V12H500020
- EAN / UPC
- 132017709666, 010343901865, 103439018650, 163120814671 +1 more
- Also known as
- Epson DC-20 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 2.0
Specifications
35 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 2 MP |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
| Light exposure modes | Auto |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 12x |
| Digital zoom | 10x |
| Shooting area (WxD) | 297 x 508 mm |

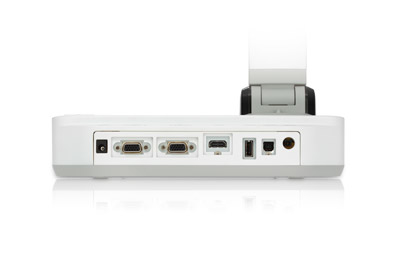

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| Composite video out | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |

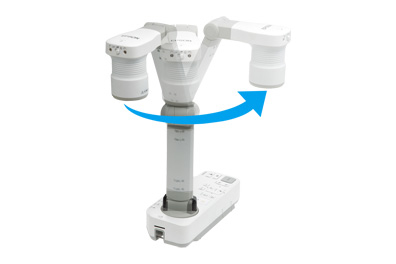

| Horizontal rotation angle | -90 - 90° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Lamp type | LED |
| Lamps quantity | 2 lamp(s) |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 17 W |
| AC input voltage | 100-240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 269 mm |
| Depth | 312 mm |
| Height | 478 mm |
| Weight | 2.99 kg |
| Dimensions folded (WxDxH) | 366 x 122 x 119 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, VGA |
| User guide | Yes |
