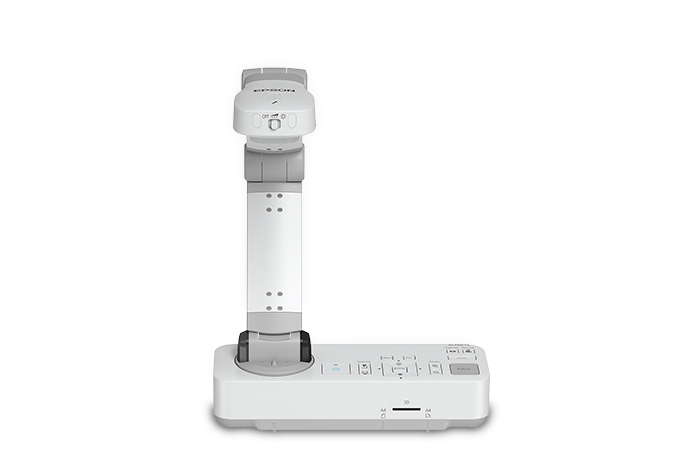

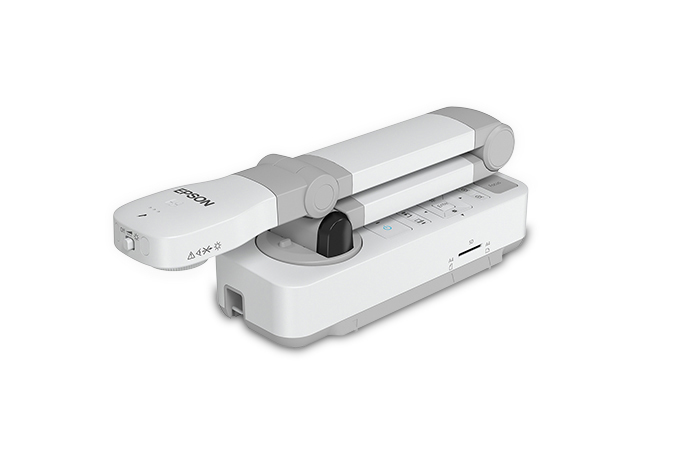

DC-13 document camera White CMOS USB/HDMI
Model DC-13Part no. V12H757020EAN 010343924116
30 specifications
- ConnectivityUSB/HDMI
- Weight2.81 kg
- ColourWhite
- Sensor typeCMOS
- Digital zoom16x
- Card reader integratedYes
Overview
- Connectivity
- USB/HDMI
- Weight
- 2.81 kg
- Colour
- White
- Sensor type
- CMOS
- Digital zoom
- 16x
- Card reader integrated
- Yes
- Brand
- Epson
- Category
- Document Camera
- Model
- DC-13
- Part number
- V12H757020
- EAN / UPC
- 010343924116
- Also known as
- Epson DC-13 document camera White CMOS USB/HDMI
Specifications
30 specifications in 11 groups
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 16x |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB/HDMI |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Cable lock slot type | Kensington |
| Image formats supported | JPEG, BMP, PNG |
| Zoom capability | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 269 mm |
| Depth | 447 mm |
| Height | 317 mm |
| Weight | 2.81 kg |
| Dimensions folded (WxDxH) | 365.8 x 119.4 x 121.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Microscope adapter included | Yes |
| Carrying case | Yes |
