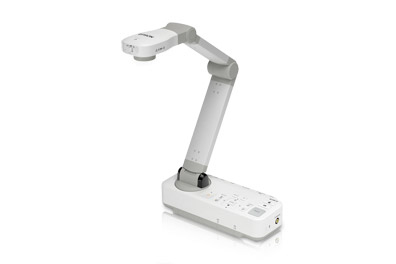

DC-12 document camera White 25.4
2.7 mm (1 / 2.7") CMOS USB 2.0
Model DC-12Part no. V12H594020EAN 010343909540
39 specifications
- ConnectivityUSB 2.0
- Weight2.86 kg
- ColourWhite
- Effective sensor resolution2 MP
- Auto focusYes
- Power supply typeAC
Overview
- Connectivity
- USB 2.0
- Weight
- 2.86 kg
- Colour
- White
- Effective sensor resolution
- 2 MP
- Auto focus
- Yes
- Power supply type
- AC
- Brand
- Epson
- Category
- Document Camera
- Model
- DC-12
- Part number
- V12H594020
- EAN / UPC
- 010343909540, 103439095408
- Also known as
- Epson DC-12 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 2.0
Specifications
39 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 2 MP |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA) |
| Maximum frame rate | 30 fps |
| White balance | Auto |
| Light exposure modes | Auto |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 16x |
| Shooting area (WxD) | 297 x 526 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| Composite video out | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Horizontal rotation angle | -90 - 90° |
| Vertical rotation angle | -90 - 90° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in microphone | Yes |
| Lamp type | LED |
| Lamps quantity | 2 lamp(s) |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 13 W |
| Operating voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 269 mm |
| Depth | 330 mm |
| Height | 475 mm |
| Weight | 2.86 kg |
| Dimensions folded (WxDxH) | 340 x 122 x 124 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB, VGA |
| Manual | Yes |
| User guide | Yes |
