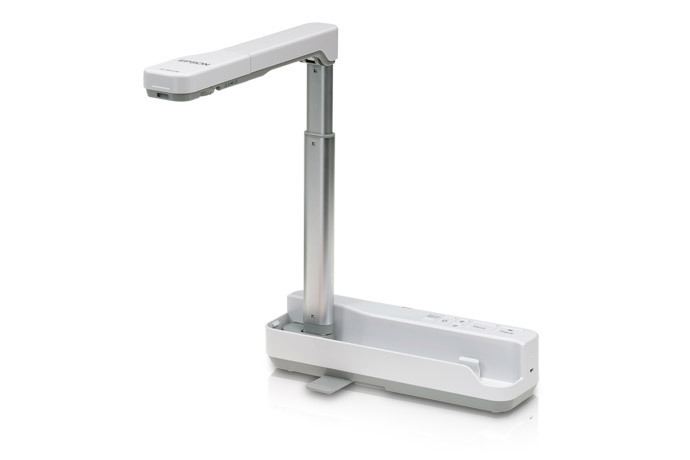

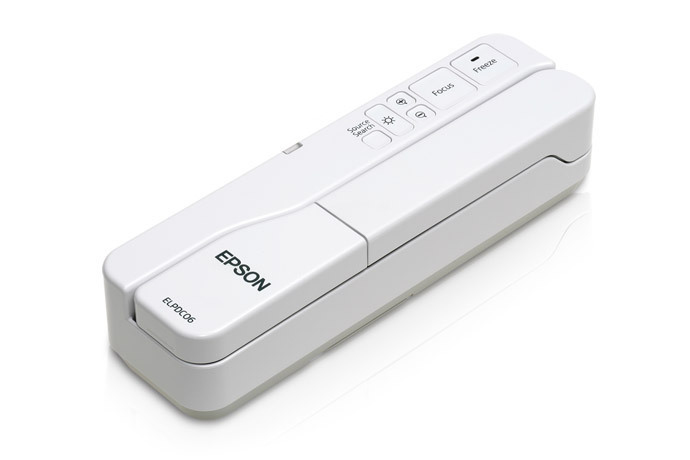

DC-06 document camera White 25.4
3 mm (1 / 3") CMOS USB 2.0
Model DC-06Part no. V12H321005EAN 010343877887
32 specifications
- ConnectivityUSB 2.0
- Weight907.2 g
- ColourWhite
- Effective sensor resolution2 MP
- Maximum focal length (f)4.1 mm
- Power consumption (typical)2.5 W
Overview
- Connectivity
- USB 2.0
- Weight
- 907.2 g
- Colour
- White
- Effective sensor resolution
- 2 MP
- Maximum focal length (f)
- 4.1 mm
- Power consumption (typical)
- 2.5 W
- Brand
- Epson
- Category
- Document Camera
- Model
- DC-06
- Part number
- V12H321005
- EAN / UPC
- 010343877887, 103438778876, 163120855391
- Also known as
- Epson DC-06 document camera White 25.4 / 3 mm (1 / 3") CMOS USB 2.0
Specifications
32 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 2 MP |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 800 x 600 (SVGA) |
| Maximum frame rate | 15 fps |
| White balance | Auto |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Maximum focal length (f) | 4.1 mm |
| Auto focus | Yes |
| Digital zoom | 4x |
| Shooting area (WxD) | 271.8 x 363.2 mm |
| Iris | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | USB Type-B |
Technical details
| Specification | Value |
|---|---|
| Product colour | White |
| Horizontal rotation angle | 0 - 90° |
| Vertical rotation angle | 0 - 90° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
| Operating voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76.2 mm |
| Depth | 271.8 mm |
| Height | 381 mm |
| Weight | 907.2 g |
| Dimensions folded (WxDxH) | 76.2 x 271.8 x 66.04 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Carrying case | Yes |
| Manual | Yes |
