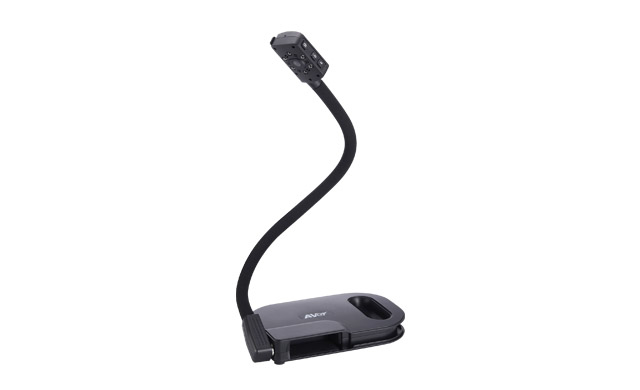

Vision U50
Model Vision U50Part no. 40AAP0U1BBC9EAN 4719552123032
39 specifications
- ConnectivityUSB 2.0
- Weight7.39 kg
- ColourBlack
- Effective sensor resolution5 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 2.0
- Weight
- 7.39 kg
- Colour
- Black
- Effective sensor resolution
- 5 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- AVer
- Category
- Document Camera
- Model
- Vision U50
- Part number
- 40AAP0U1BBC9
- EAN / UPC
- 4719552123032, 4719552125746
- Also known as
- AVer Vision U50 document camera Black 25.4 / 4 mm (1 / 4") CMOS USB 2.0
Specifications
39 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 5 MP |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Sensor type | CMOS |
| Supported graphics resolutions | 2592 x 1944 |
| Maximum frame rate | 30 fps |
| White balance | Auto, Manual |
| Light exposure modes | Auto, Manual |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 8x |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | Mini-USB |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Black |
| Horizontal rotation angle | 0 - 270° |
| Built-in microphone | Yes |
| Country of origin | China |
| Lamp type | LED |
| Lamps quantity | 1 lamp(s) |
| Photo effects | Black&White, Negative film |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 342 mm |
| Depth | 235 mm |
| Height | 114 mm |
| Weight | 7.39 kg |
| Dimensions folded (WxDxH) | 259 x 163 x 39 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 367 mm |
| Package depth | 270 mm |
| Package height | 449 mm |
| Package weight | 8.69 kg |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 4 pc(s) |
| Products per pallet | 168 pc(s) |
