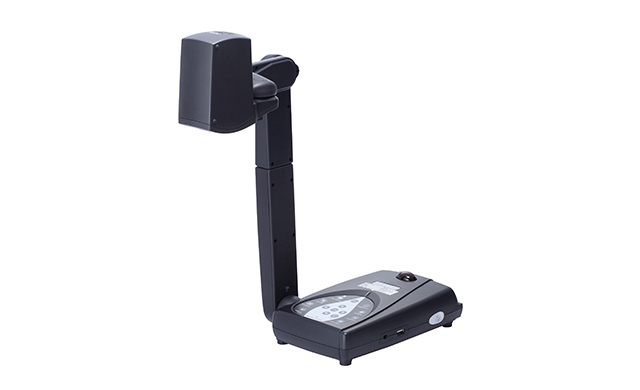

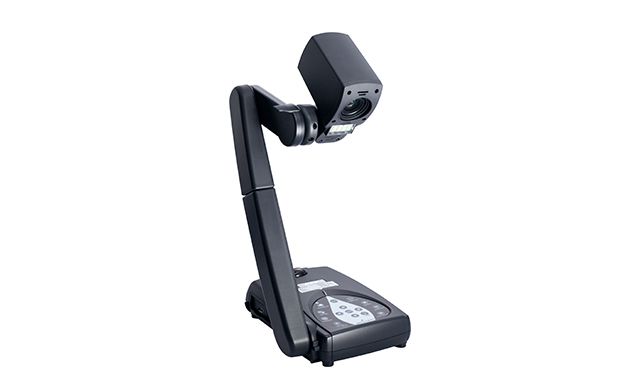

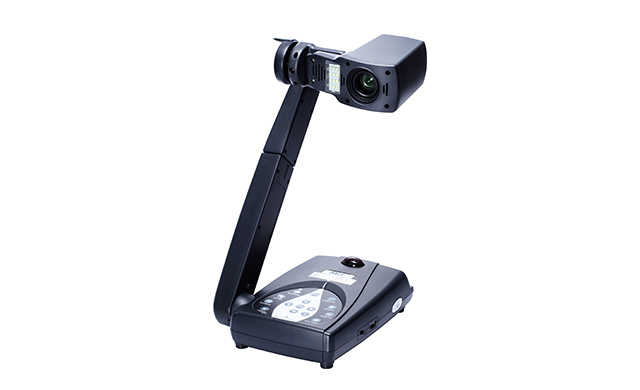

Vision M70HD
Model Vision M70HDPart no. M70HD
45 specifications
- ConnectivityUSB 2.0
- Weight2.1 kg
- ColourBlack
- Effective sensor resolution5 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 2.0
- Weight
- 2.1 kg
- Colour
- Black
- Effective sensor resolution
- 5 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- AVer
- Category
- Document Camera
- Model
- Vision M70HD
- Part number
- M70HD
- Also known as
- AVer Vision M70HD document camera Black 25.4 / 3.2 mm (1 / 3.2") CMOS USB 2.0
Specifications
45 specifications in 9 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 5 MP |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| White balance | Auto, Manual |
| Light exposure modes | Auto, Manual |
| Image freeze | Yes |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 12x |
| Digital zoom | 8x |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| USB connector type | Mini-USB, USB Type-A |
| Audio output | Yes |
| Composite video out | 1 |
| RS-232 ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SDHC |
| Maximum memory card size | 32 GB |
| Memory capacity (images) | 240 |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Black |
| Built-in microphone | Yes |
| Lamp type | LED |
| Lamps quantity | 1 lamp(s) |
| Photo effects | Black&White, Mirror, Negative film, Split screen |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 452 mm |
| Height | 504 mm |
| Weight | 2.1 kg |
| Dimensions folded (WxDxH) | 182 x 388 x 63 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Remote control included | Yes |
| Remote control batteries included | Yes |
| Cables included | Mini-USB, VGA |
| Manual | Yes |
| User guide | Yes |
