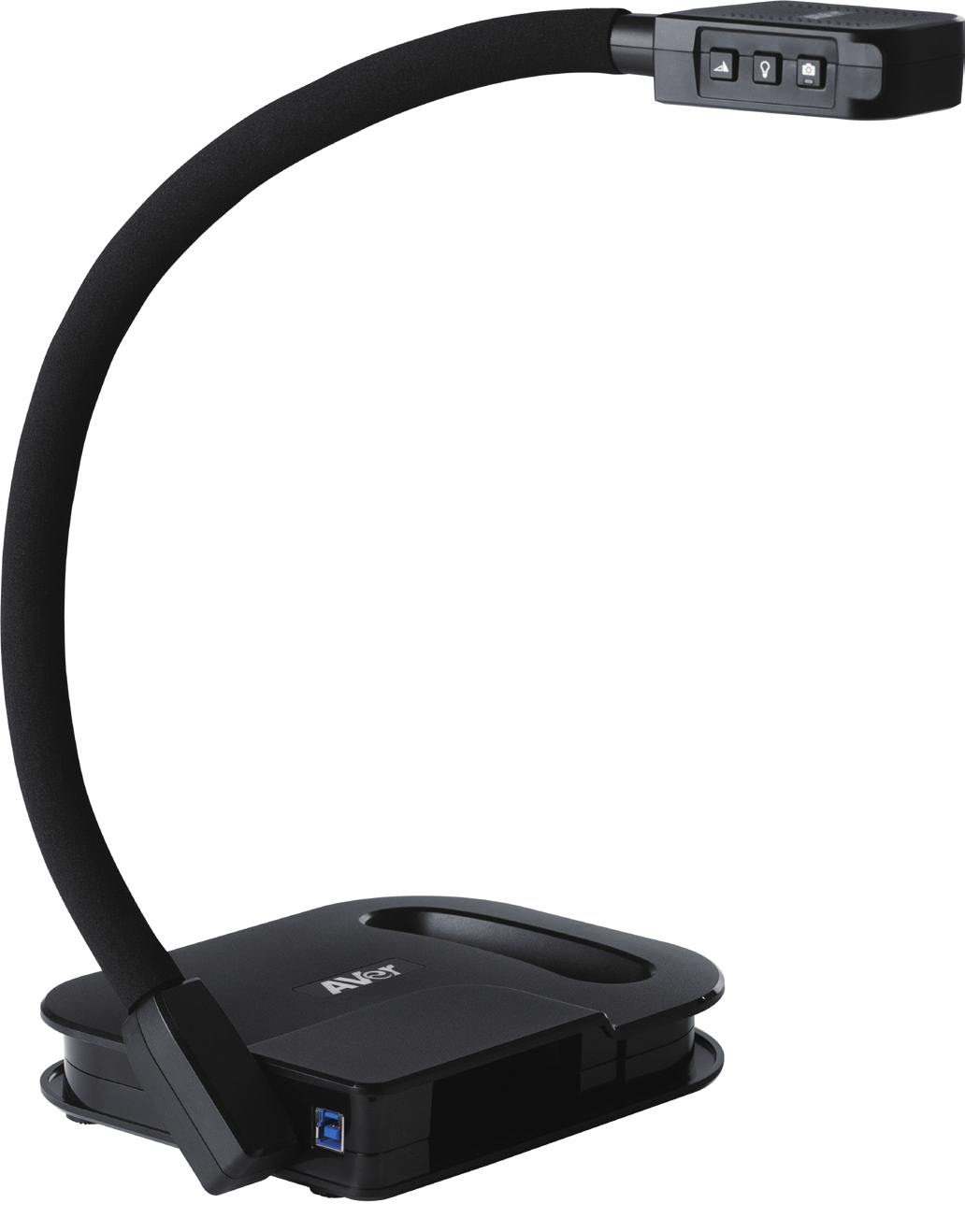

U70+ document camera Black 25.4
3.06 mm (1 / 3.06") CMOS USB 3.2 Gen 1 (3.1 Gen 1)
Model U70+Part no. 61P0U10000ANEAN 4719552124947
28 specifications
- ConnectivityUSB 3.2 Gen 1 (3.1 Gen 1)
- Weight1.7 kg
- ColourBlack
- Effective sensor resolution13 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB 3.2 Gen 1 (3.1 Gen 1)
- Weight
- 1.7 kg
- Colour
- Black
- Effective sensor resolution
- 13 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- AVer
- Category
- Document Camera
- Model
- U70+
- Part numbers
- 61P0U10000AN, 61P0U10000AW
- EAN / UPC
- 4719552124947
- Also known as
- AVer U70+ document camera Black 25.4 / 3.06 mm (1 / 3.06") CMOS USB 3.2 Gen 1 (3.1 Gen 1)
Specifications
28 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 13 MP |
| Optical sensor size | 25.4 / 3.06 mm (1 / 3.06") |
| Sensor type | CMOS |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum frame rate | 60 fps |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Digital zoom | 16x |
| Shooting area (WxD) | 530 x 396 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 3.2 Gen 1 (3.1 Gen 1) |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Black |
| Horizontal rotation angle | 0 - 270° |
| Vertical rotation angle | 0 - 270° |
| Built-in microphone | Yes |
| Zoom capability | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 233 mm |
| Depth | 468 mm |
| Height | 312 mm |
| Weight | 1.7 kg |
| Dimensions folded (WxDxH) | 242 x 44 x 188 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| User guide | Yes |
