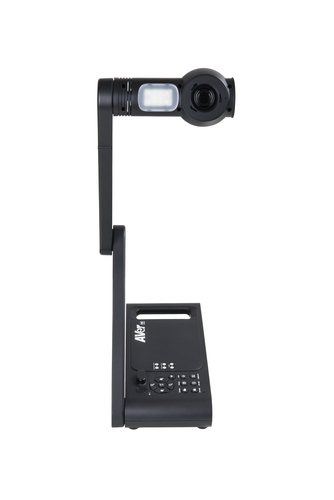

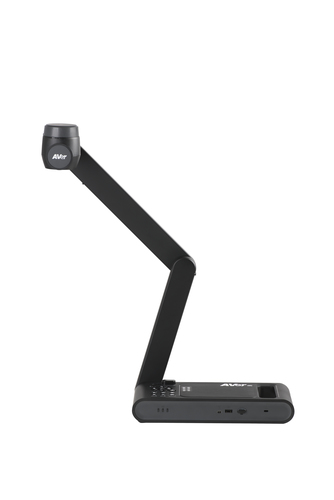

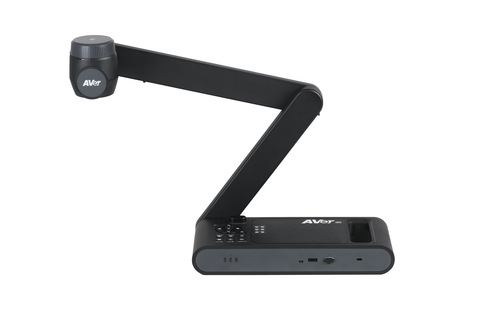

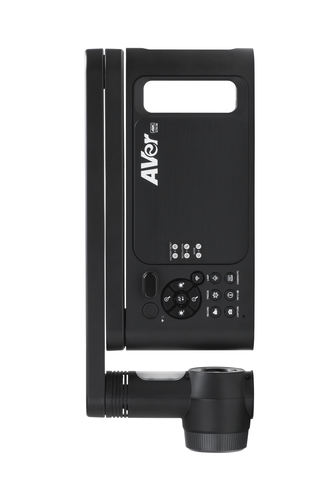

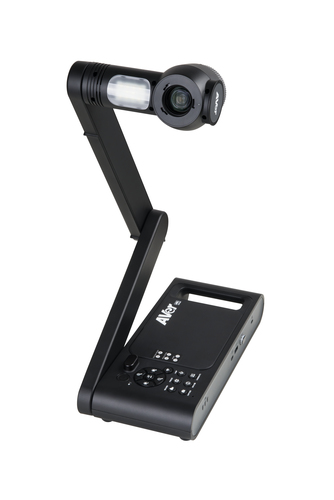

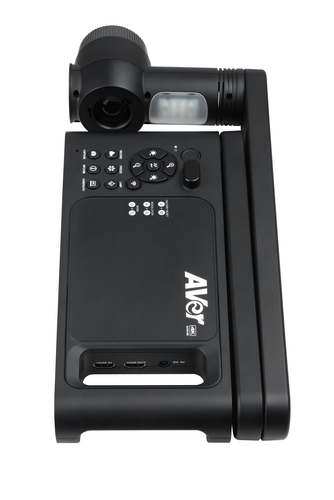

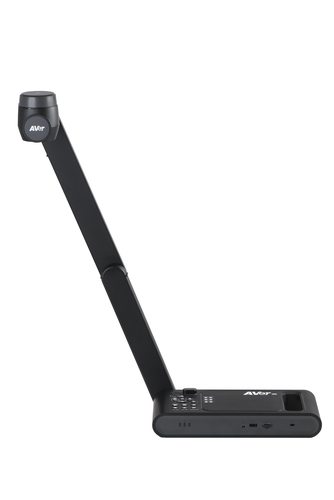

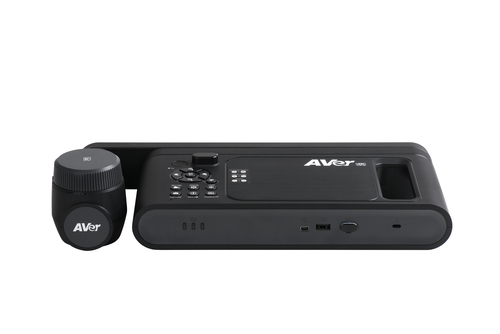

M70W document camera Black 25.4
3.2 mm (1 / 3.2") CMOS USB/Wi-Fi
Model M70WPart no. 61PW300000ACEAN 5704174985952
42 specifications
- ConnectivityUSB/Wi-Fi
- Weight7.68 kg
- ColourBlack
- Effective sensor resolution13 MP
- Auto focusYes
- Document size (max)A3
Overview
- Connectivity
- USB/Wi-Fi
- Weight
- 7.68 kg
- Colour
- Black
- Effective sensor resolution
- 13 MP
- Auto focus
- Yes
- Document size (max)
- A3
- Brand
- AVer
- Category
- Document Camera
- Model
- M70W
- Part numbers
- 61PW300000AC, 61PW300000AS
- EAN / UPC
- 5704174985952, 4719552125654
- Also known as
- AVer M70W document camera Black 25.4 / 3.2 mm (1 / 3.2") CMOS USB/Wi-Fi
Specifications
42 specifications in 8 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 13 MP |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Sensor type | CMOS |
| Supported graphics resolutions | 3840 x 2160 |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| White balance | Auto, Manual |
| PTZ control | Yes |
Lens system
| Specification | Value |
|---|---|
| Auto focus | Yes |
| Optical zoom | 10x |
| Digital zoom | 23x |
| Combined zoom | 230x |
| Shooting area (WxD) | 480 x 345 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB/Wi-Fi |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Black |
| Anti-flicker | Yes |
| Number of TV lines | 1400 |
| Built-in microphone | Yes |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Power consumption (typical) | 8.7 W |
| Power consumption (standby) | 7.7 W |
| Operating current | 2 A |
| Operating voltage | 5 V |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 465 mm |
| Depth | 280 mm |
| Height | 190 mm |
| Weight | 7.68 kg |
| Dimensions folded (WxDxH) | 159 x 363.5 x 76.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 390 mm |
| Package depth | 305 mm |
| Package height | 475 mm |
| Package weight | 8.62 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 50 pc(s) |
