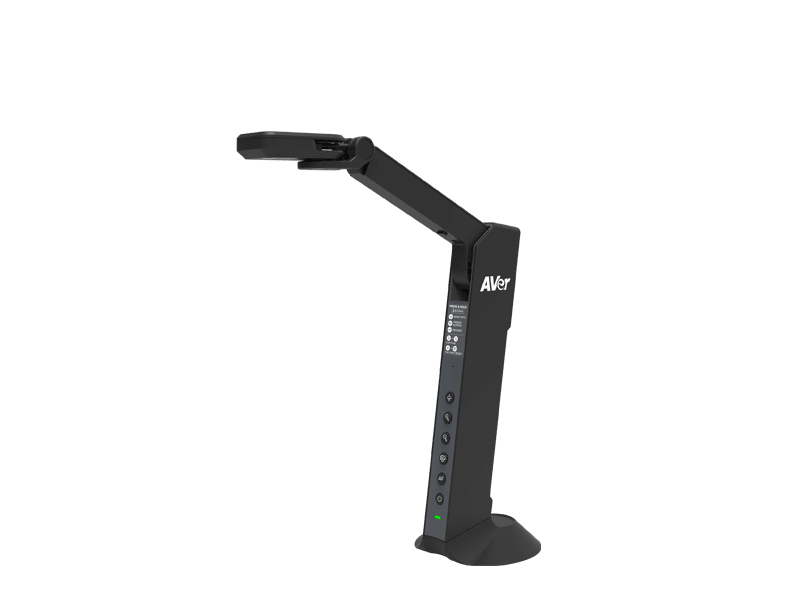

M11-8M document camera Black 25.4
3.06 mm (1 / 3.06") CMOS USB 2.0
Model M11-8M
40 specifications
- ConnectivityUSB 2.0
- Weight830 g
- ColourBlack
- Effective sensor resolution8 MP
- Maximum aperture number2
- Card reader integratedYes
Overview
- Connectivity
- USB 2.0
- Weight
- 830 g
- Colour
- Black
- Effective sensor resolution
- 8 MP
- Maximum aperture number
- 2
- Card reader integrated
- Yes
- Brand
- AVer
- Category
- Document Camera
- Model
- M11-8M
- Part number
- M11-8M
- Also known as
- AVer M11-8M document camera Black 25.4 / 3.06 mm (1 / 3.06") CMOS USB 2.0
Specifications
40 specifications in 10 groups
Camera
| Specification | Value |
|---|---|
| Effective sensor resolution | 8 MP |
| Optical sensor size | 25.4 / 3.06 mm (1 / 3.06") |
| Sensor type | CMOS |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| White balance | Auto, Manual |
| Light exposure modes | Auto, Manual |
| Image freeze | Yes |
| Light source | LED |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 2 |
| Auto focus | Yes |
| Digital zoom | 20x |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0 |
| HDMI output ports quantity | 1 |
| USB connector type | Mini-USB A, USB Type-A |
| USB 2.0 ports quantity | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Technical details
| Specification | Value |
|---|---|
| Document size (max) | A3 |
| Product colour | Black |
| Horizontal rotation angle | 0 - 180° |
| Built-in microphone | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
| USB powered | Yes |
| Operating current | 0.9 A |
| Operating voltage | 5 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.7 mm |
| Depth | 303.4 mm |
| Height | 360.4 mm |
| Weight | 830 g |
| Dimensions folded (WxDxH) | 116.7 x 143.1 x 296.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
