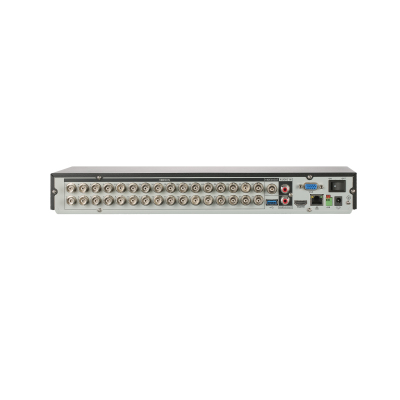

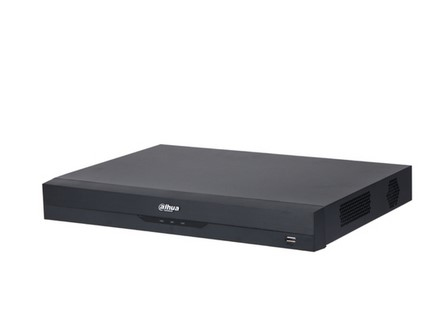

DH-XVR5232AN-I2 AI Series
Model DH-XVR5232AN-I2 AI SeriesPart no. XVR5232AN-I2
24 specifications
- Weight1.9 kg
- ColourBlack
- Video input channels32 channels
- Ethernet LANYes
- Power supply typeDC
- Width375 mm
Overview
- Weight
- 1.9 kg
- Colour
- Black
- Video input channels
- 32 channels
- Ethernet LAN
- Yes
- Power supply type
- DC
- Width
- 375 mm
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR5232AN-I2 AI Series
- Part number
- XVR5232AN-I2
- Also known as
- Dahua Technology DH-XVR5232AN-I2 AI Series Black
Specifications
24 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.264+, H.265, H.265 Pro, H.265 Pro+, H.265+ |
| Product colour | Black |
| Certification | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 32 channels |
| BNC input ports | 32 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, Servidor de alarmas, P2P, Búsqueda de IP (admite cámara IP Dahua, DVR, NVS, etc. |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 16 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 288 mm |
| Height | 53 mm |
| Weight | 1.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
