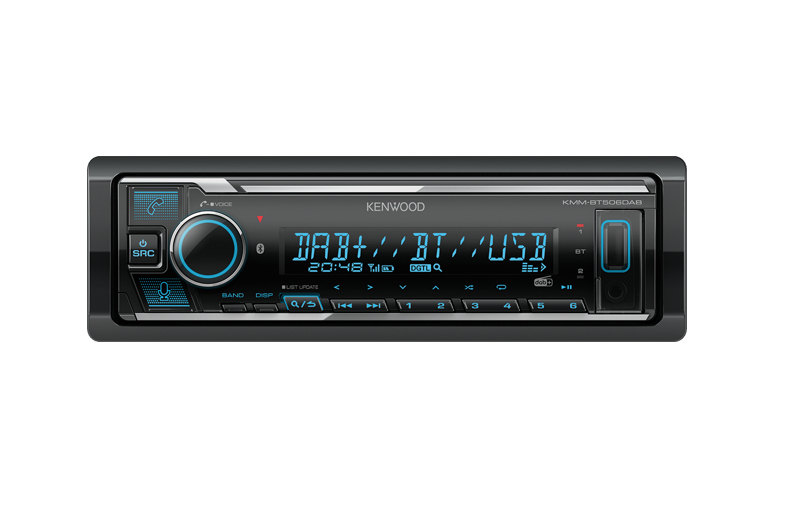

Kenwood KMM-BT506DAB car media receiver Black

KMM-BT506DAB car media receiver Black

50 W Bluetooth

Model KMM-BT506DABEAN 019048230003

57 specifications

Weight600 g
ColourBlack
MP3 playbackYes
Preset stations quantity24
Width182 mm
Operating temperature (T-T)-10 - 60 °C

See all specifications

Overview

Weight: 600 g
Colour: Black
MP3 playback: Yes
Preset stations quantity: 24
Width: 182 mm
Operating temperature (T-T): -10 - 60 °C

Brand: Kenwood
Category: Car Media Receiver
Model: KMM-BT506DAB
Part number: KMM-BT506DAB
EAN / UPC: 019048230003
Also known as: Kenwood KMM-BT506DAB car media receiver Black 50 W Bluetooth

Specifications

57 specifications in 8 groups

Performance

Specification	Value
Product colour	Black
DIN size	1 DIN
Output power	50 W
Audio output channels	4.0 channels
Maximum power per channel	50 W
Frequency range	30 - 15000 Hz
Signal-to-Noise Ratio (SNR)	68 dB
Impedance	4 Ω
Disc types supported	No
Ready for iPod	Yes
iPod Direct Control	Yes
iPod connectivity	Yes
Bass adjustment	Yes
Low pass filter	Yes
Volume control	Rotary
Equalizer	Yes
Equalizer bands quantity	13
Equalizer customizable	Yes
Removable front panel	Yes
Clock mode	12h/24h
Integrated clock	Yes
RDS features	TI
Dimmer	Yes
Firmware upgradeable	Yes

Multimedia

Specification	Value
MP3 playback	Yes
USB direct playback	Yes
CD-R playback	No
Audio formats supported	AAC, FLAC, MP3, WAV, WMA

Display

Specification	Value
Built-in display	Yes
Display type	LCD
Display digits	13 digits
Display number of lines	1.5 lines
Display illumination	Yes
Illumination colour	Blue
LED backlight	Yes

Ports & interfaces

Specification	Value
Bluetooth	Yes
Bluetooth version	4.2
Bluetooth range	10 m
USB port	Yes
USB ports quantity	1
USB version	2.0
USB connector type	USB Type-A
USB port position	Front
Illuminated USB port	Yes
AUX in	Yes
Line outputs (RCA)	2

Radio

Specification	Value
Preset stations quantity	24
Supported radio bands	AM, FM, LW, MW
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes

Weight & dimensions

Specification	Value
Width	182 mm
Depth	100 mm
Height	53 mm
Weight	600 g

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 60 °C

Packaging content

Specification	Value
Quick start guide	Yes
Remote control included	Yes
