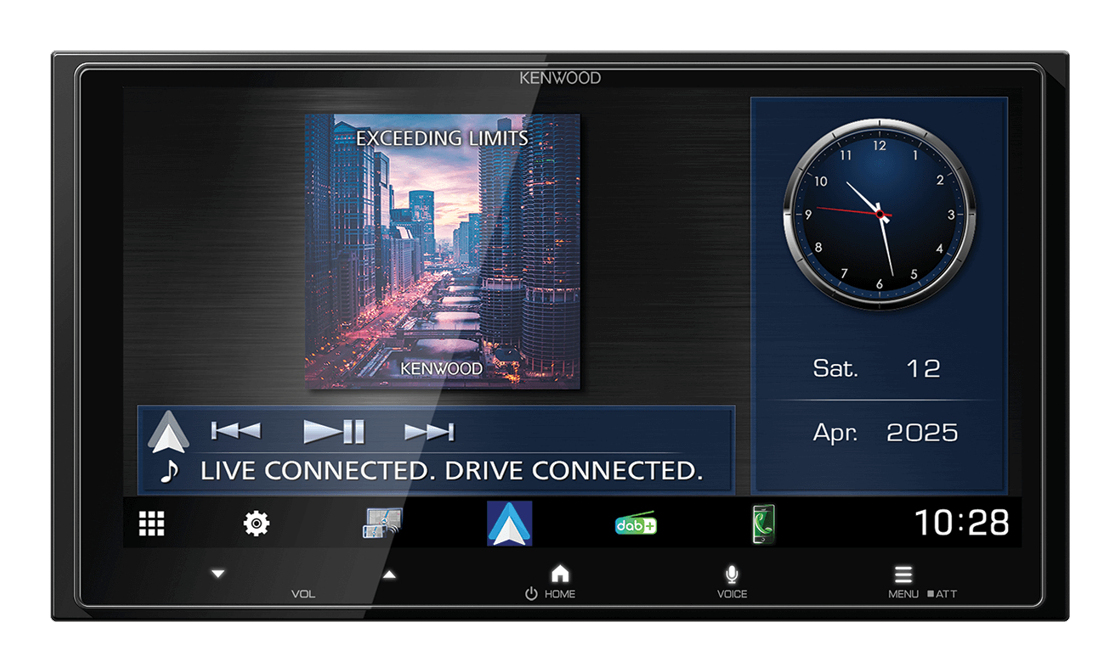

DMX7525DABS car media receiver Black Wi-Fi
Kenwood

DMX7525DABS car media receiver Black Wi-Fi

200 W Bluetooth

Model DMX7525DABSEAN 019048241993

87 specifications
  • Display17.6 cm (6.92")
  • Resolution1280 x 720 pixels
  • Weight1.14 kg
  • ColourBlack
  • MP3 playbackYes
  • Preset stations quantity20
See all specifications

Overview

Display
17.6 cm (6.92")
Resolution
1280 x 720 pixels
Weight
1.14 kg
Colour
Black
MP3 playback
Yes
Preset stations quantity
20
Brand
Kenwood
Model
DMX7525DABS
Part number
DMX7525DABS
EAN / UPC
019048241993
Also known as
Kenwood DMX7525DABS car media receiver Black Wi-Fi 200 W Bluetooth

Specifications

87 specifications in 10 groups

Performance

Product colourBlack
DIN size2 DIN
Output power200 W
Maximum power per channel50 W
Frequency range20 - 20000 Hz
Impedance8 Ω
Analog signal format systemNTSC, PAL
Ready for iPodYes
iPod Direct ControlYes
High pass filterYes
Low pass filterYes
EqualizerYes
Equalizer bands quantity13
Equalizer customizableYes
Clock mode24h
Integrated clockYes
RDS featuresAF, DLS, EON, PTY, TA, TI
Customizable GUIYes
Loudness controlYes
DimmerYes
Time alignmentYes
Bass boost technologyYes
OEM steering remote controlYes
Firmware upgradeableYes
Voice controlYes

Multimedia

MP3 playbackYes
USB direct playbackYes
CD-R playbackNo
Built-in audio D/A Converter (DAC)Yes
Audio D/A Converter (DAC)24-bit
Audio formats supportedAAC, FLAC, MP3, MPEG-1, WAV, WMA
Video formats supportedH.264, MKV, MPEG1, MPEG2, MPEG4, WMV

Display

Built-in displayYes
Display typeLCD
TouchscreenYes
Touchscreen typeCapacitive
WidescreenYes
Display diagonal17.6 cm (6.92")
Display resolution1280 x 720 pixels
Display illuminationYes
Number of OSD languages12
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Polish, Portuguese
LED backlightYes
Rear-view camera readyYes

Ports & interfaces

Wi-FiYes
BluetoothYes
Wi-Fi frequency5 GHz
Bluetooth version5.3
Bluetooth profilesA2DP, AVRCP, HFP, PBAP, SPP
Bluetooth range10 m
HDMIYes
ISO connectorYes
USB portYes
USB version2.0
USB connector typeUSB Type-A
Apple CarPlay supportYes
Android Auto supportYes
AV inputYes
AV outputYes
Line outputs (RCA)2
Microphone inYes
Pre out portYes

Radio

Preset stations quantity20
Supported radio bandsAM, DAB, DAB+, FM, LW, MW
FM band range87.5 - 108 MHz
Radio Data System (RDS)Yes

Call management

Hands-free callingYes
Call historyYes

GPS Performance

GPS compatibilityYes
GPS (satellite)Yes

Weight & dimensions

Width178 mm
Depth109 mm
Height100 mm
Weight1.14 kg

Technical details

Video output level1 Vpp
Antenna connector typeJASO
Customizable wallpaperYes
FaderYes
File format systemFAT16 / FAT32 / exFAT / NTFS
Key illumination colourWhite
Reverse connectionYes
SlideshowYes
Subwoofer crossover frequencies (LPF)Yes

Packaging content

Cables includedDC, USB
IFU / User manualYes
Microphone includedYes
