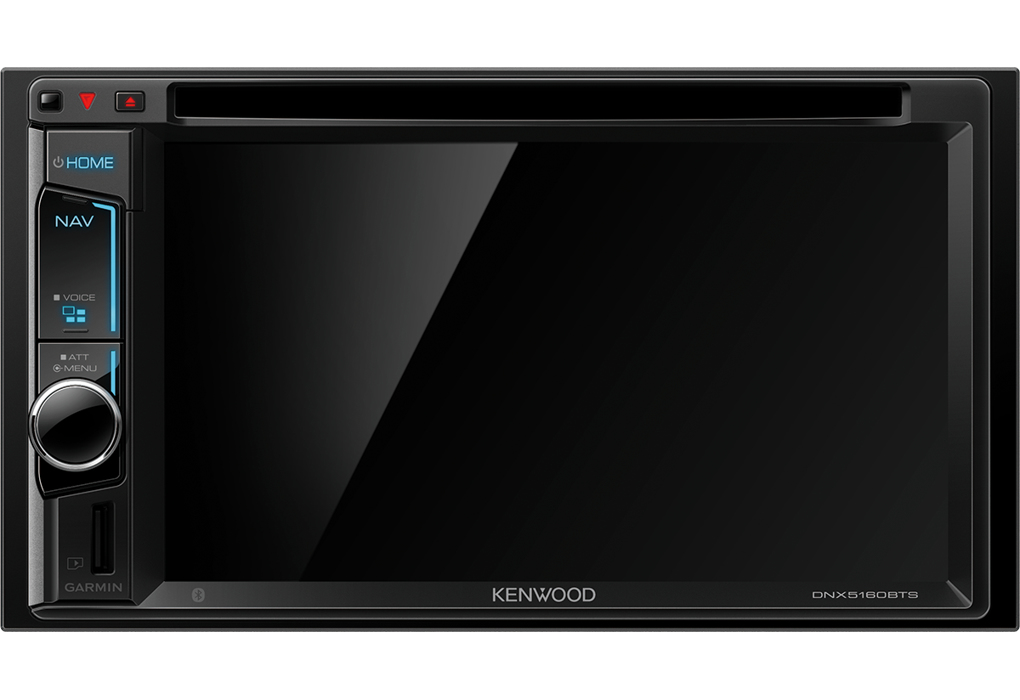

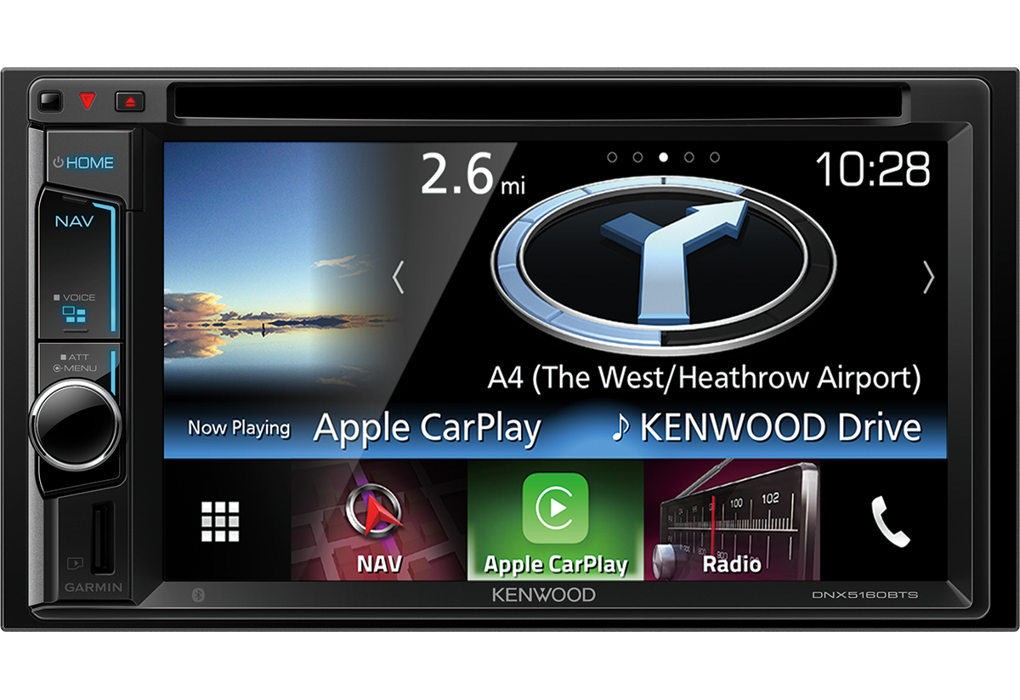

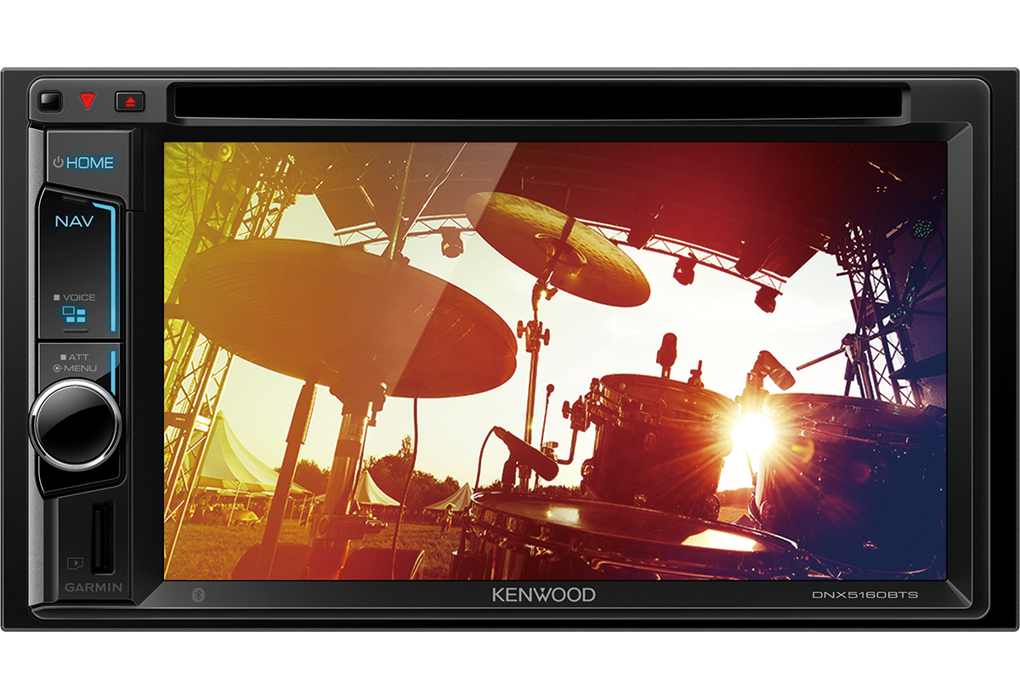

DNX5160BTS car media receiver Black
200 W Bluetooth
Model DNX5160BTSEAN 019048215321
83 specifications
- Display15.8 cm (6.2")
- Resolution800 x 480 pixels
- Weight2.1 kg
- ColourBlack
- MP3 playbackYes
- Preset stations quantity20
Overview
- Display
- 15.8 cm (6.2")
- Resolution
- 800 x 480 pixels
- Weight
- 2.1 kg
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 20
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- DNX5160BTS
- Part number
- DNX5160BTS
- EAN / UPC
- 019048215321
- Also known as
- Kenwood DNX5160BTS car media receiver Black 200 W Bluetooth
Specifications
83 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 200 W |
| Frequency range | 20 - 44000 Hz |
| Signal-to-Noise Ratio (SNR) | 98 dB |
| CD player | Yes |
| DVD player | Yes |
| DVD region code | 2 |
| Disc types supported | CD, CD-DA, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Mobile operating systems supported | Android, iOS |
| Ready for iPod | Yes |
| iPod Direct Control | Yes |
| iPod connectivity | Yes |
| High pass filter | Yes |
| Volume control | Digital |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Equalizer customizable | Yes |
| RDS features | AF, TP |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | Yes |
| CD-RW playback | Yes |
| DVD Audio playback | Yes |
| DVD Video playback | Yes |
| Audio D/A Converter (DAC) | 32 bit |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Image formats supported | BMP, JPEG XR, PNG |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 15.8 cm (6.2") |
| Display resolution | 800 x 480 pixels |
| Adjustable colour | Yes |
| Display illumination | Yes |
| Display tilting | Yes |
| Foldable | Yes |
| Number of OSD languages | 21 |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hebrew, Hungarian, Indonesian, Italian, Korean, MSA, Persian, Polish, Portuguese, Russian, Thai, Turkish |
| Display technology | LCD |
| LED backlight | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Bluetooth profiles | AVRCP, GAP, HID, SPP, SSP |
| Bluetooth functions | Audiostreaming, Handsfree calling |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Apple docking | Yes |
| Apple docking compatibility | Yes |
| AV input | Yes |
| Line outputs (RCA) | 3 |
| Pre out port | Yes |
| Subwoofer out | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 20 |
| Supported radio bands | AM, FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| Radio Data System (RDS) | Yes |
| Auto digital tuning | Yes |
| FM radio | Yes |
GPS Performance
| Specification | Value |
|---|---|
| GPS compatibility | Yes |
| GPS (satellite) | Yes |
| GPS antenna | Yes |
Power
| Specification | Value |
|---|---|
| Output power (DIN) | 50 W x 4 |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 182 x 112 x 153 mm |
| Weight | 2.1 kg |
Technical details
| Specification | Value |
|---|---|
| USB mass storage | Yes |
| Browsing | Yes |
| File format system | FAT32/NTFS |
| Filtering | Yes |
| Number of optical discs | 1 discs |
| Pause function | Yes |
| Tuner enhancements | Auto scan, Auto tuning |
Memory
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AV, DC |
| Microphone included | Yes |
| Remote control included | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3 kg |
