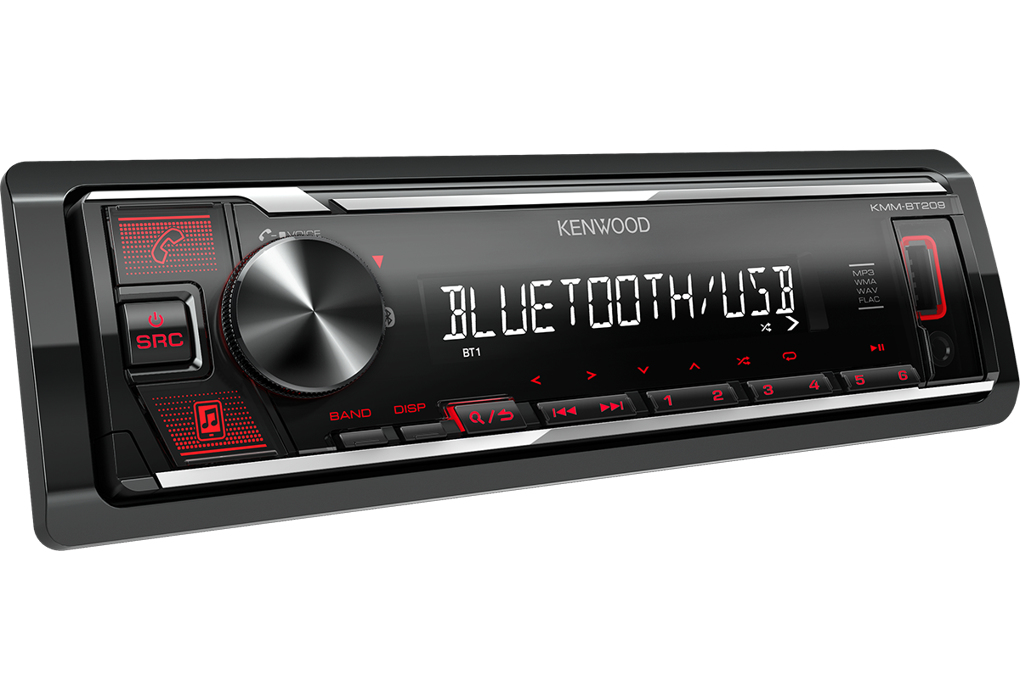

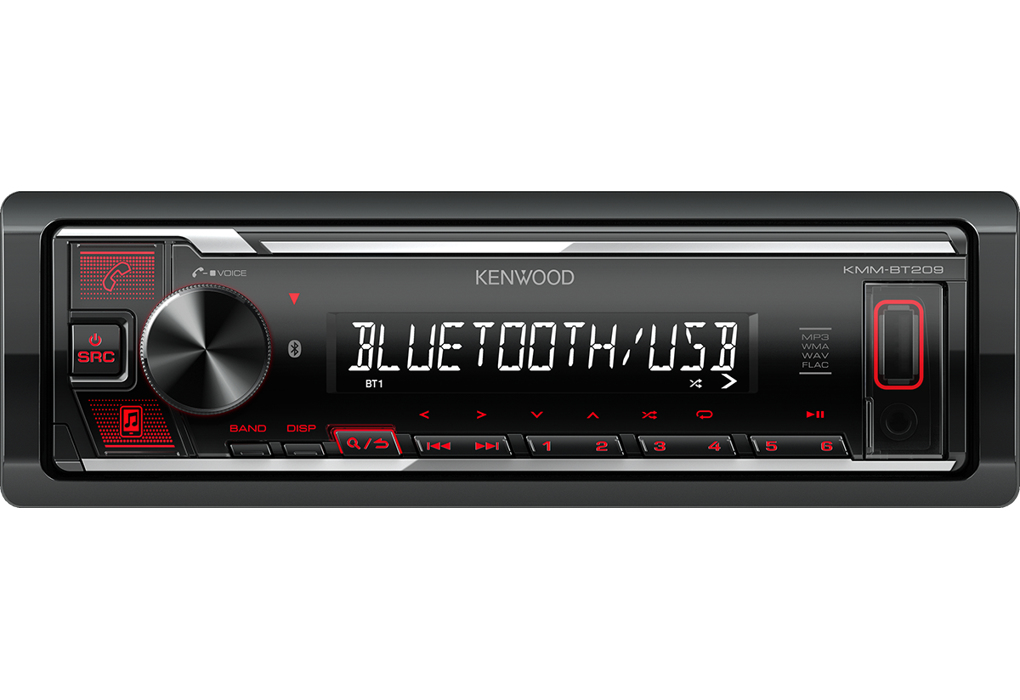

KMM-BT209 car media receiver Black
200 W Bluetooth
Model KMM-BT209EAN 019048233974
57 specifications
- Weight600 g
- ColourBlack
- MP3 playbackYes
- Wi-FiNo
- Preset stations quantity24
- Width182 mm
Overview
- Weight
- 600 g
- Colour
- Black
- MP3 playback
- Yes
- Wi-Fi
- No
- Preset stations quantity
- 24
- Width
- 182 mm
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- KMM-BT209
- Part number
- KMM-BT209
- EAN / UPC
- 019048233974
- Also known as
- Kenwood KMM-BT209 car media receiver Black 200 W Bluetooth
Specifications
57 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 1 DIN |
| Output power | 200 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 20000 Hz |
| CD player | No |
| DVD player | No |
| Disc types supported | No |
| Ready for iPod | Yes |
| iPod connectivity | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Integrated clock | Yes |
| Dimmer | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio D/A Converter (DAC) | 24 bit |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Display digits | 13 digits |
| Display number of lines | 1 lines |
| Display illumination | Yes |
| Illumination colour | White |

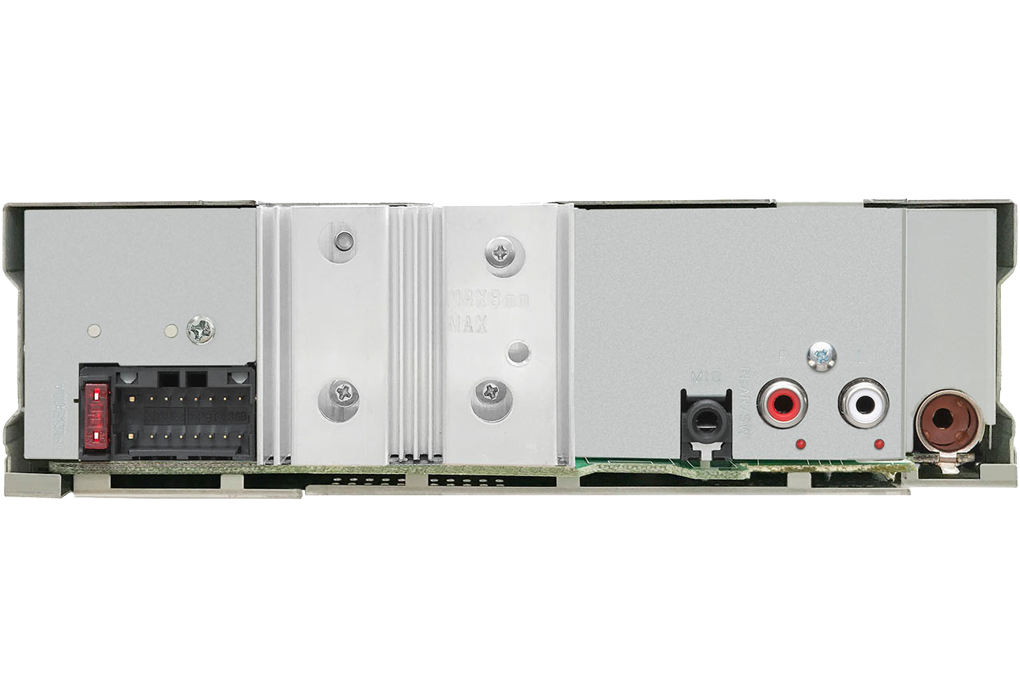

Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth profiles | AAC, SBC |
| Bluetooth range | 10 m |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB port position | Front |
| Illuminated USB port | Yes |
| AUX in | Yes |
| Line outputs (RCA) | 1 |
| Microphone in | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 24 |
| Supported radio bands | AM, FM, LW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 100 mm |
| Height | 53 mm |
| Weight | 600 g |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Memory
| Specification | Value |
|---|---|
| Card reader integrated | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Cables included | DC |
| Microphone included | Yes |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
