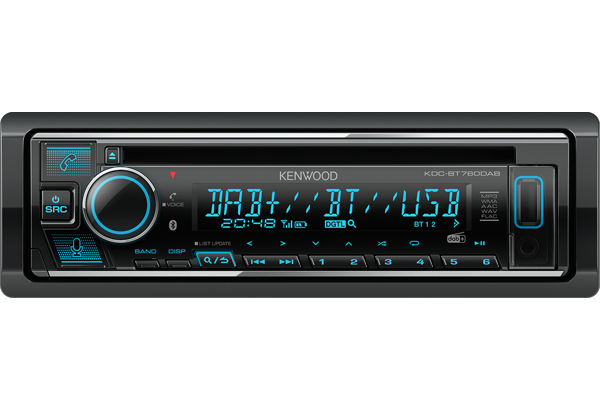

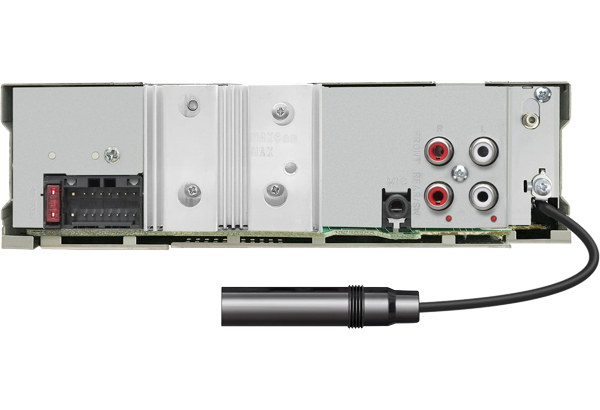

KDC-BT760DAB Black
50 W Bluetooth
Model KDC-BT760DABPart no. KDCBT760DABEAN 019048233783
53 specifications
- Weight1.2 kg
- ColourBlack
- MP3 playbackYes
- Supported radio bandsDAB+, FM, LW
- Width182 mm
- Operating temperature (T-T)-10 - 60 °C
Overview
- Weight
- 1.2 kg
- Colour
- Black
- MP3 playback
- Yes
- Supported radio bands
- DAB+, FM, LW
- Width
- 182 mm
- Operating temperature (T-T)
- -10 - 60 °C
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- KDC-BT760DAB
- Part number
- KDCBT760DAB
- EAN / UPC
- 019048233783
- Also known as
- Kenwood KDC-BT760DAB Black 50 W Bluetooth
Specifications
53 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 1 DIN |
| Output power | 50 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 50 W |
| CD player | Yes |
| Disc types supported | CD-R, CD-RW |
| Ready for iPod | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Clock mode | 24h |
| Integrated clock | Yes |
| Time alignment | Yes |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | Yes |
| Built-in audio D/A Converter (DAC) | Yes |
| Audio D/A Converter (DAC) | 24bit |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Touchscreen | No |
| Display number of lines | 2 lines |
| Brightness adjustment | Yes |
| Detachable display | Yes |
| On Screen Display (OSD) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP, SPP |
| Bluetooth range | 10 m |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 1.1/2.0 |
| AUX in | Yes |
| Line outputs (RCA) | 2 |
| Microphone in | Yes |
| Pre out port | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | DAB+, FM, LW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
| DAB tuner | DAB+ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 155.5 mm |
| Height | 53 mm |
| Weight | 1.2 kg |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Cables included | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
