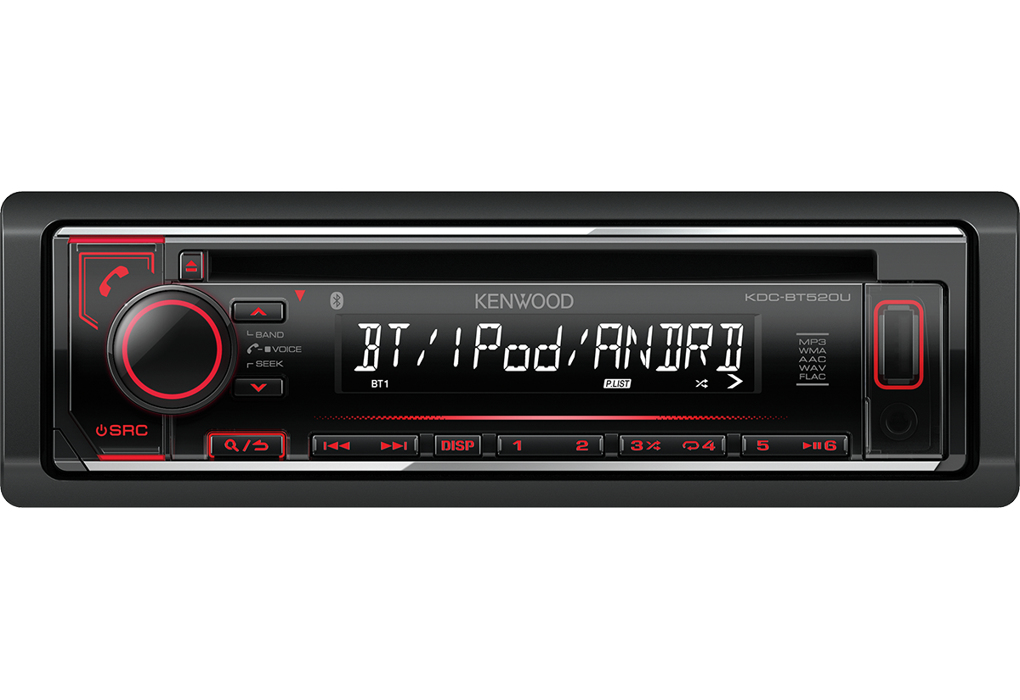

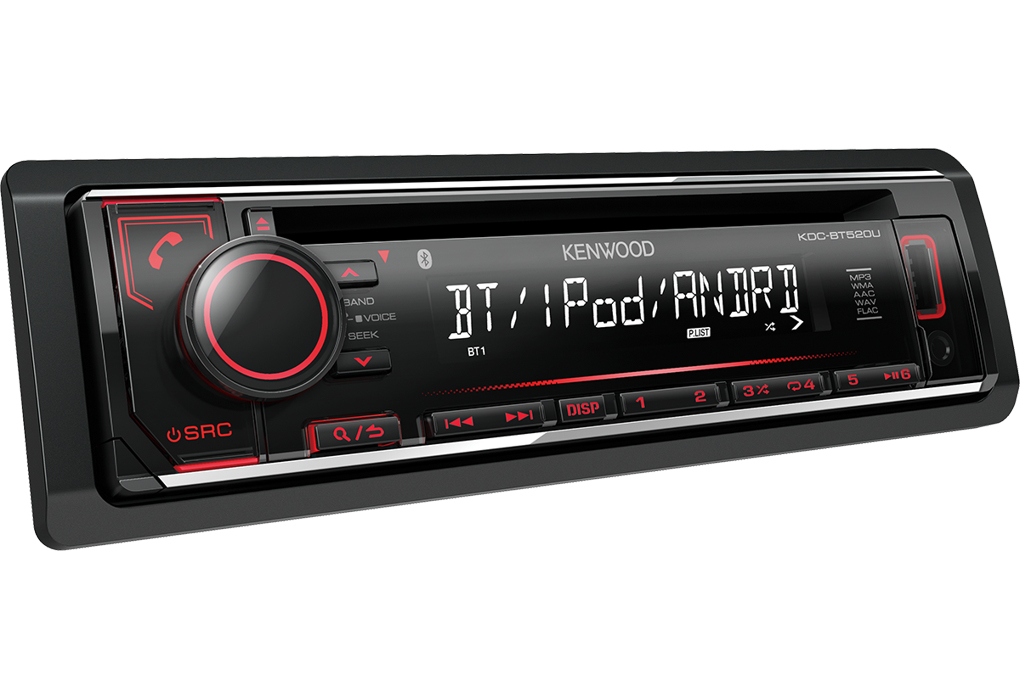

KDC-BT520U car media receiver Black
88 W Bluetooth
Model KDC-BT520U
47 specifications
- Weight1.3 kg
- ColourBlack
- MP3 playbackYes
- Preset stations quantity24
- Operating temperature (T-T)-10 - 60 °C
Overview
- Weight
- 1.3 kg
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 24
- Operating temperature (T-T)
- -10 - 60 °C
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- KDC-BT520U
- Part number
- KDC-BT520U
- Also known as
- Kenwood KDC-BT520U car media receiver Black 88 W Bluetooth
Specifications
47 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 1 DIN |
| Output power | 88 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 2000 Hz |
| Signal-to-Noise Ratio (SNR) | 105 dB |
| Impedance | 8 Ω |
| Disc types supported | CD-R, CD-RW |
| Ready for iPod | Yes |
| Volume control | Rotary |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Removable front panel | Yes |
| Clock mode | 24h |
| Integrated clock | Yes |
| RDS features | PTY, RT |
| Dimmer | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | Yes |
| CD-RW playback | Yes |
| Audio D/A Converter (DAC) | 24bit |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | No |
| Display illumination | Yes |
| Illumination colour | Red |
| ID3 Tag display | Yes |
| CD Text | Yes |

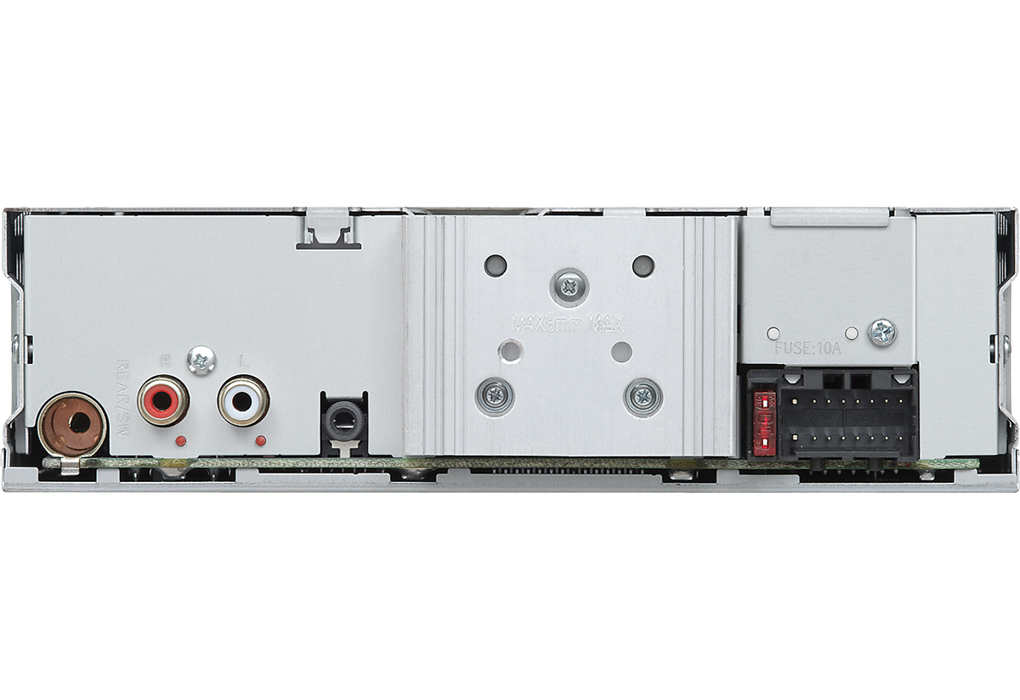

Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP, SPP |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB port position | Front |
| AUX in | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 24 |
| Supported radio bands | FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
