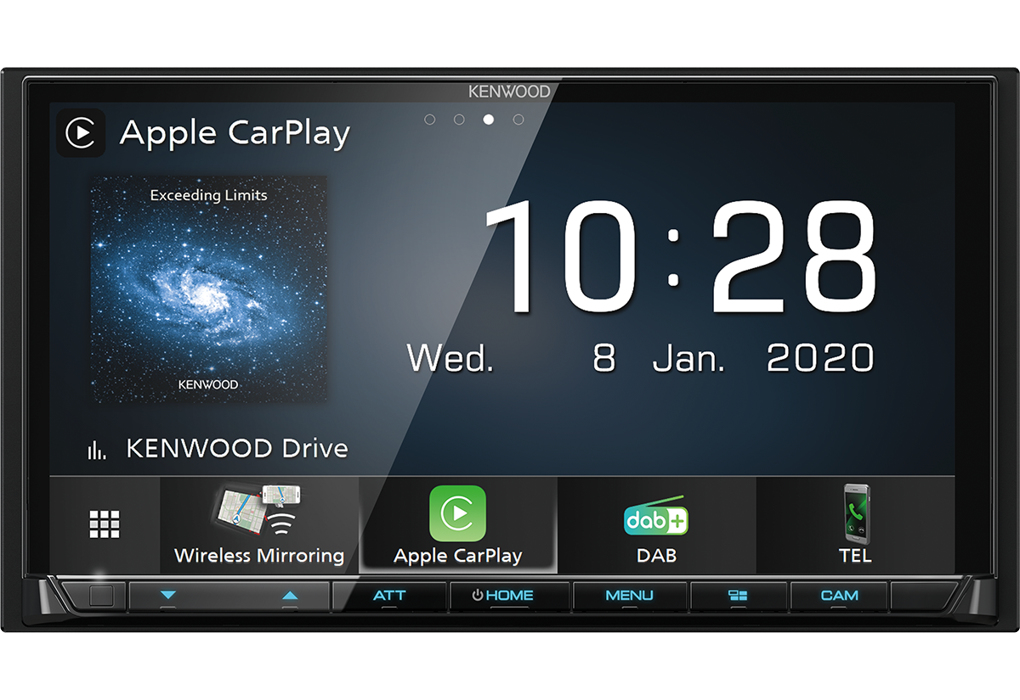

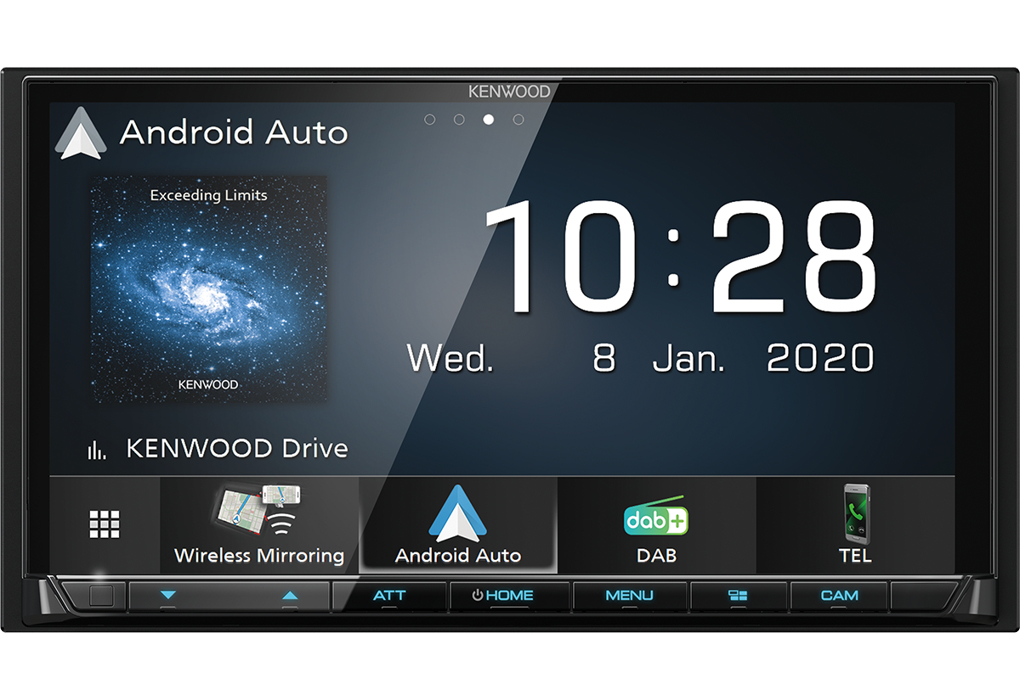

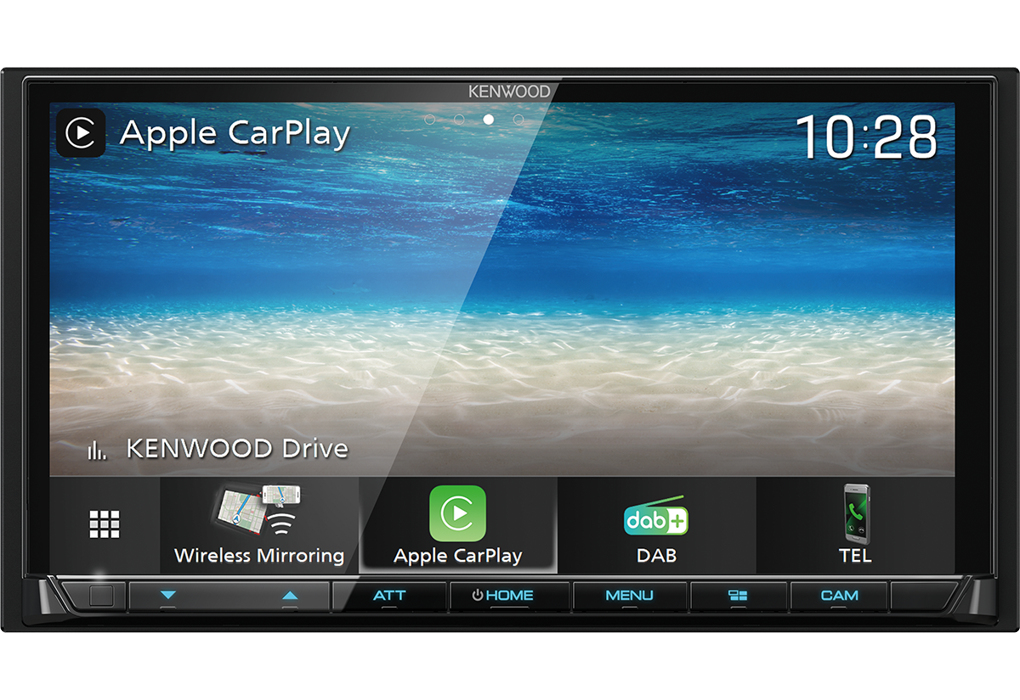

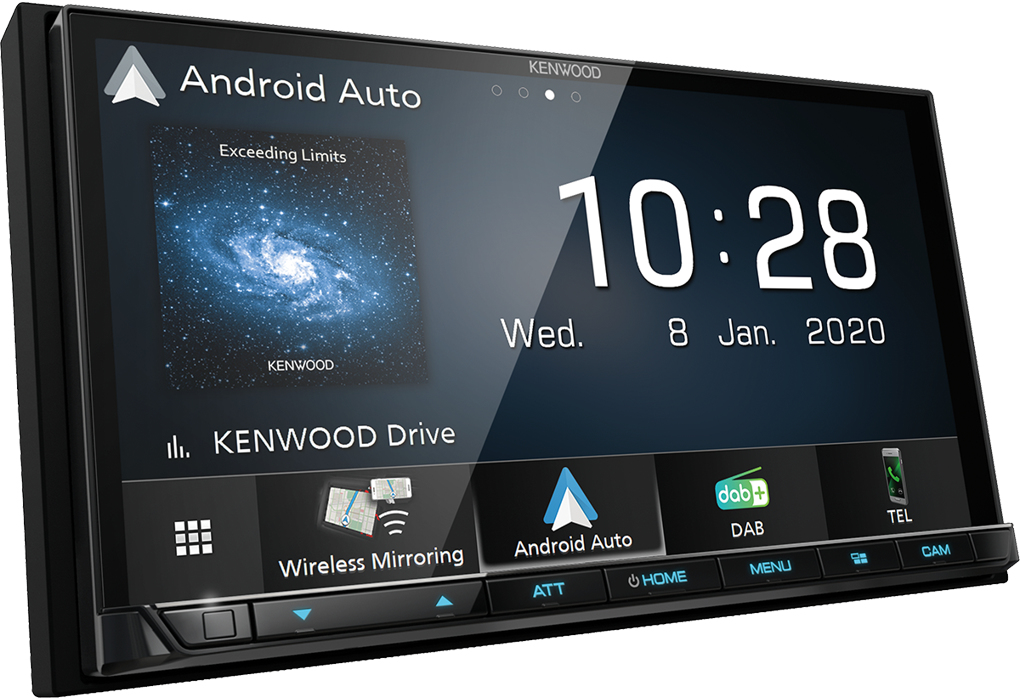

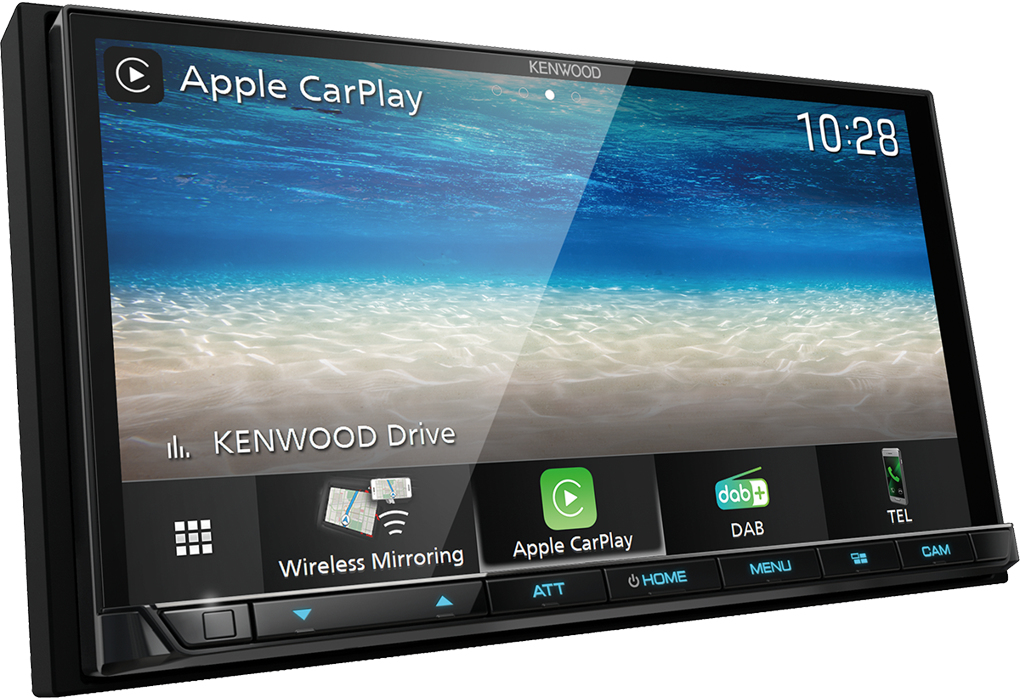

DMX8020DABS Black
200 W Bluetooth
Model DMX8020DABSPart no. DMX8020DS-T9EAN 019048229731
56 specifications
- Display17.6 cm (6.95")
- Resolution800 x 480 pixels
- Weight1.7 kg
- ColourBlack
- MP3 playbackYes
- Preset stations quantity20
Overview
- Display
- 17.6 cm (6.95")
- Resolution
- 800 x 480 pixels
- Weight
- 1.7 kg
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 20
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- DMX8020DABS
- Part number
- DMX8020DS-T9
- EAN / UPC
- 019048229731
- Also known as
- Kenwood DMX8020DABS Black 200 W Bluetooth
Specifications
56 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 200 W |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 88000 Hz |
| Impedance | 8 Ω |
| Analog signal format system | NTSC, PAL |
| Ready for iPod | Yes |
| iPod Direct Control | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Clock mode | 24h |
| Integrated clock | Yes |
| Dimmer | Yes |
| Firmware upgradeable | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio formats supported | AAC, FLAC, MP3, Vorbis, WAV, WMA |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 17.6 cm (6.95") |
| Display resolution | 800 x 480 pixels |
| Display illumination | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth profiles | A2DP, AVRCP, PBAP, SPP |
| Bluetooth functions | Handsfree calling |
| Bluetooth range | 10 m |
| HDMI | Yes |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Apple CarPlay support | Yes |
| Android Auto support | Yes |

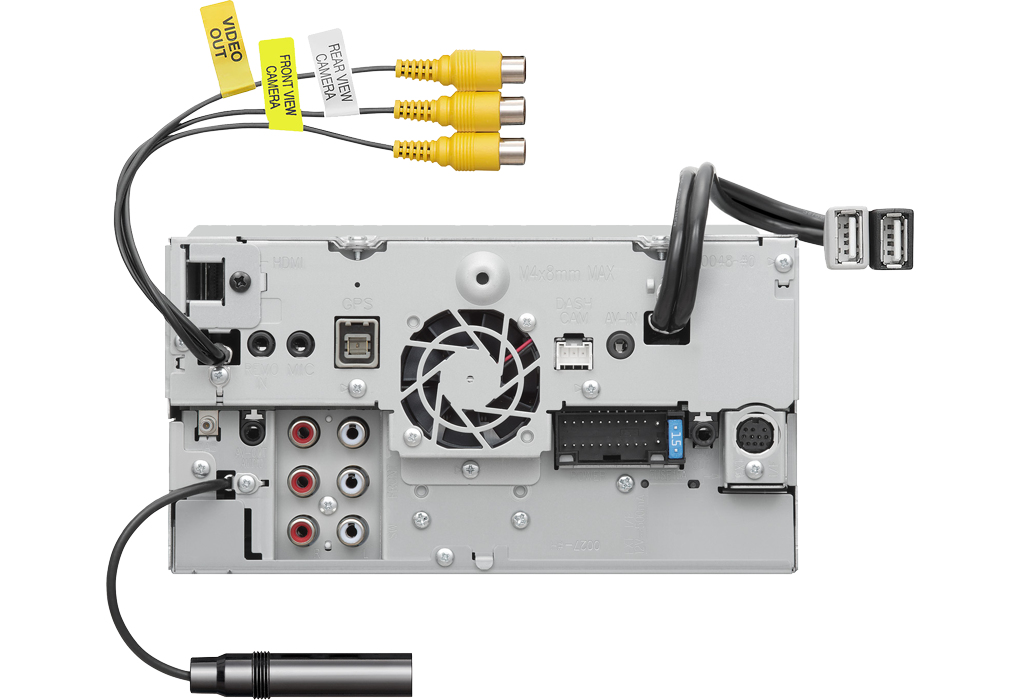

| AV input | Yes |
| AV output | Yes |
| Pre out port | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 20 |
| Supported radio bands | AM, DAB, DAB+, FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
GPS Performance
| Specification | Value |
|---|---|
| GPS compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 155 mm |
| Height | 100 mm |
| Weight | 1.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC, USB |
| IFU / User manual | Yes |
| Microphone included | Yes |
