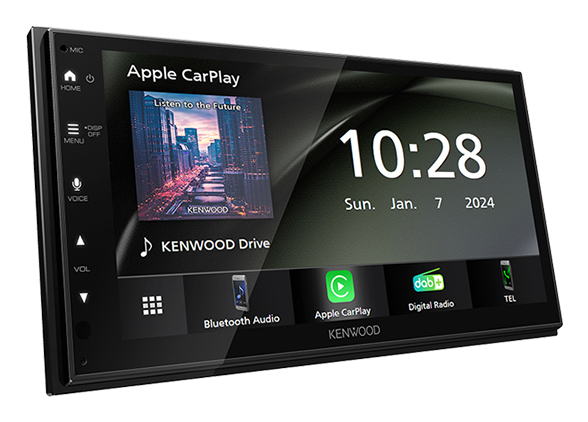

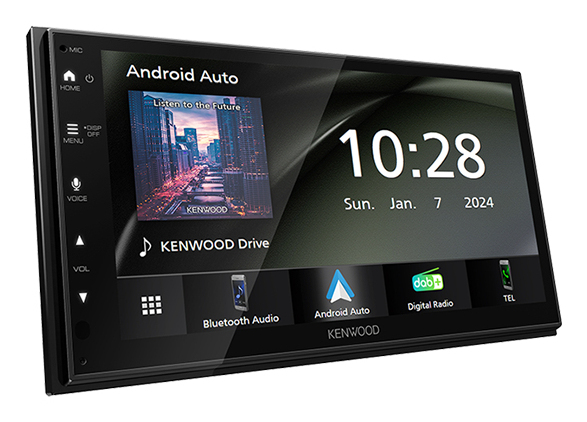

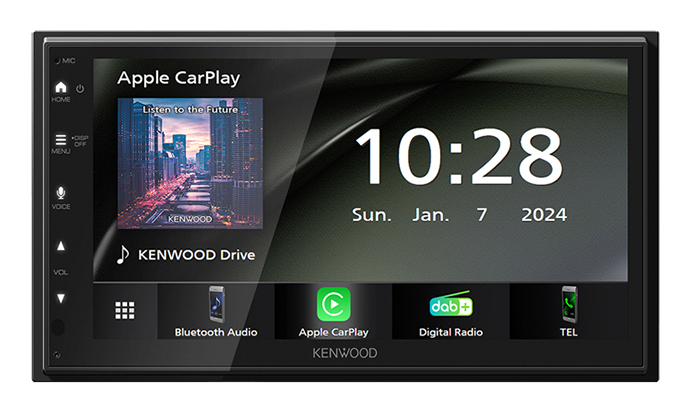

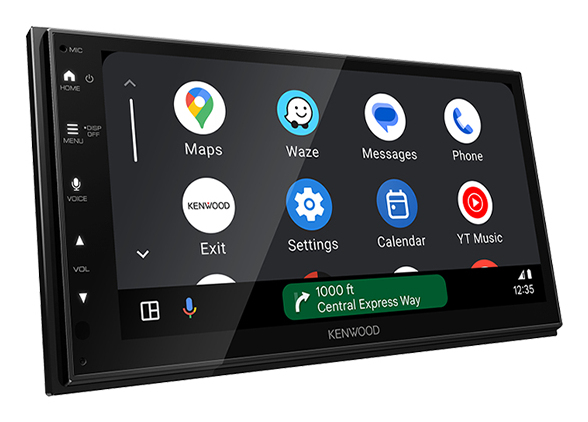

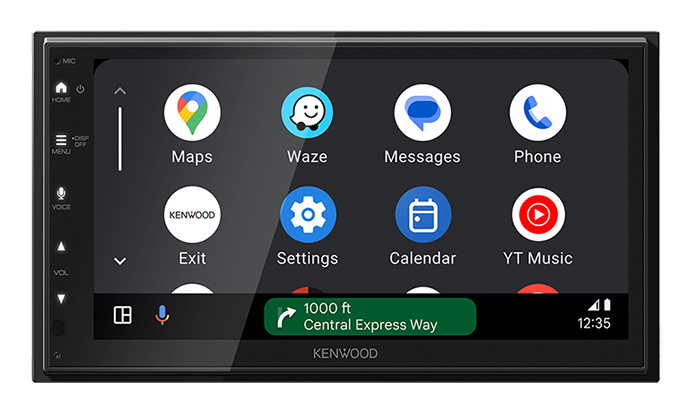

DMX6523DABS car media receiver Black Wi-Fi Bluetooth
Model DMX6523DABSEAN 019048240620
49 specifications
- Display17.3 cm (6.8")
- Resolution1024 x 600 pixels
- Weight1.28 kg
- ColourBlack
- MP3 playbackYes
- Supported radio bandsAM, DAB, DAB+, FM
Overview
- Display
- 17.3 cm (6.8")
- Resolution
- 1024 x 600 pixels
- Weight
- 1.28 kg
- Colour
- Black
- MP3 playback
- Yes
- Supported radio bands
- AM, DAB, DAB+, FM
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- DMX6523DABS
- Part number
- DMX6523DABS
- EAN / UPC
- 019048240620
- Also known as
- Kenwood DMX6523DABS car media receiver Black Wi-Fi Bluetooth
Specifications
49 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 20000 Hz |
| Signal-to-Noise Ratio (SNR) | 75 dB |
| Impedance | 100 Ω |
| Disc types supported | No |
| Ready for iPod | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Time alignment | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| Audio formats supported | AAC, FLAC, MP3, OGG, WAV, WMA |
| Video formats supported | H.264, MKV, MPEG, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display diagonal | 17.3 cm (6.8") |
| Display resolution | 1024 x 600 pixels |

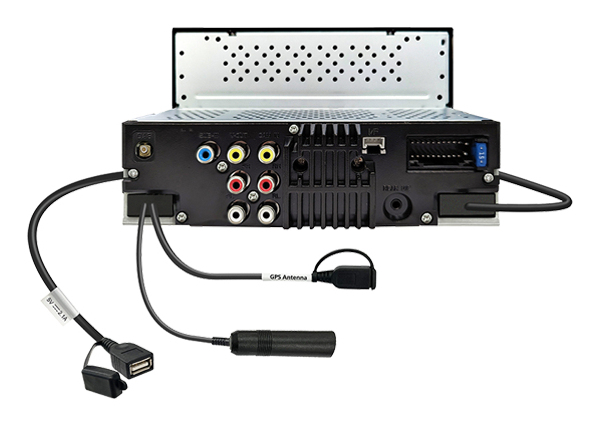

Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi frequency | 5 GHz |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Signal strength | 17.78 dBm |
| Bluetooth version | 5.0 |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP, SPP |
| Bluetooth range | 10 m |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| USB port position | Rear |
| Apple CarPlay support | Yes |
| Android Auto support | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB, DAB+, FM |
| FM band range | 87.5 - 108 MHz |
| FM usable sensitivity | 5 dBf |
| AM sensitivity (LW) | 99 μV |
| Auto digital tuning | Yes |
| DAB tuner | DAB+ |
Call management
| Specification | Value |
|---|---|
| Hands-free calling | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 181.7 mm |
| Depth | 85.7 mm |
| Height | 112 mm |
| Weight | 1.28 kg |
Memory
| Specification | Value |
|---|---|
| Card reader integrated | No |
