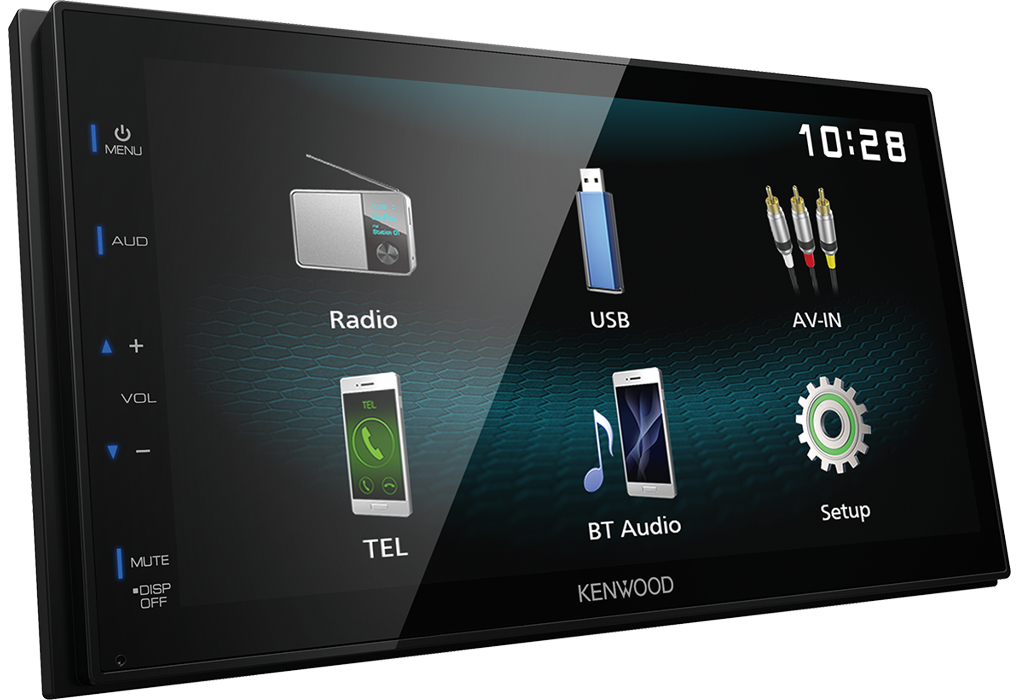

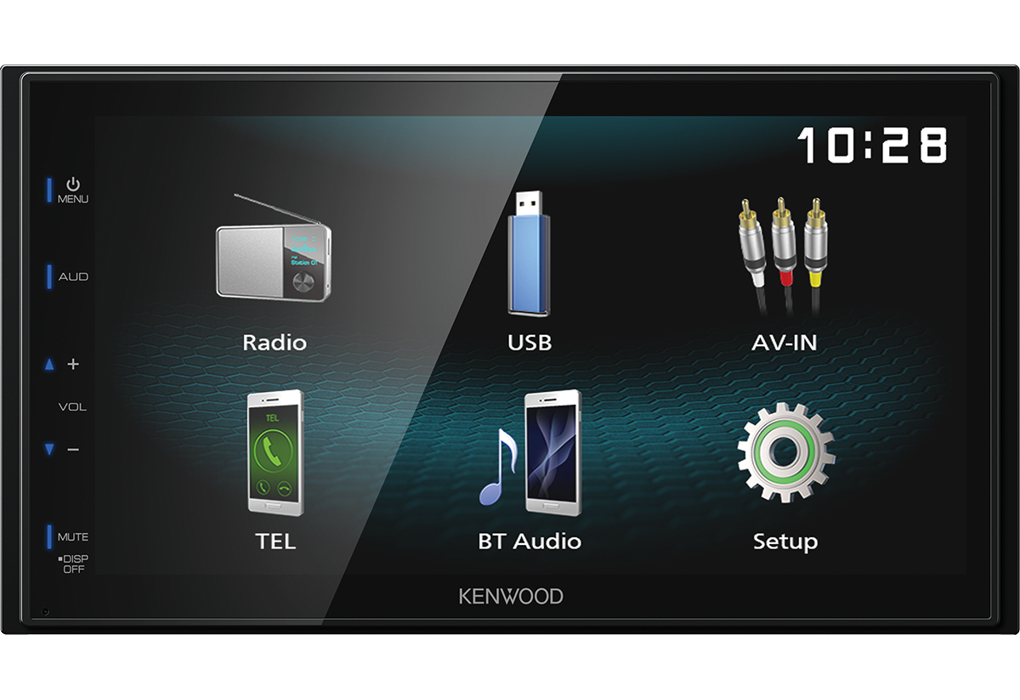

DMX120BT car media receiver Black
84 W Bluetooth
Model DMX120BTEAN 019048227331
60 specifications
- Display17.3 cm (6.8")
- Resolution800 x 480 pixels
- Weight900 g
- ColourBlack
- MP3 playbackYes
- Preset stations quantity30
Overview
- Display
- 17.3 cm (6.8")
- Resolution
- 800 x 480 pixels
- Weight
- 900 g
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 30
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- DMX120BT
- Part number
- DMX120BT
- EAN / UPC
- 019048227331, 1275906000006
- Also known as
- Kenwood DMX120BT car media receiver Black 84 W Bluetooth
Specifications
60 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 84 W |
| Maximum power per channel | 50 W |
| Signal-to-Noise Ratio (SNR) | 99 dB |
| CD player | No |
| DVD player | No |
| Disc types supported | No |
| Analog signal format system | NTSC, PAL |
| Mobile operating systems supported | Android |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 7 |
| Clock mode | 24h |
| Integrated clock | Yes |
| RDS features | EON, PTY, TI, TP |
| Built-in microphone | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| Audio D/A Converter (DAC) | 24bit |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Image formats supported | JPEG |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | TFT |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 17.3 cm (6.8") |
| Display resolution | 800 x 480 pixels |
| Number of OSD languages | 12 |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Polish, Portuguese, Russian |
| LED backlight | Yes |
| Rear-view camera ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP |
| Bluetooth functions | Audiostreaming, Handsfree calling |
| Bluetooth range | 10 m |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB port position | Rear |
| AV input | Yes |
| AV output | Yes |
| Microphone in | Yes |
| Pre out port | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 30 |
| Supported radio bands | AM, FM, MW |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
| Radio Data System (RDS) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 74.5 mm |
| Height | 112 mm |
| Weight | 900 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Microphone included | Yes |
| Quick start guide | Yes |
