DDX4017BT car media receiver Black
50 W Bluetooth
Model DDX4017BTEAN 019048217271
52 specifications
- Display15.8 cm (6.2")
- Resolution800 x 480 pixels
- Weight1.7 kg
- ColourBlack
- MP3 playbackYes
- Preset stations quantity20
Overview
- Display
- 15.8 cm (6.2")
- Resolution
- 800 x 480 pixels
- Weight
- 1.7 kg
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 20
- Brand
- Kenwood
- Category
- Car Media Receiver
- Model
- DDX4017BT
- Part number
- DDX4017BT
- EAN / UPC
- 019048217271
- Also known as
- Kenwood DDX4017BT car media receiver Black 50 W Bluetooth
Specifications
52 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 50 W |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 50 W |
| Frequency range | 30 - 15000 Hz |
| Signal-to-Noise Ratio (SNR) | 99 dB |
| Impedance | 4 Ω |
| DVD region code | 2 |
| Disc types supported | CD-DA, CD-R, CD-RW, DVD+R, DVD+RW |
| Ready for iPod | Yes |
| Bass adjustment | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Dimmer | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | Yes |
| CD-RW playback | Yes |
| DVD Audio playback | Yes |
| DVD Video playback | Yes |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Video formats supported | DIVX, MPEG1, MPEG2 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | TFT |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 15.8 cm (6.2") |
| Display resolution | 800 x 480 pixels |
| Illumination colour | Multi |
| Number of OSD languages | 21 |
| On Screen Display (OSD) | Yes |
| Rear-view camera ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Bluetooth profiles | A2DP, AVRCP, GAP, HFP, PBAP, SDP, SPP, SSP |

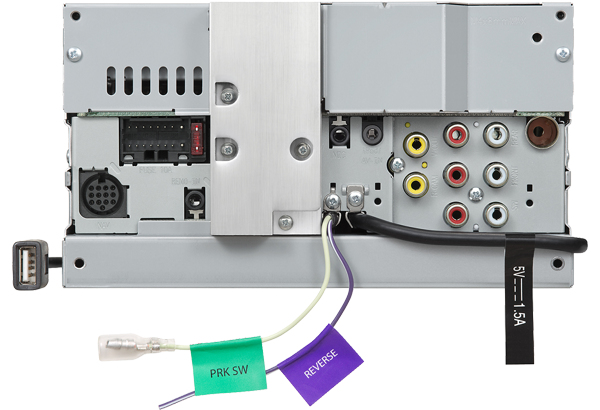

| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 20 |
| Supported radio bands | FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 182 x 165 x 111 mm |
| Weight | 1.7 kg |
Technical details
| Specification | Value |
|---|---|
| Output voltage | 14.4 V |
| Browsing | Yes |
| Fader | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
