KW-M785DBW car media receiver Black Wi-Fi
200 W Bluetooth
Model KW-M785DBWEAN 4975769027048
67 specifications
- Display17.3 cm (6.8")
- Resolution800 x 480 pixels
- Weight1.2 kg
- ColourBlack
- MP3 playbackYes
- Preset stations quantity20
Overview
- Display
- 17.3 cm (6.8")
- Resolution
- 800 x 480 pixels
- Weight
- 1.2 kg
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 20
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KW-M785DBW
- Part number
- KW-M785DBW
- EAN / UPC
- 4975769027048
- Also known as
- JVC KW-M785DBW car media receiver Black Wi-Fi 200 W Bluetooth
Specifications
67 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 200 W |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 88000 Hz |
| Signal-to-Noise Ratio (SNR) | 98.5 dB |
| Impedance | 8 Ω |
| Disc types supported | No |
| Analog signal format system | NTSC, PAL |
| Ready for iPod | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 8 |
| Equalizer customizable | No |
| Customizable GUI | Yes |
| Dimmer | Yes |
| Steering mounting remote control capability | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Widescreen | Yes |
| Display diagonal | 17.3 cm (6.8") |
| Display resolution | 800 x 480 pixels |
| Display illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Swivel angle range | 0 - 20° |
| LED backlight | Yes |
| Rear-view camera ready | Yes |

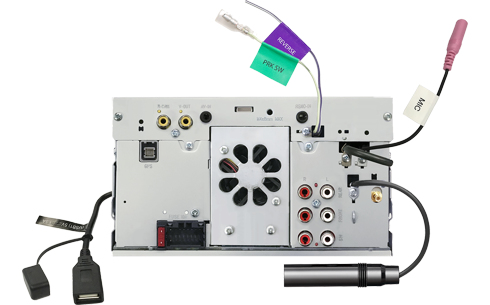

Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi frequency | 2.4 GHz |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bluetooth version | 5.0 |
| USB port | Yes |
| USB ports quantity | 1 |
| Apple CarPlay support | Yes |
| Android Auto support | Yes |
| AV output | Yes |
| Camera video in | Yes |
| Line outputs (RCA) | 1 |
| Number of video outputs | 1 |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 20 |
| Supported radio bands | DAB+ |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
| Automatic presetting | Yes |
| Strong station memory | Yes |
| DAB tuner | Yes |
Call management
| Specification | Value |
|---|---|
| Hands-free calling | Yes |
| Speed dialling | Yes |
GPS Performance
| Specification | Value |
|---|---|
| GPS (satellite) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 75 mm |
| Height | 100 mm |
| Installation compartment width | 18.2 cm |
| Installation compartment depth | 7.5 cm |
| Installation compartment height | 11.1 cm |
| Weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
