KW-M741BT 2DIN, Mechless, Multimedia system
Model KW-M741BTPart no. KWM741BTEAN 4975769450860
41 specifications
- Display17.3 cm (6.8")
- ColourBlack
- MP3 playbackYes
- Preset stations quantity20
- Operating temperature (T-T)-10 - 60 °C
Overview
- Display
- 17.3 cm (6.8")
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 20
- Operating temperature (T-T)
- -10 - 60 °C
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KW-M741BT
- Part numbers
- KWM741BT, KW-M741BT
- EAN / UPC
- 4975769450860
- Also known as
- JVC KW-M741BT 2DIN, Mechless, Multimedia system
Specifications
41 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Maximum power per channel | 50 W |
| Analog signal format system | NTSC, PAL |
| Bass adjustment | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Dimmer | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio system | MOS-FET |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Image formats supported | BMP, JPEG, PNG |
| Video formats supported | AVI, H.264, MKV, MPEG1, MPEG2, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 17.3 cm (6.8") |
| Illumination colour | White |
| Rear-view camera ready | Yes |

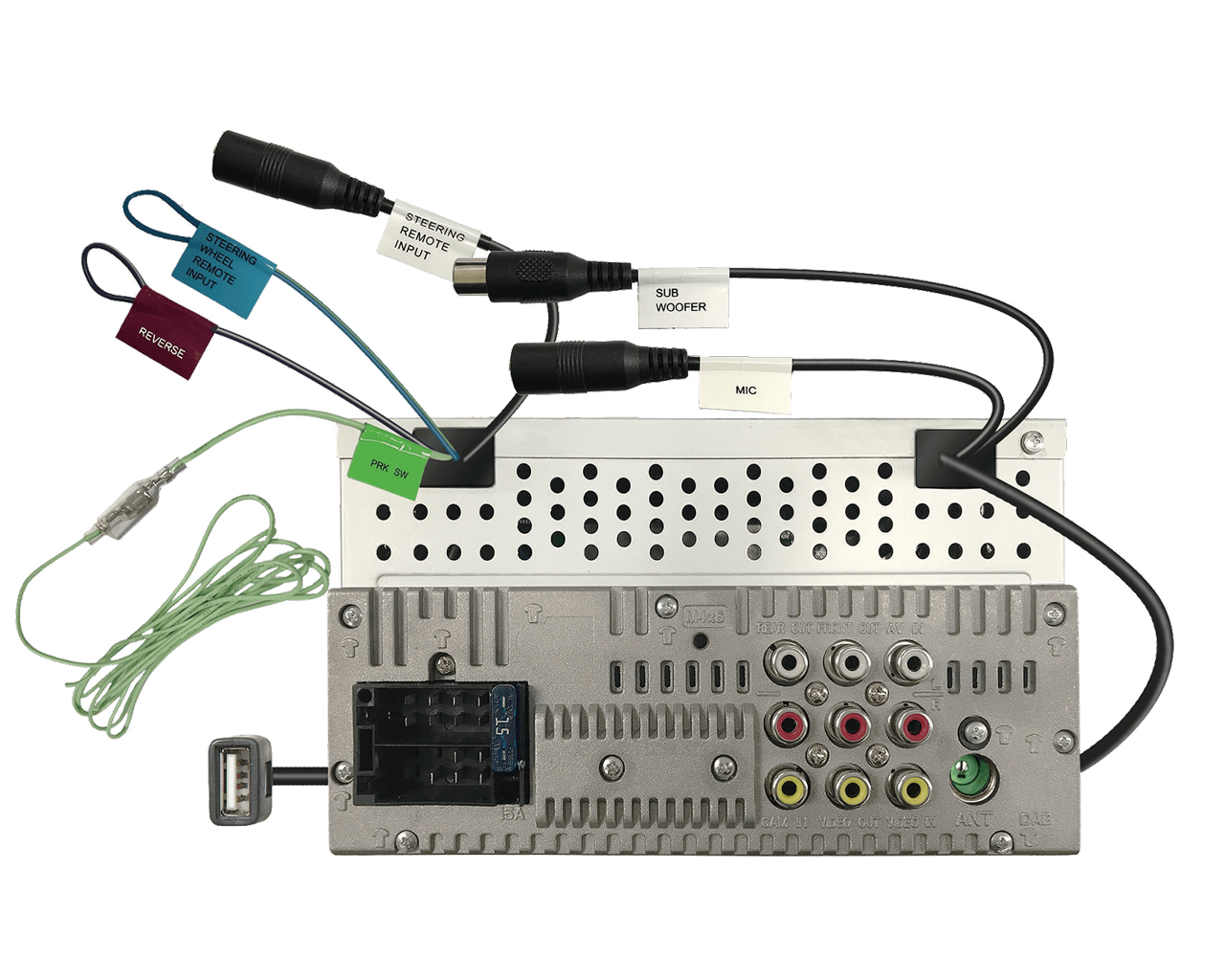

Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Bluetooth profiles | A2DP, AVRCP, PBAP |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB connector type | USB Type-A |
| USB port position | Rear |
| Apple CarPlay support | Yes |
| AV input | Yes |
| AV output | Yes |
| Pre out port | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 20 |
| Supported radio bands | FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
